Performance of Nano-Silica Insulation Material Enhanced by High Humidity-Reinforcement Method

Abstract:

In this paper, fumed nano-silica as the main raw material, nano-silica insulation materials were prepared by the dry processing. Research on humidity-reinforcement of nano-Silica insulation materials has been carried out and analyzed. When hygroscopicity of samples reach to 23%, the compressive strength 1.65MPa is at twice the one without high humidity-reinforcement, while the thermal conductivities are almost the same. Then, the action mechanism of high humidity-reinforcement method was analyzed. In humidity-reinforcement method, as vapor enters, silica sol is formed in the gap between one aggregate particle and another, and various condensation polymerization occurred in the drying process, which lead to aggregates connection and compressive strength improvement.

You might also be interested in these eBooks

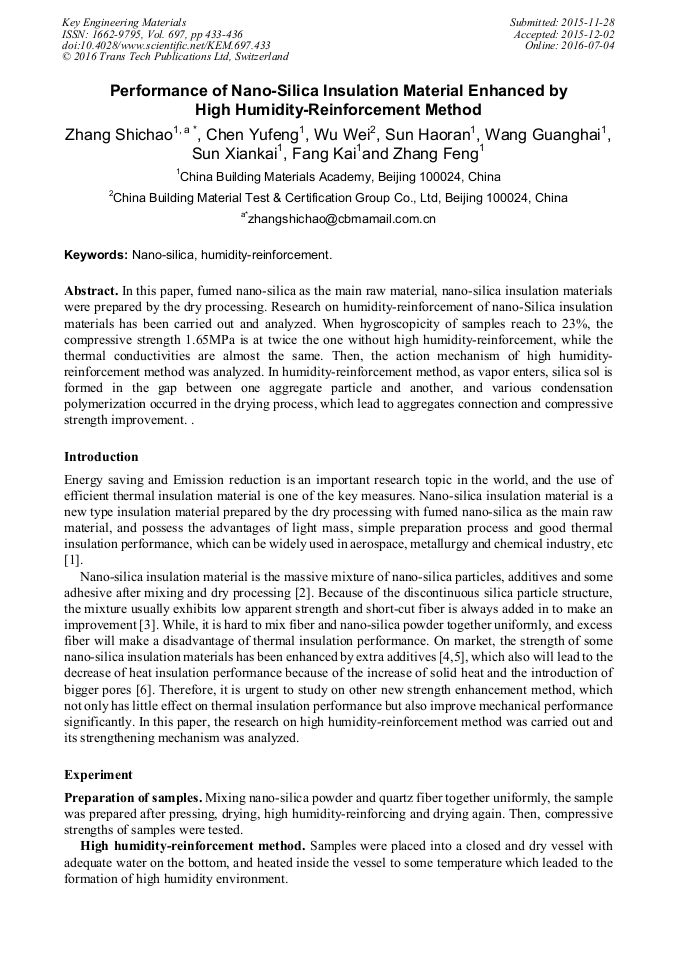

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 697)

Pages:

433-436

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.697.433

Citation:

Cite this paper

Online since:

July 2016

Authors:

S.C. Zhang*, Yu Feng Chen, Wei Wu, H.R. Sun, Guang Hai Wang, Xian Kai Sun, Kai Fang, Feng Zhang

Keywords:

Humidity-Reinforcement, Nanosilica

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] X.Z. Gao, Properties of Silica Nanoporous Thermal Insulating Materials (2009).

Google Scholar

[2] H. Abe, I. Abe, K. Sato, et al, Dry Powder processing of fibrous fumed silica compacts for thermal insulation, J. C. Soc. 88 (2005) 1359-1361.

DOI: 10.1111/j.1551-2916.2005.00317.x

Google Scholar

[3] D.R. Smith, J.G. Hust, U.S. Patent NISTIR 89-390 (1989).

Google Scholar

[4] D.L. Leeser, C. Blair, B.R. Betty, Patent WO2006074463 A2 (2006).

Google Scholar

[5] G. Herrmann, R. Iden, M. Mielke, et al, On the way to commercial production of silica aerogel, J. Non-Cryst. Solids. 186 (1995) 380-387.

DOI: 10.1016/0022-3093(95)90076-4

Google Scholar

[6] Q.F. Gao, C.R. Zhang, J. Feng, et al, Progress of Silica Aerogel Insulation Composites, J. Mater. Sci. Eng. 27 (2009) 302-306.

Google Scholar

[7] H.K. Yang, Surface Modification of The Ultrafine Fumed Silica, New Chem. Mater. 27 (2001) 8-12.

Google Scholar

[8] X.Y. Ni, J. Shen, Z.H. Zhang, Physical and chemical properties and applications of nano materials, seven ed., Chemical Industry Press, Beijing, (2006).

Google Scholar
