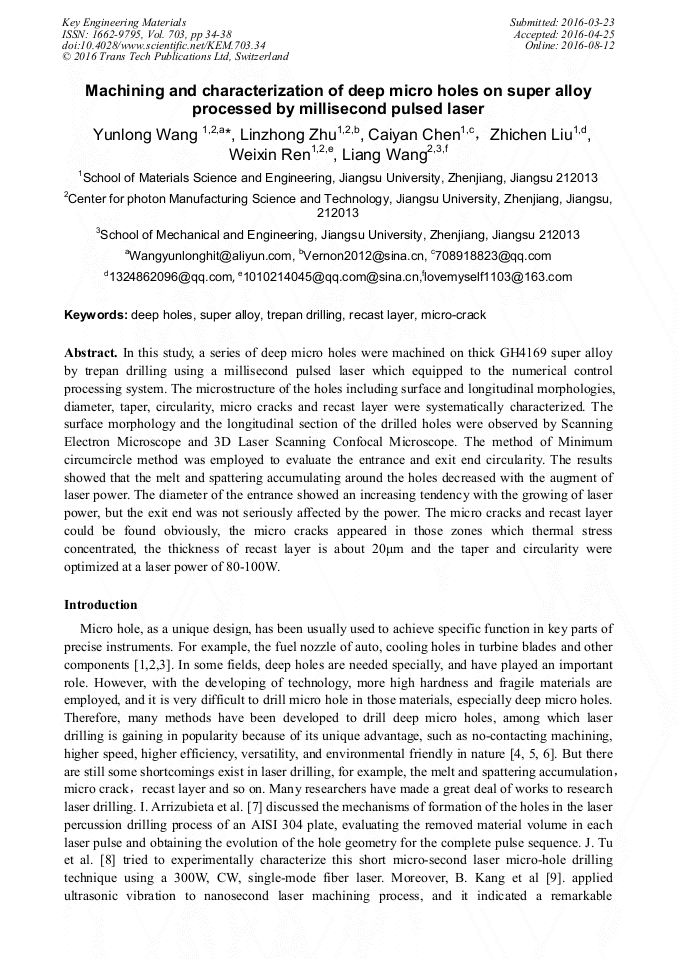

Machining and Characterization of Deep Micro Holes on Super Alloy Processed by Millisecond Pulsed Laser

Abstract:

In this study, a series of deep micro holes were machined on thick GH4169 super alloy by the trepan drilling, using a millisecond pulsed laser which equipped to the numerical control processing system. The microstructure of the holes including surface and longitudinal morphologies, diameter, taper, circularity, micro cracks and recast layer were systematically characterized. The surface morphology and the longitudinal section of the drilled holes were observed by Scanning Electron Microscope and 3D Laser Scanning Confocal Microscope. The method of Minimum circumcircle method was employed to evaluate the entrance and exit end circularity. The results showed that the melt and spattering accumulating around the holes decreased with the augment of laser power. The diameter of the entrance showed an increasing tendency with the growing of laser power, but the exit end was not seriously affected by the power. The micro cracks and recast layer could be found obviously, the micro cracks appeared in those zones which thermal stress concentrated, the thickness of recast layer is about 20μm and the taper and circularity were optimized at a laser power of 80-100W.

• Periodical: Key Engineering Materials (Volume 703)
• Pages: 34-38
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.703.34
• Online since: August 2016
• Authors: Yun Long Wang*, Lin Zhong Zhu, Cai Yan Chen, Zhi Chen Liu, Wei Xin Ren, Liang Wang
• Keywords: Deep Hole, Micro-Crack, Recast Layer, Super Alloy, Trepan Drilling

References

[1] X.Y. Wang, G.K.L. Ng, Z. Liu, L. Li, L. Bradley, EPMA microanalysis of recast layers produced during laser drilling of type 305 stainless steel, Thin Solid Films. 453 (2004) 84-88.

DOI: 10.1016/j.tsf.2003.11.158

[2] K.M. Jacquelynn Garofano, H. L. Marcus, M. Aindow, Nanoscale carbide precipitation in the recast layer of a percussion laser-drilled superalloy, Scripta. Mater. 61 (2009) 943-946.

DOI: 10.1016/j.scriptamat.2009.07.034

[3] C.Y. Yeo, S.C. Tam, S. Jana, M.W.S. Lau, A technical review of the laser drilling of aerospace materials, J. Mater. Process. Technol. 42 (1994) 15-49.

DOI: 10.1016/0924-0136(94)90073-6

[4] S. Tosto, Modeling and com puter simulation of pulsed-laser induced ablation, Appl. Phys. A. 68 (2002) 439-446.

[5] R. Goyal, A. K. Dubey, Quality improvement by parameter optimization in laser trepan drilling of superalloy sheet, Mater. Manuf. Processes. 29 (2014) 1410-1416.

DOI: 10.1080/10426914.2014.912313

[6] G.K.L. Ng, L. Li, The effect of laser peak power and pulse width on the hole geometry repeatability in laser percussion drilling, Opt. Laser. Technol. 33(2001) 393-402.

DOI: 10.1016/s0030-3992(01)00048-2

[7] I. Arrizubieta, A. Lamikiz, S. Martínez, E. Ukar, I. Tabernero, F. Girot, Internal characterization and hole formation mechanism in the laser percussion drilling process, Int. J. Mach. Tool. Manu. 75 (2013) 55–62.

DOI: 10.1016/j.ijmachtools.2013.08.004

[8] J. Tu, A. G. Paleocrassas, N. Reeves, N. Rajule, Experimental characterization of a micro-hole drilling process with short micro-second pulses by a CW single-mode fiber laser, Opt. Laser. Eng. 55 (2014) 275–283.

DOI: 10.1016/j.optlaseng.2013.11.002

[9] B. Kang, G. W. Kim, M.Y. Yang, S.H. Cho, J.K. Park, A study on the effect of ultrasonic vibration in nanosecond laser machining, Opt. Laser. Eng. 50 (2012) 1817-1822.

DOI: 10.1016/j.optlaseng.2012.06.013

[10] R. Goyal, A. K. Dubey, Quality Improvement by Parameter Optimization in Laser Trepan drilling of Superalloy Sheet, Mater. Manuf. Processes. 29 (2014)1410-1416.

DOI: 10.1080/10426914.2014.912313

[11] B.S. Yilbas, Parametric study to improve laser hole drilling process, J. Mater. Process. Technol. 70 (1997) 264-273.

DOI: 10.1016/s0924-0136(97)00076-9

[12] W.T. Chien, S.C. Hou, Investigating the recast layer formed during the laser trepan drilling of Inconel 718 using the Taguchi method, Int. J. Adv. Manuf. Tech. 33(2007) 308-316.

DOI: 10.1007/s00170-006-0454-1
