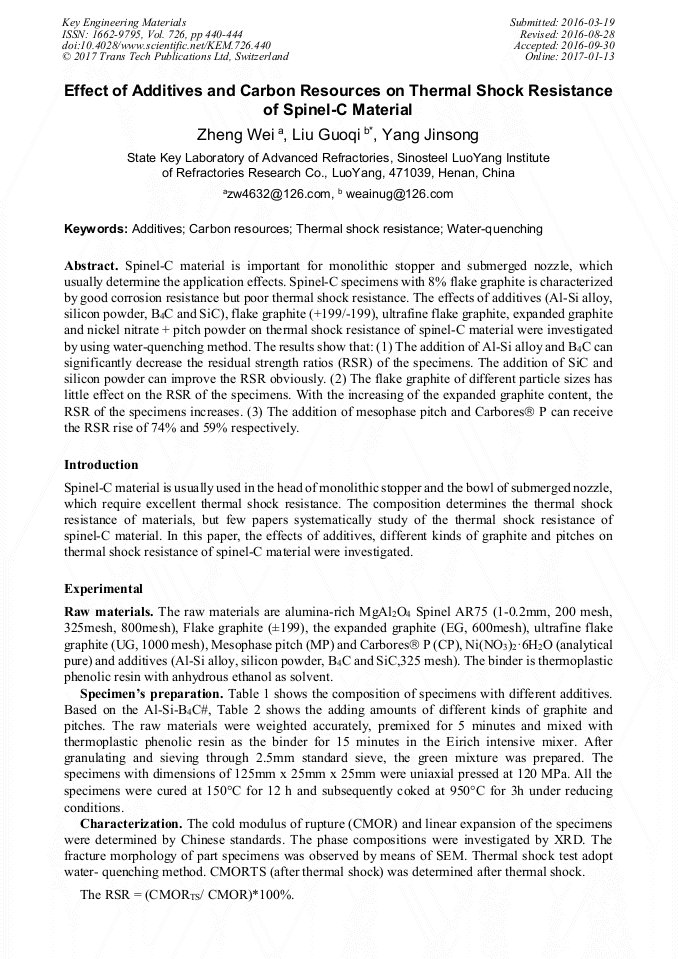

Effect of Additives and Carbon Resources on Thermal Shock Resistance of Spinel-C Material

Abstract:

Spinel-C material is important for monolithic stopper and submerged nozzle, which usually determine the application effects. Spinel-C specimens with 8% flake graphite is characterized by good corrosion resistance but poor thermal shock resistance. The effects of additives (Al-Si alloy, silicon powder, B₄C and SiC), flake graphite (+199/-199), ultrafine flake graphite, expanded graphite and nickel nitrate + pitch powder on thermal shock resistance of spinel-C material were investigated by using water-quenching method. The results show that: (1) The addition of Al-Si alloy and B₄C can significantly decrease the residual strength ratios (RSR) of the specimens. The addition of SiC and silicon powder can improve the RSR obviously. (2) The flake graphite of different particle sizes has little effect on the RSR of the specimens. With the increasing of the expanded graphite content, the RSR of the specimens increases. (3) The addition of mesophase pitch and Carboresâ P can receive the RSR rise of 74% and 59% respectively.

• Periodical: Key Engineering Materials (Volume 726)
• Pages: 440-444
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.726.440
• Online since: January 2017
• Authors: Zheng Wei, Guo Qi Liu*, Jin Song Yang
• Keywords: Additives, Carbon Resources, Thermal Shock Resistance, Water-Quenching

References

[1] Li XM, Fan JM, Zhao HQ, Effect of boron carbide on properties of aluminum carbon and zirconium carbon nozzle, in: Li DY, Applied technology of auxiliary material for steelmaking, Metallurgy Industry Press. Peking, 2003. pp.35-36.

[2] Sun Y, Yu JK, Effect of B4C and SiC additives on properties of alumina carbon refractories, J. Refractories. 41 (2007) 156-158.

[3] Liu DY, Xu N, Study on the oxidation of boron in silicate glass, J. East china science & technology. 2013: 472-472.

[4] Wang JZ, Zhao JX, Zhang HX, Effect of carbon resources on properties and microstructure of Al2O3-C materials, J. Bulletin of the Chinese ceramic society. 32 (2013) 844-846+851.

[5] Zhu TB, Li YW, Sang SB, Effect of expanded graphite on microstructure and properties of MgO-C refractories, J. Bulletin of the Chinese ceramic society. 34 (2015) 2436-2441.

[6] Zhang XS, Cheng Y, Shui HF, Mesophase pitch-phenolic resin binder for MgO-C brick, J. Refractories. 41 (2007) 271-273.

[7] Li SQ, Zhao L, Li YW, Newly-developed carbonaceous binder for carbon-containing refractories: a comparative analysis, J. Journal of wuhan university of science and technology. 30 (2007) 484-487.
