Development of Pitting Corrosion Monitoring Device under Sodium Chloride Droplet by Means of Wet-Dry Cyclic Method

Wongpat Banthukul; Namurata Sathirachinda Palsson; Ekkarut Viyanit; Aphichart Rodchanarowan

doi:10.4028/www.scientific.net/KEM.751.107

Paper Titles

Structural Characterization of Reactive DC Magnetron Co-Sputtered Nanocrystalline CrAlN Thin Film
p.84

Solid Particle Erosion Resistance of Thermal Sprayed Nickel Alloy Coating
p.88

Sintered Metal Microstructure Influenced by Deep Rolling and Carburizing Processes
p.96

Corrosion Behavior of Al-Zn-In Sacrificial Anode Alloys Produced by Conventional Casting and Semi-Solid Metal Casting Processes
p.101

Development of Pitting Corrosion Monitoring Device under Sodium Chloride Droplet by Means of Wet-Dry Cyclic Method
p.107

Improvement of Structural, Morphological and Mechanical Properties of CrN_x Sputtered Thin Films by Vacuum Annealing Process
p.113

Study of Microstructure and Corrosion Resistance of Zinc Electrodeposits before and after Black Chromating
p.119

Factors Affecting on the Corrosion Resistance of Electroless Ni-Zn-P Coated Steel
p.125

Effect of Post-Curing Temperature and Mechanical Surface Treatment on Shear-Bond Strength of Asbestos-Free Brake Pad
p.131

HomeKey Engineering MaterialsKey Engineering Materials Vol. 751Development of Pitting Corrosion Monitoring Device...

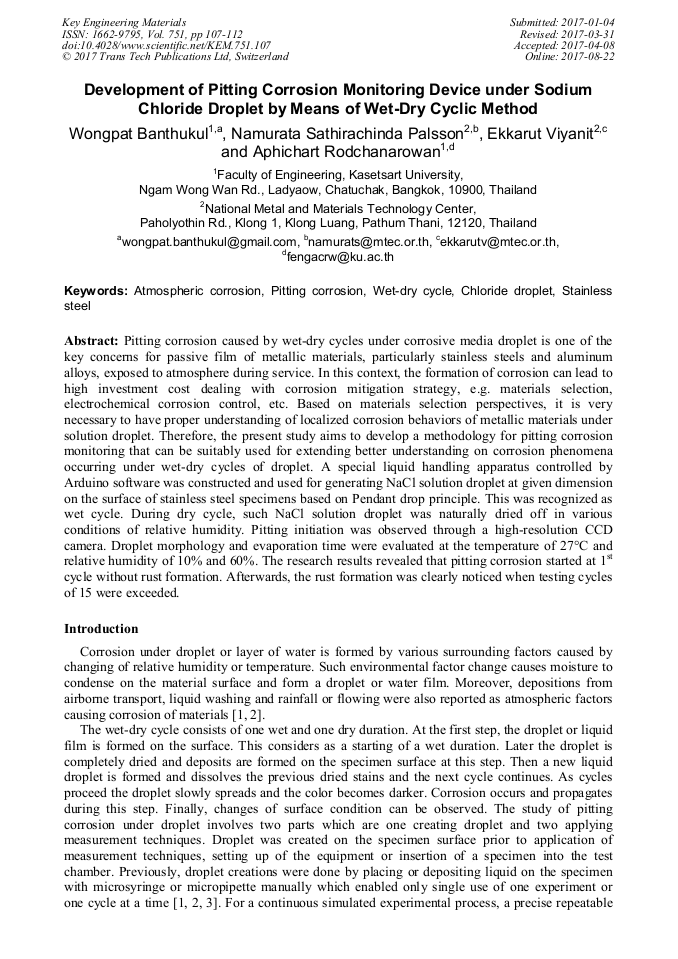

Development of Pitting Corrosion Monitoring Device under Sodium Chloride Droplet by Means of Wet-Dry Cyclic Method

Abstract:

Pitting corrosion caused by wet-dry cycles under corrosive media droplet is one of the key concerns for passive film of metallic materials, particularly stainless steels and aluminum alloys, exposed to atmosphere during service. In this context, the formation of corrosion can lead to high investment cost dealing with corrosion mitigation strategy, e.g. materials selection, electrochemical corrosion control, etc. Based on materials selection perspectives, it is very necessary to have proper understanding of localized corrosion behaviors of metallic materials under solution droplet. Therefore, the present study aims to develop a methodology for pitting corrosion monitoring that can be suitably used for extending better understanding on corrosion phenomena occurring under wet-dry cycles of droplet. A special liquid handling apparatus controlled by Arduino software was constructed and used for generating NaCl solution droplet at given dimension on the surface of stainless steel specimens based on Pendant drop principle. This was recognized as wet cycle. During dry cycle, such NaCl solution droplet was naturally dried off in various conditions of relative humidity. Pitting initiation was observed through a high-resolution CCD camera. Droplet morphology and evaporation time were evaluated at the temperature of 27°C and relative humidity of 10% and 60%. The research results revealed that pitting corrosion started at 1^st cycle without rust formation. Afterwards, the rust formation was clearly noticed when testing cycles of 15 were exceeded.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 751)

Pages:

107-112

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.751.107

Citation:

Cite this paper

Online since:

August 2017

Authors:

Wongpat Banthukul, Namurata Sathirachinda Palsson*, Ekkarut Viyanit, Aphichart Rodchanarowan

Keywords:

Atmospheric Corrosion, Chloride Droplet, Pitting Corrosion, Stainless Steel, Wet-Dry Cycle

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Tsutsumi, A. Nishikata and T. Tsuru, Pitting Corrosion Mechanism of Type 304 Stainless Steel Under a Droplet of Chloride Solutions, Corrosion Science 49 (2007) 1394-1407.

DOI: 10.1016/j.corsci.2006.08.016

Google Scholar

[2] S. Hastuty, A. Nishikata and T. Tsuru, Pitting Corrosion of Type 430 Stainless Steel Under Chloride Solution Droplet, Corrosion Science 52 (2010) 2035-(2043).

DOI: 10.1016/j.corsci.2010.02.031

Google Scholar

[3] B. Maier and G.S. Frankel, Pitting Corrosion of Bare Stainless Steel 304 under Chloride Solution Droplets, Journal of The Electrochemical Society, 157 (10) 302-312 (2010).

DOI: 10.1149/1.3467850

Google Scholar

[4] F.K. Hansen and G. Rodsrud, Surface Tension by Pendant Drop I. A Fast Standard Instrument Using Computer Image Analysis, Journal of Colloid and Inter JA Science, Vol. 141 (1), Jan (1991).

Google Scholar

[5] P. Wang, D. Zhang, Z. Lu, Advantage of Super-hydrophobic Surface as a Barrier against Atmospheric Corrosion Induced by Salt Deliquescence, Corrosion Science 90 (2015) 23-32.

DOI: 10.1016/j.corsci.2014.09.001

Google Scholar

[6] P. Ernst, R. C. Newman, Pit Growth Studies in Stainless Steel Foils. I. Introduction and Pit Growth Kinetics, Corrosion Science 44 (2002) 927-941.

DOI: 10.1016/s0010-938x(01)00133-0

Google Scholar

[7] T. Tsuru, K. Tamiya and A. Nishikata, Formation and Growth of Micro-Droplets during the Initial Stage of Atmospheric Corrosion, Electrochimica Acta 49 (2004) 2709–2715.

DOI: 10.1016/j.electacta.2004.01.032

Google Scholar

[8] T. Van Nam, E. Tada and A. Nishikata, Pitting Corrosion of Stainless Steel 430 in the Presence of Thin MgCl2 Solution Films: Effects of Film Diameter and Thickness, Materials Transactions, Vol. 56, No. 8 (2015) p.1219 to 1225.

DOI: 10.2320/matertrans.m2015099

Google Scholar

[9] E. Schindelholz, B. E. Risteen, and R. G. Kelly, Effect of Relative Humidity on Corrosion of Steel under Sea Salt Aerosol, Journal of The Electrochemical Society, 161 (10) C450-C459 (2014).

DOI: 10.1149/2.0221410jes

Google Scholar

[10] M. Farid, A New Approach to Modelling of Single Droplet Drying, Chemical Engineering Science 58 (2003) 2985-2993.

DOI: 10.1016/s0009-2509(03)00161-1

Google Scholar
