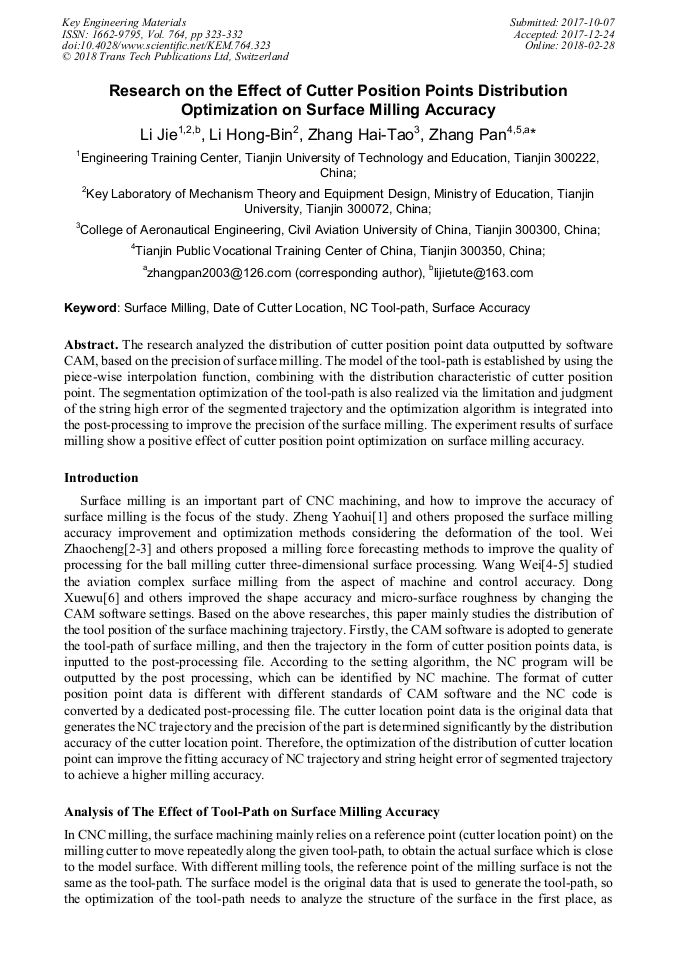

Research on the Effect of Cutter Position Points Distribution Optimization on Surface Milling Accuracy

Abstract:

The research analyzed the distribution of cutter position point data outputted by software CAM, based on the precision of surface milling. The model of the tool-path is established by using the piece-wise interpolation function, combining with the distribution characteristic of cutter position point. The segmentation optimization of the tool-path is also realized via the limitation and judgment of the string high error of the segmented trajectory and the optimization algorithm is integrated into the post-processing to improve the precision of the surface milling. The experiment results of surface milling show a positive effect of cutter position point optimization on surface milling accuracy.
