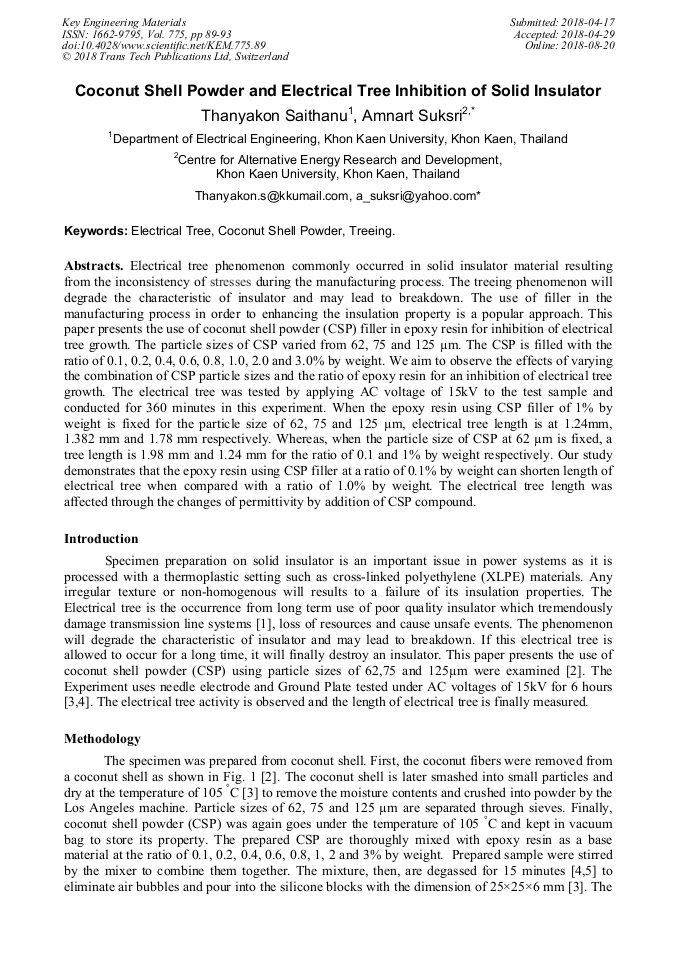

Coconut Shell Powder and Electrical Tree Inhibition of Solid Insulator

Abstract:

Electrical tree phenomenon commonly occurred in solid insulator material resulting from the inconsistency of stresses during the manufacturing process. The treeing phenomenon will degrade the characteristic of insulator and may lead to breakdown. The use of filler in the manufacturing process in order to enhancing the insulation property is a popular approach. This paper presents the use of coconut shell powder (CSP) filler in epoxy resin for inhibition of electrical tree growth. The particle sizes of CSP varied from 62, 75 and 125 µm. The CSP is filled with the ratio of 0.1, 0.2, 0.4, 0.6, 0.8, 1.0, 2.0 and 3.0% by weight. We aim to observe the effects of varying the combination of CSP particle sizes and the ratio of epoxy resin for an inhibition of electrical tree growth. The electrical tree was tested by applying AC voltage of 15kV to the test sample and conducted for 360 minutes in this experiment. When the epoxy resin using CSP filler of 1% by weight is fixed for the particle size of 62, 75 and 125 µm, electrical tree length is at 1.24mm, 1.382 mm and 1.78 mm respectively. Whereas, when the particle size of CSP at 62 µm is fixed, a tree length is 1.98 mm and 1.24 mm for the ratio of 0.1 and 1% by weight respectively. Our study demonstrates that the epoxy resin using CSP filler at a ratio of 0.1% by weight can shorten length of electrical tree when compared with a ratio of 1.0% by weight. The electrical tree length was affected through the changes of permittivity by addition of CSP compound.

• Periodical: Key Engineering Materials (Volume 775)
• Pages: 89-93
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.775.89
• Online since: August 2018
• Authors: Thanyakon Saithanu, Amnart Suksri*
• Keywords: Coconut Shell Powder, Electrical Tree, Treeing

References

[1] Dissado LA, Fothergill JC. Electrical degradation and Breakdown in Polymers. Ed,G. C. Stevens, Peter Peregrines, London;(1992).

[2] T. Saithanu, A.Suksri, A Study on Coconut Shell Powder Filled in Epoxy Resin: A Remedy for Electrical Tree Growth Inhibition, Key Engineering Materials, Vol. 718, pp.36-39, (2017).

DOI: 10.4028/www.scientific.net/kem.718.36

[3] ASTM D 3756-97, Standard Test Method for Evaluation of Resistance to Electrical Breakdown by Treeing in Solid Dielectric Materials Using Diverging Fields. 2010. pp.1-6.

DOI: 10.1520/d3756-18

[4] Ahmad MH, Ahmad H, Arief YZ, Kurnianto R. Effects of Oil Palm Shell Filler on Inception and Propagation of Electrical Treeing in Silicone Rubber Composite Material Under AC Voltage. International Review on Modelling and Simulations (IREMOS), Praise Worthy Prize; 2011.pp.653-660.

DOI: 10.1109/iceei.2011.6021510

[5] Ahmad MH, Ahmad H, Bashir N, Dolmat MF, Arief YZ, Malek ZA, Jamil AAA. Effects of oil palm empty fruit bunch filler on electrical tree propagation in Epoxy resin. in 2012 International Conference on High Voltage Engineering and Application; 2012, p.203.

DOI: 10.1109/ichve.2012.6357076

[6] Ahmad MH, Ahmad H, Bashir N, Arief YZ, Kurnianto R, Yusof F, Abdul-Malek Z, Darus A. A New Statistical Ranking of Tree Inception Voltage Distribution of silicone rubber and epoxy resin under AC voltage excitation. International Review of Electrical Engineering, Praise Worthy Prize;(2011).

DOI: 10.1109/iceei.2011.6021510

[7] Zheng XQ, Chen G. Propagation mechanism of electrical tree in XLPE cable insulation by investigating a double electrical tree structure. IEEE Trans. Dielectrics and Electrical Insulation; 2008. pp.800-807.

DOI: 10.1109/tdei.2008.4543118

[8] Singha S, Joy Thomas M. Dielectric Properties of epoxy resin nanocomposites. IEEE Trans. Dielectr. Electr. Insul.; 2008. p.12–23.

DOI: 10.1109/t-dei.2008.4446732

[9] Kurnianto R, Murakami Y, Hozumi N, Nagao M, Murata Y. Some Fundamental on Treeing Breakdown in Inorganic-filler/LDPE Nano-composite Material.2006 Annual Report Conference on Electrical Insulation and Dielectric Phenomena(CEIDP), Kansas City, MO; 2006. pp.373-376.

DOI: 10.1109/ceidp.2006.311947

[10] Ahmad MH, Jamil AAA, Ahmad H, Piah MAM, Darus A, Arief YZ, Bashir N. Oil Palm Empty FruitBunch as A New Organic Filler for Electrical Tree Inhibition. Proceeding of World Academy of Science, Engineering and Technology 62; 2012.pp.335-340.

DOI: 10.1109/ichve.2012.6357076

[11] Hosier L, Freebody A,Vaughan A, Swingler SG, Moss G. Electrical Treeing in Silicone Rubber. 2011.p.898–901.
