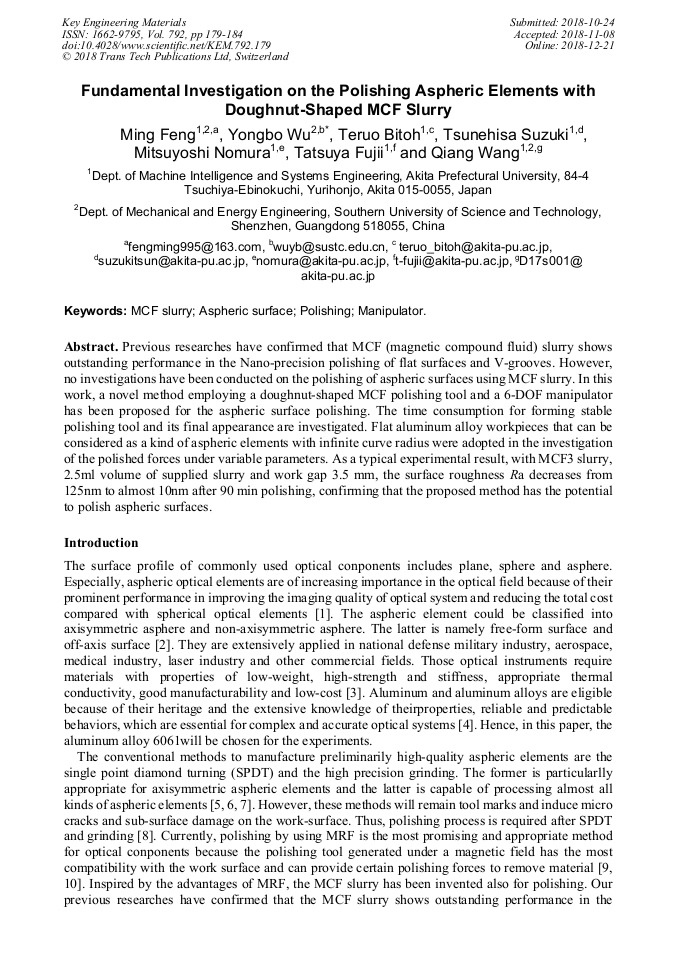

Fundamental Investigation on the Polishing Aspheric Elements with Doughnut-Shaped MCF Slurry

Ming Feng; Yong Bo Wu; Teruo Bitoh; Tsunehisa Suzuki; Mitsuyoshi Nomura; Tatsuya Fujii; Qiang Wang

doi:10.4028/www.scientific.net/KEM.792.179

Paper Titles

Computational Study of Perovskite Structured CH₃NH₃PbI₃ and CH₃NH₃SnI₃
p.145

Mechanical Behaviour for Connection of Cold-Formed Steel Channel Section with Intermediate Web Stiffener
p.153

Strength of Axially Loaded Concrete Filled Steel Tube Elements of Self-Stressing Concrete
p.160

Adapting ANNs in SONREB Test to Estimate Concrete Compressive Strength
p.166

Experimental Investigation on the Tilt Helical Milling of Carbon Fiber Reinforced Plastics (CFRP)
p.173

Fundamental Investigation on the Polishing Aspheric Elements with Doughnut-Shaped MCF Slurry
p.179

Development of Apparatus for Evaluation of Wrinkles in Sheet Metal Forming Using Angle Beam Technique
p.185

The Characteristic of Two-Phase Flow Pattern on Air-Water Countercurrent Flow in Vertical Pipe
p.190

Performance Monitoring of Wood Construction Materials by Means of Integrated Sensors
p.195

HomeKey Engineering MaterialsKey Engineering Materials Vol. 792Fundamental Investigation on the Polishing...

Fundamental Investigation on the Polishing Aspheric Elements with Doughnut-Shaped MCF Slurry

Abstract:

Previous researches have confirmed that MCF (magnetic compound fluid) slurry shows outstanding performance in the nanoprecision polishing of flat surfaces and V-grooves. However, no investigations have been conducted on the polishing of aspheric surfaces using MCF slurry. In this work, a novel method employing a doughnut-shaped MCF polishing tool and a 6-DOF manipulator has been proposed for the aspheric surface polishing. The time consumption for forming stable polishing tool and its final appearance are investigated. Flat aluminum alloy workpieces that can be considered as a kind of aspheric elements with infinite curve radius were adopted in the investigation of the polished forces under variable parameters. As a typical experimental result, with MCF3 slurry, 2.5ml volume of supplied slurry and work gap 3.5 mm, the surface roughness Ra decreases from 125nm to almost 10nm after 90 min polishing, confirming that the proposed method has the potential to polish aspheric surfaces.
