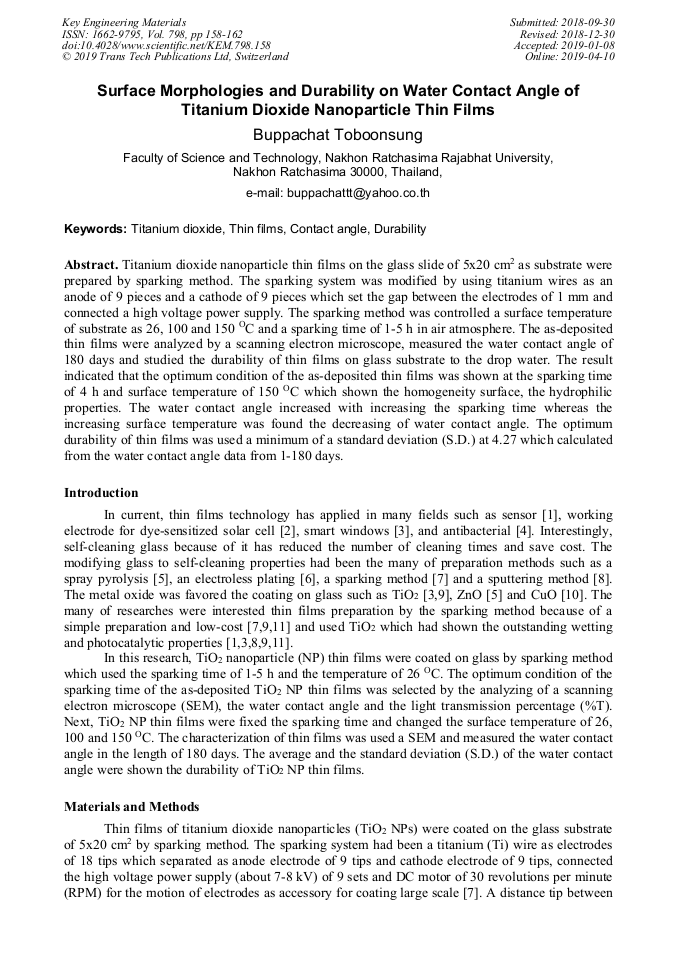

Surface Morphologies and Durability on Water Contact Angle of Titanium Dioxide Nanoparticle Thin Films

Abstract:

Titanium dioxide nanoparticle thin films on the glass slide of 5x20 cm² as substrate were prepared by sparking method. The sparking system was modified by using titanium wires as an anode of 9 pieces and a cathode of 9 pieces which set the gap between the electrodes of 1 mm and connected a high voltage power supply. The sparking method was controlled a surface temperature of substrate as 26, 100 and 150 ^OC and a sparking time of 1-5 h in air atmosphere. The as-deposited thin films were analyzed by a scanning electron microscope, measured the water contact angle of 180 days and studied the durability of thin films on glass substrate to the drop water. The result indicated that the optimum condition of the as-deposited thin films was shown at the sparking time of 4 h and surface temperature of 150 ^OC which shown the homogeneity surface, the hydrophilic properties. The water contact angle increased with increasing the sparking time whereas the increasing surface temperature was found the decreasing of water contact angle. The optimum durability of thin films was used a minimum of a standard deviation (S.D.) at 4.27 which calculated from the water contact angle data from 1-180 days.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 798)

Pages:

158-162

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.798.158

Citation:

Cite this paper

Online since:

April 2019

Authors:

Buppachat Toboonsung

Keywords:

Contact Angle, Durability, Thin Film, Titanium Dioxide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. Buso, M. Post, C. Cantalini, P. Mulvaney, A. Martucci, Gold-nanoparticle-doped TiO2 semiconductor thin films: gas sensing properties, Advanced Functional Materials, 18 (2008) 3843–3849.

DOI: 10.1002/adfm.200800864

Google Scholar

[2] M. H. Habibi, B. Karimi, M. Zendehdel, M. Habibi, Fabrication, characterization of two nano-composite CuO–ZnO working electrodes for dye-sensitized solar cell, Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, (116) (2013) 374-380.

DOI: 10.1016/j.saa.2013.07.046

Google Scholar

[3] S.R. Meher, L. Balakrishnan, Sol–gel derived nanocrystalline TiO2 thin films: A promising candidate for self-cleaning smart window applications, Materials Science in Semiconductor Processing, 26 (2014) 251-258.

DOI: 10.1016/j.mssp.2014.05.006

Google Scholar

[4] X. Wang, X. Hou, W. Luan, D. Li, K. Yao, The antibacterial and hydrophilic properties of silver-doped TiO2 thin films using sol–gel method, Applied Surface Science, 258 (2012) 8241–8246.

DOI: 10.1016/j.apsusc.2012.05.028

Google Scholar

[5] N.L. Tarwal, P.S. Patil, Superhydrophobic and transparent ZnO thin films synthesized by spray pyrolysis technique, Applied Surface Science, 256 (2010) 7451–7456.

DOI: 10.1016/j.apsusc.2010.05.089

Google Scholar

[6] X. Liu, Z. Jiang, Y. Guo, Z. Zhang, L. Ren, Fabrication of super-hydrophobic nano-sized copper films by electroless plating, Thin Solid Films, 518 (2010) 3731-3734.

DOI: 10.1016/j.tsf.2009.10.020

Google Scholar

[7] Y. Chuminjak, S. Daothong, P. Reanpang, J. P. Mensing, D. Phokharatkul, J. Jakmunee, A. Wisitsoraat, A. Tuantranontd, P. Singjai, Electrochemical energy-storage performances of nickel oxide films prepared by a sparking method, RSC Advances. 5 (2015) 67795-67802.

DOI: 10.1039/c5ra09408a

Google Scholar

[8] S. Nezar, N. Saoula, S. Sali, M. Faiz, M. Mekki, N. A. Laoufi, N. Tabet, Properties of TiO2 thin films deposited by rf reactive magnetron sputtering on biased substrates, Applied Surface Science, 395 (2017) 172-179.

DOI: 10.1016/j.apsusc.2016.08.125

Google Scholar

[9] B. Toboonsung, Electrical sheet resistance and wetting properties of TiO2 nanoparticle thin films prepared by sparking process, Applied Mechanics and Materials, 866 (2017) 313-317.

DOI: 10.4028/www.scientific.net/amm.866.313

Google Scholar

[10] X. Liu, Z. Jiang, J. Li, Z. Zhang, L. Ren, Super-hydrophobic property of nano-sized cupric oxide films, Surface and Coatings Technology, 204 (2010) 3200-3204.

DOI: 10.1016/j.surfcoat.2010.03.012

Google Scholar

[11] W. Thongsuwan, T. Kumpika, P. Singjai, Effect of high roughness on a long aging time of superhydrophilic TiO2 nanoparticle thin films, Current Applied. Physics, 11 (2011) 1237-1242.

DOI: 10.1016/j.cap.2011.03.002

Google Scholar
