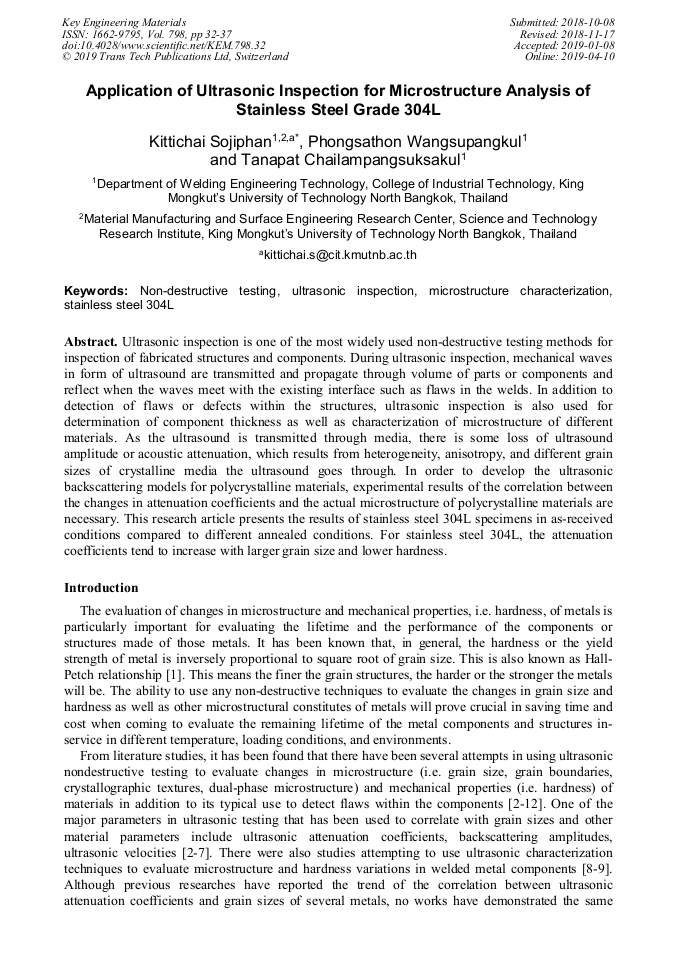

Application of Ultrasonic Inspection for Microstructure Analysis of Stainless Steel Grade 304L

Abstract:

Ultrasonic inspection is one of the most widely used non-destructive testing methods for inspection of fabricated structures and components. During ultrasonic inspection, mechanical waves in form of ultrasound are transmitted and propagate through volume of parts or components and reflect when the waves meet with the existing interface such as flaws in the welds. In addition to detection of flaws or defects within the structures, ultrasonic inspection is also used for determination of component thickness as well as characterization of microstructure of different materials. As the ultrasound is transmitted through media, the loss of ultrasound amplitude is referred to as acoustic attenuation. This attenuation effects greatly result from heterogeneity, anisotropy, and different grain sizes of crystalline media the ultrasound goes through. In order to develop the ultrasonic backscattering models for polycrystalline materials, experimental results of the correlation between the changes in attenuation coefficient and the actual microstructure of polycrystalline materials are necessary. This research article presents the preliminary results of this correlation study in stainless steel 304L specimens in as-received conditions compared with different annealed and heat-treated conditions. Such correlations of attenuation coefficient, hardness, and grain size will be used as baseline for future additional characterization technique such as electron backscattered diffraction to better understand the attenuation effects for textured polycrystalline materials.

• Periodical: Key Engineering Materials (Volume 798)
• Pages: 32-37
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.798.32
• Online since: April 2019
• Authors: Kittichai Sojiphan*, Phongsathon Wangsupangkul, Tanapat Chailampangsuksakul
• Keywords: Microstructure Characterization, Non-Destructive Testing, Stainless Steel 304L, Ultrasonic Inspection

References

[1] W.D. Callister, D.G. Rethwisch, Materials Science and Engineering: An Introduction, 9th edition, Wiley, New Jersey, USA. (2014).

[2] K. Vijayalakshmi, V. Muthupandi, R. Jayachitra, Influence of heat treatment on the microstructure, ultrasonic attenuation and hardness of SAF 2205 duplex stainless steel, Materials Science and Engineering A. 529 (2011) 447-451.

DOI: 10.1016/j.msea.2011.09.059

[3] A. Badidi Bouda, S. Lebaili, A. Benchaala, Grain size influence on ultrasonic velocities and attenuation, NDT&E International. 36 (2003) 1-5.

DOI: 10.1016/s0963-8695(02)00043-9

[4] J. Li, L. Yang, S.I. Rokhlin, Effect of texture and grain shape on ultrasonic backscattering in polycrystals, Ultrasonics. 54 (2014) 1789-1803.

DOI: 10.1016/j.ultras.2014.02.020

[5] X. Li, Y. Song, F. Liu, H. Hu, P. Ni, Evaluation of mean grain size using the multi-scale attenuation coefficient. NDT&E International. 72 (2015) 25-32.

DOI: 10.1016/j.ndteint.2015.02.002

[6] B. Lan, M. Lowe, F.P.E. Dunne, Experimental and computational studies of ultrasound wave propagation in hexagonal close-packed polycrystals for texture detection, Acta Materialia. 63 (2014) 107-122.

DOI: 10.1016/j.actamat.2013.10.012

[7] M. Ploix, P. Guy, B. Chassignole, J. Moysan, G. Corneloup, R. El Guerjouma, Measurement of ultrasonic scattering attenuation in austenitic stainless steel welds: Realistic input data for NDT numerical modeling, Ultrasonics. 54 (2014) 1729-1736.

DOI: 10.1016/j.ultras.2014.04.005

[8] A. Ruiz, K.J. Fuentes-Corona, V.H. Lopez, C.A. Leon, Microstructure and ultrasonic characterization of 2101 lean duplex stainless steel welded joint, Applied Acoustics. 117 (2017) 12-19.

DOI: 10.1016/j.apacoust.2016.10.018

[9] B. Vargas-Arista, A. Balvantin, A. Baltazar, F. Garcia-Vazquez, On the use of ultrasonic spectral analysis for the characterization of artificially degraded API 5L X52 steel pipeline welded joints, Materials Science and Engineering A. 550 (2012) 227-234.

DOI: 10.1016/j.msea.2012.04.064

[10] A. Ruiz, N. Ortiz, H. Carreon, C. Rubio, Utilization of ultrasonic measurement for determining the variations in microstructure of thermally degraded 2205 duplex stainless steel, Journal of Nondestructive Evaluation. 28 (2009) 131-139.

DOI: 10.1007/s10921-009-0055-7

[11] A. Kumar, T. Jayakumar, B. Raj, Ultrasonic spectral analysis for microstructural characterization of austenitic and ferritic steels, Philosophical Magazine A. 80 (2000) 2469-2487.

DOI: 10.1080/01418610008216486

[12] P. Preedawiphat, A. Prateepasen, M. Noipitak, Influence of grain size and rolling direction on stress measurement by ultrasonic surface wave (part 2), Advanced Materials Research. 717 (2013) 221-226.

DOI: 10.4028/www.scientific.net/amr.717.221
