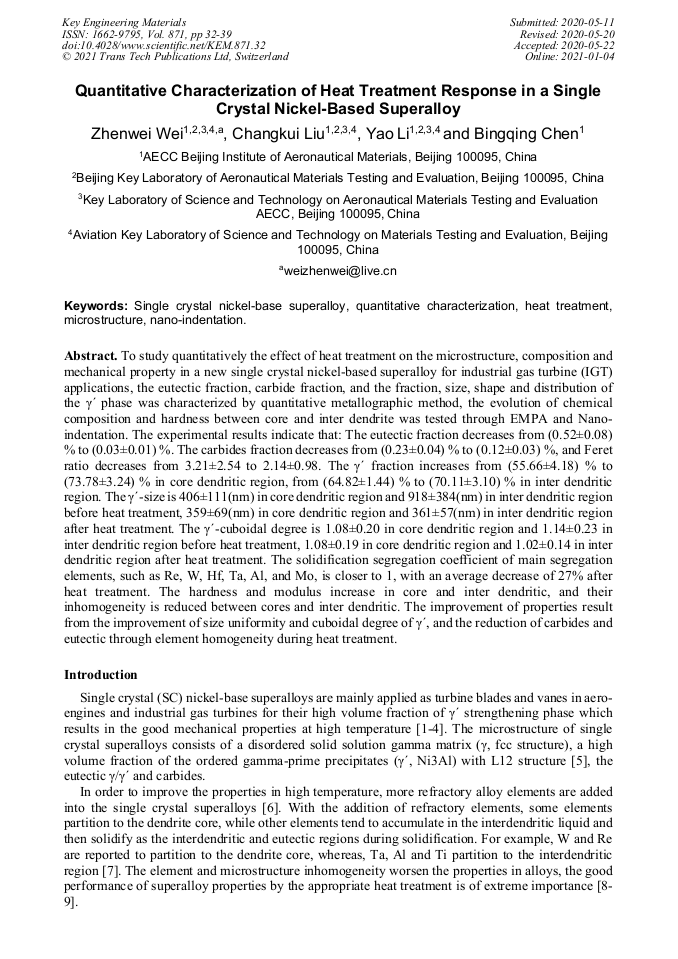

Quantitative Characterization of Heat Treatment Response in a Single Crystal Nickel-Based Superalloy

Abstract:

To study quantitatively the effect of heat treatment on the microstructure, composition and mechanical property in a new single crystal nickel-based superalloy for industrial gas turbine (IGT) applications, the eutectic fraction, carbide fraction, and the fraction, size, shape and distribution of the γ ́ phase was characterized by quantitative metallographic method, the evolution of chemical composition and hardness between core and inter dendrite was tested through EMPA and nanoindentation. The experimental results indicate that: The eutectic fraction decreases from (0.52±0.08) % to (0.03±0.01) %. The carbides fraction decreases from (0.23±0.04) % to (0.12±0.03) %, and Feret ratio decreases from 3.21±2.54 to 2.14±0.98. The γ ́ fraction increases from (55.66±4.18) % to (73.78±3.24) % in core dendritic region, from (64.82±1.44) % to (70.11±3.10) % in inter dendritic region. The γ ́-size is 406±111(nm) in core dendritic region and 918±384(nm) in inter dendritic region before heat treatment, 359±69(nm) in core dendritic region and 361±57(nm) in inter dendritic region after heat treatment. The γ ́-cuboidal degree is 1.08±0.20 in core dendritic region and 1.14±0.23 in inter dendritic region before heat treatment, 1.08±0.19 in core dendritic region and 1.02±0.14 in inter dendritic region after heat treatment. The solidification segregation coefficient of main segregation elements, such as Re, W, Hf, Ta, Al, and Mo, is closer to 1, with an average decrease of 27% after heat treatment. The hardness and modulus increase in core and inter dendritic, and their inhomogeneity is reduced between cores and inter dendritic. The improvement of properties result from the improvement of size uniformity and cuboidal degree of γ ́, and the reduction of carbides and eutectic through element homogeneity during heat treatment. The solidification segregation coefficient of main segregation elements, such as Re, W, Hf, Ta, Al, and Mo, is closer to 1, with an average decrease of 27% after heat treatment. With the addition of refractory elements, some elements partition to the dendrite core, while other elements tend to accumulate in the interdendritic liquid and then solidify as the interdendritic and eutectic regions during solidification. The hardness and modulus increase in core and inter dendritic, and their inhomogeneity is reduced between cores and inter dendritic. The improvement of properties result from the improvement of size uniformity and cuboidal degree of γ ́, and the reduction of carbides and eutectic through element homogeneity during heat treatment.

• Periodical: Key Engineering Materials (Volume 871)
• Pages: 32-39
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.871.32
• Online since: January 2021
• Authors: Zhen Wei Wei*, Chang Kui Liu, Yao Li, Bing Qing Chen
• Keywords: Heat Treatment, Microstructure, Nanoindentation, Quantitative Characterization, Single Crystal Nickel-Base Superalloy

References

[1] M. Zietara, S. Neumeier, M. Göken, et al. Characterization of γ and γ' Phases in 2nd and 4th Generation Single Crystal Nickel-Base Superalloys, Met. Mater. Int.23 (2017) 126-131.

DOI: 10.1007/s12540-017-6109-y

[2] J.GUO, Z.Y. LIU. Effect of Heat Treatment on Residual Eutectic and Mechanical Property of DZ408 Alloy, Fail. Anal. Prev. 13 (2018) 78-82, 123.

[3] S.G. Tian, X. Ding, Z.G. Guo, et al. Damage and fracture mechanism of a nickel-based single crystal superalloy during creep at moderate temperature, Mat. Sci. Eng. A. 594 (2014) 7-16.

DOI: 10.1016/j.msea.2013.11.049

[4] F.L. DIAO, H. CHEN, Y.F. LI, et al. Study on Grain Boundary Extraction of Alloy Materials and Its Quantitative Evaluation Method, Fail. Anal. Prev. 14 (2019) 23-26.

[5] X.G. Wang, J.L. Liu, T.Jin, et al. Creep deformation related to dislocations cutting the γ´ phase of a Ni-base single crystal superalloy, Mat. Sci. Eng. A 626 (2015) 406-414.

DOI: 10.1016/j.msea.2014.12.060

[6] X. Fang, Y.S. Zhao, J. Zhang, et al. Effect of solution heat treatment on microstructures and stress rupture properties of a third generation Ni-based single crystal superalloy, J. Chongqing. Univ. 40 (2017) 87-98.

[7] M. Durand-Charee, The microstructure of superalloys, Gordon and Breach Science Publishers, Canada, 1997, p.60.

[8] Y.S. Luo, Y.S. Zhao, Z.Y. Liu, et al. Effect of solution heat treatment on microstructures and stress rupture properties of a second generation Ni-based single crystal superalloy, J. Chongqing. Univ. 39 (2016) 44-50.

[9] G.E. Fuchs. Solution heat treatment response of a third generation single crystal Ni-base superalloy, Mat. Sci. Eng. A. 300 (2001) 52–60.

DOI: 10.1016/s0921-5093(00)01776-7

[10] M.J. Zhang, F.G. Li, Z.W. Yuan, et al. Effect of heat treatment on the micro-indentation behavior of powder metallurgy nickel based superalloy FGH96, Mater. Design. 49 (2013) 705-715.

DOI: 10.1016/j.matdes.2013.02.024

[11] X.F.Yu, S.G. Tian, M.G. Wang, et al. Creep behaviors and effect factors of single crystal nickel-base superalloys [J]. Mat. Sci. Eng. A. 499 (2009) 352–359.

[12] J. Yu, X. Sun, N. Zhao, T. Jin, et al. Effect of heat treatment on microstructure and stress rupture life of DD32 single crystal Ni-base superalloy, Mat. Sci. Eng. A 460–461 (2007) 420–426.

DOI: 10.1016/j.msea.2007.01.117

[13] G.Tian, C.Jia, J.Liu, B.Hu. Experimental and simulation on the grain growth of P/M nickel-base superalloy during the heat treatment process, Mater. Design. 30 (2009) 433–441.

DOI: 10.1016/j.matdes.2008.06.007

[14] J.R. Davis (Ed.), Effect of heat treating on superalloy properties, Heat Resistant Materials — ASM Specialty Handbook, ASM International, Materials Park, OH, 1997, p.290.

[15] D.N. Duhl, Directionally solidified superalloys, in in: C.T. Sims, N.S. Stoloff, W.C. Hagel (Eds.), Superalloys II, Wiley and Sons, Inc., New York, 1987, p.189.

[16] S. M. Seo, J. H. Lee, Y. S. Yoo, et al. A Comparative Study of the γ/γ´ Eutectic Evolution during the Solidification of Ni-Base Superalloys, Metall. Mater. Trans. A. 42 (2011) 3150–3159.

DOI: 10.1007/s11661-011-0738-4

[17] L. R. Liu, T. Jin, N. R. Zhao, et al. Formation of carbides and their effects on stress rupture of a Ni-base single crystal superalloy, Mat. Sci. Eng. A. 361 (2003) 191-197.

DOI: 10.1016/s0921-5093(03)00517-3

[18] X. Z. Qin, J. T. Guo, C. Yuan, et al. Decomposition of primary MC carbide and its effects on the fracture behaviors of a cast Ni-base superalloy, Mat. Sci. Eng. A. 485 (2008): 74-79.

DOI: 10.1016/j.msea.2007.07.055
