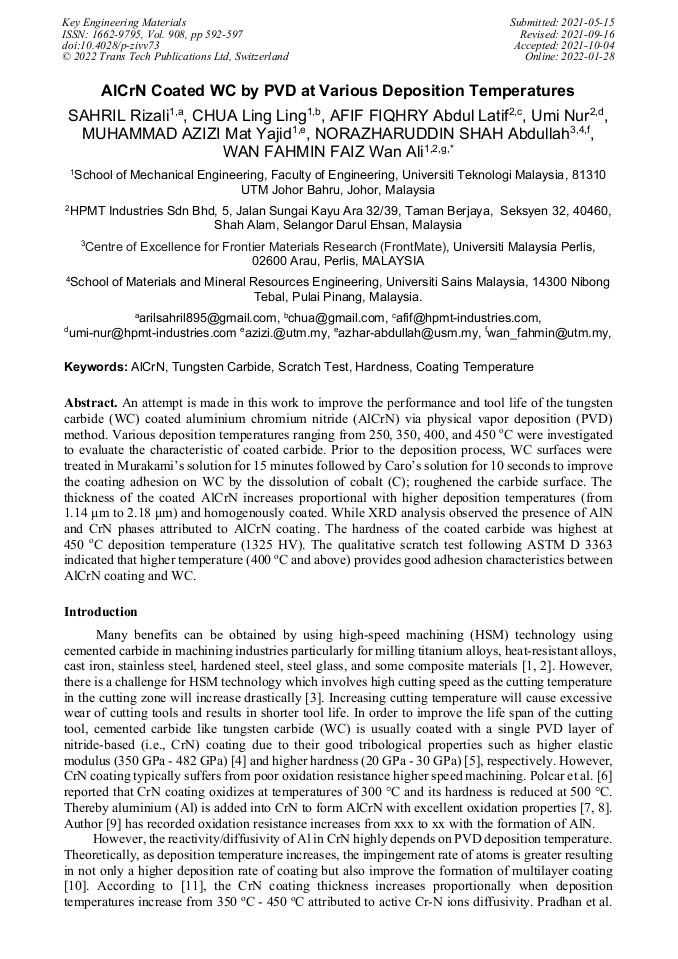

AlCrN Coated WC by PVD at Various Deposition Temperatures

Abstract:

An attempt is made in this work to improve the performance and tool life of the tungsten carbide (WC) coated aluminium chromium nitride (AlCrN) via physical vapor deposition (PVD) method. Various deposition temperatures ranging from 250, 350, 400, and 450 oC were investigated to evaluate the characteristic of coated carbide. Prior to the deposition process, WC surfaces were treated in Murakami’s solution for 15 minutes followed by Caro’s solution for 10 seconds to improve the coating adhesion on WC by the dissolution of cobalt (C); roughened the carbide surface. The thickness of the coated AlCrN increases proportional with higher deposition temperatures (from 1.14 μm to 2.18 μm) and homogenously coated. While XRD analysis observed the presence of AlN and CrN phases attributed to AlCrN coating. The hardness of the coated carbide was highest at 450 oC deposition temperature (1325 HV). The qualitative scratch test following ASTM D 3363 indicated that higher temperature (400 oC and above) provides good adhesion characteristics between AlCrN coating and WC.

• Periodical: Key Engineering Materials (Volume 908)
• Pages: 592-597
• DOI: https://doi.org/10.4028/p-zivv73
• Online since: January 2022
• Authors: Sahril Rizali*, Chua Ling Ling, Afif Fiqhry Abdul Latif, Umi Nur, Muhammad Azizi Mat Yajid, Norazharuddin Shah Abdullah, Wan Fahmin Faiz Wan Ali
• Keywords: AlCrN, Coating Temperature, Mechanical Properties, PVD Coating, Wear Performance

References

[1] Abdoos, M., Yamamoto, K., Bose, B., Fox-rabinovich, G. and Veldhuis, S. (2019) Effect of coating thickness on the tool wear performance of low-stress TiAlN PVD coating during turning of compacted graphite iron (CGI), Wear, 422–423, pp.128-136.

DOI: 10.1016/j.wear.2019.01.062

[2] Badaluddin, N. A., Fathul, W., Zamri, H. W. and Din, M. F. (2018) Coatings of Cutting Tools and Their Contribution to Improve Mechanical Properties: A Brief Review, Int. J. Appl. Eng. Res., 13(14), p.11653–11664.

[3] Bashir, M. I., Sha, M., Naeem, M., Zaka-ul-islam, M., Díaz-guillén, J. C., Lopez-badillo, C. M. and Zakaullah, M. (2017), Enhanced surface properties of aluminum by PVD-TiN coating combined with cathodic cage plasma nitriding, Surf. Coat. Technol., 327, p.59–65.

DOI: 10.1016/j.surfcoat.2017.08.015

[4] Bobzin, K. (2017) High-performance coatings for cutting tools, CIRP J. Manuf. Sci. Technol., 18, p.1–9.

[5] Adam G., Roman J., Piotr M., Bogdan W. (2019) Structure, morphology and mechanical properties of AlCrN coatings deposited by cathodic arc evaporation, J. Mater. Eng. Perform., 28, pp.1522-1531.

DOI: 10.1007/s11665-019-03934-2

[6] Polcar T., Martinez R., Vitu T., Kopecky L., Rodrigues R., and Cavaleiro A., (2009) High temperature tribology of CrN and multilayered Cr/CrN coatings, Surf. Coat. Technol, 203 (20-21) pp.3254-3259.

DOI: 10.1016/j.surfcoat.2009.04.005

[7] Khlfi K., and Ben Larbi A., (2013) Investigation of adhesion of PVD coatings using various approaches, Surf. Eng., 29(7) pp.255-260.

[8] Monica C., Bruno C., Carlos C., Wagner R., Paulo M., Fernando A., and Haroldo C., (2018) On the effect of aluminium on the microstructure and mechanical properties of CrN coatings deposited by HiPIMS, Mater. Res., 21(3) pp.1-6.

[9] Xu YX, Riedl H, Holec D, Chen L, Du Y, Mayrhofer PH. (2017) Thermal stability and oxidation resistance of sputtered Ti-Al-Cr-N hard coatings. Surf. Coat. Technol., 324, pp.48-56.

DOI: 10.1016/j.surfcoat.2017.05.053

[10] Li QY., Dong SJ., Cao Q., Gong DQ., and Cheng XD (2019) Thermal stability of multi layered AlCrN Cr AlCrN coatings at elevated temperatures for low thermal emissivity applications, Appl. Surf. Sci., 498, 143886(1-10).

DOI: 10.1016/j.apsusc.2019.143886

[11] Bassam A., Mahmoud K., Walied A., and Walaa Z., (2019) Temperature effect on structural mechanical properties and corrosion behavior of CrN thin films deposited by magnetron sputtering, Micro Nano Lett., 15(10) pp.678-683.

DOI: 10.1049/mnl.2019.0600

[12] Pradhan SK., Nouveau C., Vasin A., and Djouadi M., (2005) Deposition of CrN coatings by PVD methods for mechanical application, Surf. Coat Technol., 200, pp.131-145.

DOI: 10.1016/j.surfcoat.2005.02.038

[13] Tlili B., Nouveau C., Walock MJ., Nasri M., and Ghrib T., (2012) Effect of layer thickness on thermal properties of multilayer thin films produced by PVD, Vacuum, 86(8), pp.1048-1056.

DOI: 10.1016/j.vacuum.2011.09.008

[14] Bogdan W., Adam G., Piotr M., Ewa D., and Dawid M (2020) Structure and Properties of AlCrN coatings deposited using cathodic arc evaporation, Coat., 793 (10), pp.1-21.

DOI: 10.3390/coatings10080793

[15] Chandrashekhar A., Kabadi VR and Bhide R., (2016) Scratch wear resistance of TiAlN and AlCrN coated EN353 Steel, J. Mater. Sci. Eng., 5(4) pp.1-9.

DOI: 10.4172/2169-0022.1000251

[16] Chandrashekhar A., Kabadi VR., Gupta N., Ambli KG., Bhide R., (2016) Influence of Substrate of the Carbon Contents and Coating Thickness on Scratch and Wear Resistance of AlCrN Films, Mater. Sci. Metall. Eng., 3(1) pp.1-7.
