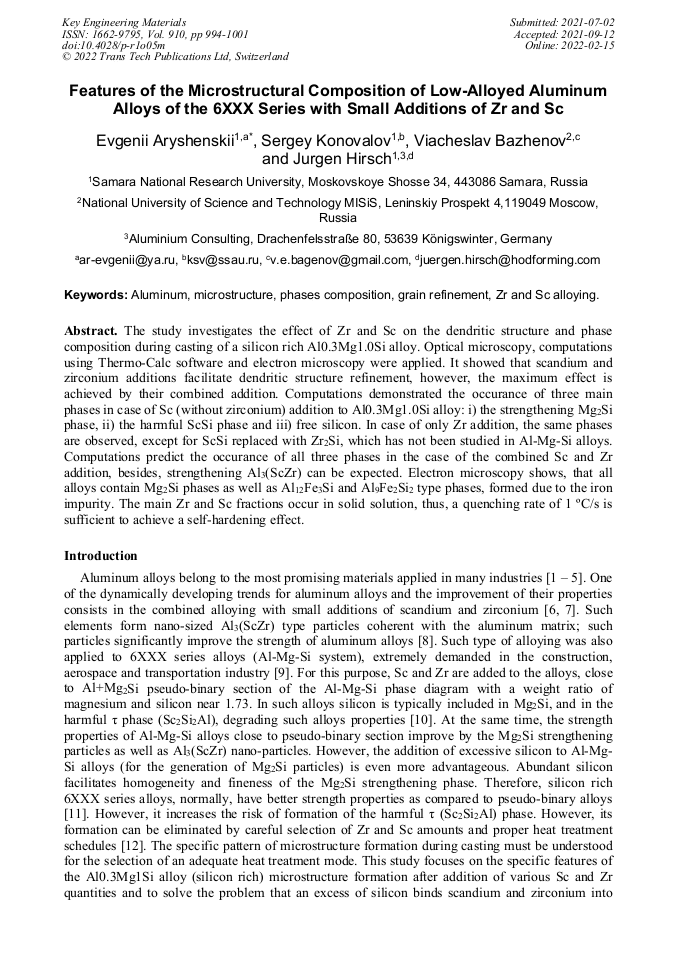

Features of the Microstructural Composition of Low-Alloyed Aluminum Alloys of the 6XXX Series with Small Additions of Zr and Sc

Abstract:

The study investigates the effect of Zr and Sc on the dendritic structure and phase composition during casting of a silicon rich Al0.3Mg1.0Si alloy. Optical microscopy, computations using Thermo-Calc software and electron microscopy were applied. It showed that scandium and zirconium additions facilitate dendritic structure refinement, however, the maximum effect is achieved by their combined addition. Computations demonstrated the occurance of three main phases in case of Sc (without zirconium) addition to Al0.3Mg1.0Si alloy: i) the strengthening Mg₂Si phase, ii) the harmful ScSi phase and iii) free silicon. In case of only Zr addition, the same phases are observed, except for ScSi replaced with Zr₂Si, which has not been studied in Al-Mg-Si alloys. Computations predict the occurance of all three phases in the case of the combined Sc and Zr addition, besides, strengthening Al₃(ScZr) can be expected. Electron microscopy shows, that all alloys contain Mg₂Si phases as well as Al₁₂Fe₃Si and Al₉Fe₂Si₂ type phases, formed due to the iron impurity. The main Zr and Sc fractions occur in solid solution, thus, a quenching rate of 1 oС/s is sufficient to achieve a self-hardening effect.

• Periodical: Key Engineering Materials (Volume 910)
• Pages: 994-1001
• DOI: https://doi.org/10.4028/p-r1o05m
• Online since: February 2022
• Authors: Evgeniy V. Aryshenskii*, Sergey Konovalov, Viacheslav Bazhenov, Jurgen Hirsch
• Keywords: Aluminum, Grain Refinement, Microstructure, Phases Composition, Sc Alloying, Zr Alloying

References

[1] A. L. Alattar, V. Y. Bazhin, Al–Cu–B 4 C Composite Materials for the Production of High-Strength Billets, Metallurgist. 64 (2020) 566-573.

DOI: 10.1007/s11015-020-01028-2

[2] V. M. Sizyakov, V. Y. Bazhin, A. A. Vlasov, Status and Prospects for Growth of the Aluminum Industry, Metallurgist. 54 (2010) 409–414.

DOI: 10.1007/s11015-010-9316-z

[3] V. Y. Bazhin, E. M. Gutema, S. A. Savchenkov, Production Technology Features for Aluminum Matrix Alloys with a Silicon Carbide Framework, Metallurgist. 60 (2017) 1267–1272.

DOI: 10.1007/s11015-017-0439-3

[4] P. Shurkin, N. Belov, T. Akopyan, Z. Karpova, Recycling-oriented design of the Al-Zn-Mg-Ca alloys. In Materials Proceedings 3 (2021) 7.

DOI: 10.3390/iec2m-09250

[5] N. Belov, T. Akopyan, N. Korotkova, M. Murashkin, V. Timofeev, A. Fortuna, Structure and Properties of Ca and Zr Containing Heat Resistant Wire Aluminum Alloy Manufactured by Electromagnetic Casting, Metals 11 (2021) 236.

DOI: 10.3390/met11020236

[6] V. V. Zakharov, I. A. Fisenko, Some Principles of Alloying of Aluminum Alloys with Scandium and Zirconium in Ingot Production of Deformed Semiproducts, Metal Science and Heat Treatment. 3 (2019) 217-221.

DOI: 10.1007/s11041-019-00403-4

[7] V. V. Zakharov, Combined alloying of aluminum alloys with scandium and zirconium, Metal Science and Heat Treatment. 5 (2014) 281-286.

DOI: 10.1007/s11041-014-9746-5

[8] J. Röyset, N. Ryum, Scandium in aluminium alloys, International Materials Reviews. 1 (2005) 19-44.

[9] C. Vargel, Corrosion of aluminium. Elsevier. (2020).

[10] L. L. Rokhlin, N. R. Bochvar, N. P. Leonova, A. V. Sukhanov, Effect of additional doping with scandium and scandium with zirconium on strength properties of the alloys of Al–Mg 2 Si system, Inorganic Materials. 52 (2016) 1467-1471.

DOI: 10.1134/s0020168516150140

[11] G. Huppert, E. Hornbogen, Proceedings of the 4th International Conference on Aluminum Alloys, 1 (1994) 628.

[12] S. Babaniaris, M. Ramajayam, L. Jiang, T. Langan, T. Dorin, Developing an optimized homogenization process for Sc and Zr containing Al-Mg-Si alloys, In Light Metals. (2019) 1445-1453.

DOI: 10.1007/978-3-030-05864-7_181

[13] J. O. Andersson, T. Helander, L. Höglund, P. F. Shi, B. Sundman, Thermo-Calc and DICTRA, Computational tools for materials science. 26 (2002) 273-312.

DOI: 10.1016/s0364-5916(02)00037-8

[14] Thermo-Calc Software TCAL4 Al-based alloy database, Version 4 (accessed 1 May 2021).

[15] V. G. Davydov, V. I. Elagin, V. V. Zakharov, D. Rostoval, Alloying aluminum alloys with scandium and zirconium additives, Metal Science and Heat Treatment. 38 (1996) 347-352.

DOI: 10.1007/bf01395323

[16] J. Murray, A. Peruzzi, J. P. Abriata, The Al-Zr (aluminum-zirconium) system, Journal of phase equilibria. 13 (1992) 277-291.

DOI: 10.1007/bf02667556

[17] F. Wang, D. Qiu, Z. L. Liu, J. A. Taylor, M. A. Easton, M. X. Zhang, The grain refinement mechanism of cast aluminium by zirconium, Acta materialia. 61 (2013) 5636-5645.

DOI: 10.1016/j.actamat.2013.05.044

[18] G. M. Khan, A. O. Nikiforov, V. V. Zakharov, I. I. Novikov, Effect of the scandium concentration on the structure and superplasticity parameters of aluminum alloys of the AI - Zn - Mg - Sc - Zr system, Tsvet. Metally, 1 (1993) 55-58.

[19] L. F. Mondolfo, Aluminum alloys: structure and properties. Elsevier. (2013).

[20] H. Okamoto, The Si-Zr (silicon-zirconium) system, Journal of Phase Equilibria. 5 (1990) 513-519.

DOI: 10.1007/bf02898272

[21] W. Yuan, Z. Liang, Effect of Zr addition on properties of Al–Mg–Si aluminum alloy used for all aluminum alloy conductor, Materials & Design. 8-9 (2011) 4195-4200.

DOI: 10.1016/j.matdes.2011.04.034

[22] S. Babaniaris, M. Ramajayam, L. Jiang, T. Langan, T. Dorin, Tailored precipitation route for the effective utilisation of Sc and Zr in an Al-Mg-Si alloy, Materialia. 10 (2020) 100656.

DOI: 10.1016/j.mtla.2020.100656
