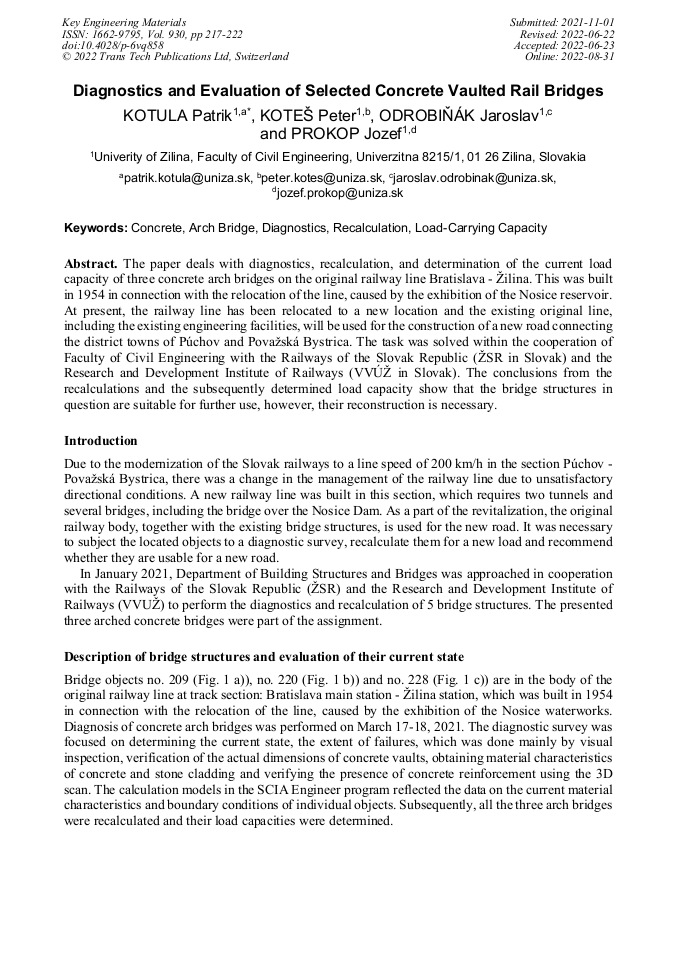

Diagnostics and Evaluation of Selected Concrete Vaulted Rail Bridges

Abstract:

The paper deals with diagnostics, recalculation, and determination of the current load capacity of three concrete arch bridges on the original railway line Bratislava - Žilina. This was built in 1954 in connection with the relocation of the line, caused by the exhibition of the Nosice reservoir. At present, the railway line has been relocated to a new location and the existing original line, including the existing engineering facilities, will be used for the construction of a new road connecting the district towns of Púchov and Považská Bystrica. The task was solved within the cooperation of Faculty of Civil Engineering with the Railways of the Slovak Republic (ŽSR in Slovak) and the Research and Development Institute of Railways (VVÚŽ in Slovak). The conclusions from the recalculations and the subsequently determined load capacity show that the bridge structures in question are suitable for further use, however, their reconstruction is necessary.

• Periodical: Key Engineering Materials (Volume 930)
• Pages: 217-222
• DOI: https://doi.org/10.4028/p-6vq858
• Online since: August 2022
• Authors: Patrik Kotula*, Peter Koteš, Jaroslav Odrobinak, Jozef Prokop
• Keywords: Arch Bridge, Concrete, Diagnostics, Load-Carrying Capacity, Recalculation

References

[1] P. Kotula, at al. Report on recalculation and diagnostics of bridge object no. 209 in km 1.497 00 SO 44.39.01.1 Púchov-Považská Bystrica, new road on an abandoned body. University of Zilina, Civil Engineering Faculty, Department of Structures and bridges, (2021) (in Slovak).

[2] P. Kotula, at al. Report on recalculation and diagnostics of bridge object no. 220 in km 4.893 00 SO 44.39.01.1 Púchov-Považská Bystrica, new road on an abandoned body. University of Zilina, Civil Engineering Faculty, Department of Structures and bridges, (2021) (in Slovak).

[3] P. Kotula, at al. (2021). Report on recalculation and diagnostics of bridge object no. 228 in km 0.288 28 SO 44.39.01.1 Púchov-Považská Bystrica, new road on an abandoned body. University of Zilina, Civil Engineering Faculty, Department of Structures and bridges, (2021) (in Slovak).

[4] TP 02/2016 Technical conditions. Load capacity of road bridges and footbridges, MDVRR SR, (2016) (in Slovak).

[5] ŽSR TS 5 (2020). Bridge Management, Department 230 GR ŽSR (in Slovak).

[6] STN EN 1992-2 Eurocode 2 (2007) Design of concrete structures. Part 2: Concrete bridges – Design and detailing rules. Slovak office of Standards, Metrology and Testing.

DOI: 10.3403/30096437u
