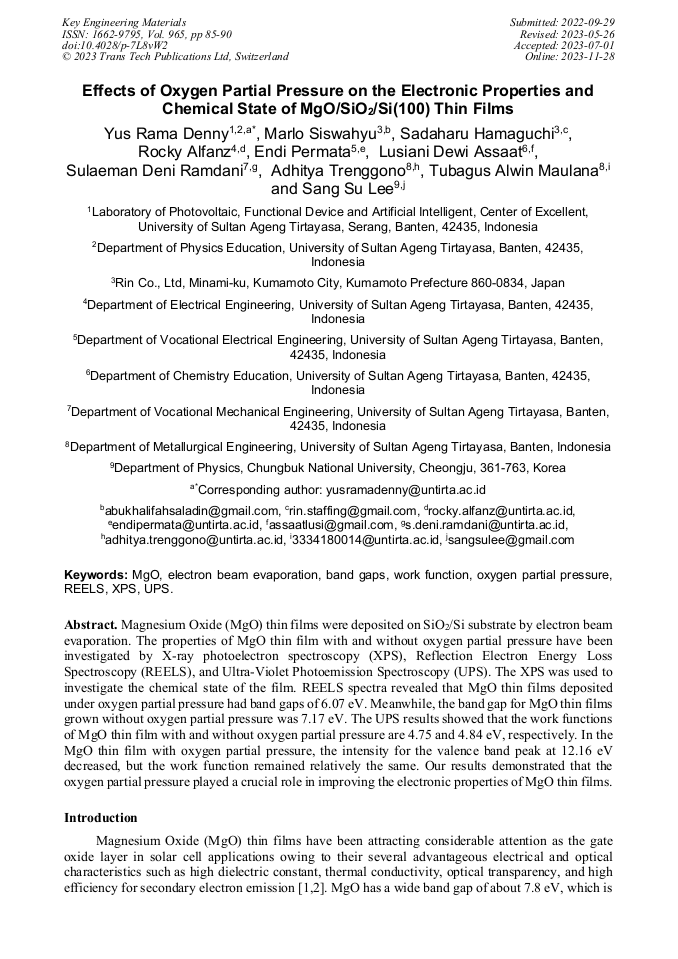

Effects of Oxygen Partial Pressure on the Electronic Properties and Chemical State of MgO/SiO₂/Si(100) Thin Films

Abstract:

Magnesium Oxide (MgO) thin films were deposited on SiO₂/Si substrate by electron beam evaporation. The properties of MgO thin film with and without oxygen partial pressure have been investigated by X-ray photoelectron spectroscopy (XPS), Reflection Electron Energy Loss Spectroscopy (REELS), and Ultra-Violet Photoemission Spectroscopy (UPS). The XPS was used to investigate the chemical state of the film. REELS spectra revealed that MgO thin films deposited under oxygen partial pressure had band gaps of 6.07 eV. Meanwhile, the band gap for MgO thin films grown without oxygen partial pressure was 7.17 eV. The UPS results showed that the work functions of MgO thin film with and without oxygen partial pressure are 4.75 and 4.84 eV, respectively. In the MgO thin film with oxygen partial pressure, the intensity for the valence band peak at 12.16 eV decreased, but the work function remained relatively the same. Our results demonstrated that the oxygen partial pressure played a crucial role in improving the electronic properties of MgO thin films.

• Periodical: Key Engineering Materials (Volume 965)
• Pages: 85-90
• DOI: https://doi.org/10.4028/p-7L8vW2
• Online since: November 2023
• Authors: Yus Rama Denny*, Marlo Siswahyu, Sadaharu Hamaguchi, Rocky Alfanz, Endi Permata, Lusiani Dewi Assaat, Sulaeman Deni Ramdani, Adhitya Trenggono, Tubagus Alwin Maulana, Sang Su Lee
• Keywords: Band Gaps, Electron Beam Evaporation, MgO, Oxygen Partial Pressure, REELS, UPS, Work Function, XPS

References

[1] D. Cáceres, I. Vergara, and González, R. "Microstructural characterization of MgO thin films grown by radio-frequency sputtering. Target and substrate-temperature effect." J. Appl. Phys. 2003, 93, 4300–4305.

DOI: 10.1063/1.1558964

[2] C. Thiandoume, A. Lusson, P. Galtier, and V. Sallet, "Metal organic vapour phase epixaty of MgO films grown c-plane shapphire," Journal of Crystal Growth, 2009, 311, 4371-4373.

DOI: 10.1016/j.jcrysgro.2009.07.019

[3] P. Casey, E. O'Connor, R. Long, B. Brennan, S.A. Krasnikov, D. O'Connell, P.K. Hurley, and G. Hughes, "Growth, ambient stability and electrical characterization of MgO thin films on silicon surfaces," Microelectron Eng. 86 (2009) 1711.

DOI: 10.1016/j.mee.2009.03.046

[4] S. H. Moon, T. W. Heo, S. Y. Park, J. H. Kim, and H. J. Kim, "The effects of dehydration of MgO films on their XPS spectra and electrical properties." J. Electrochem. Soc. 154, (2007) J408.

DOI: 10.1149/1.2789787

[5] C. Y. Son, J. Cho, and J. W. Park, "Stoichiometry dependency of the firing and sustain voltage properties of MgO thin films for alternating current plasma display panels," J. Vac. Sci. Technol. A 17, (1999) 2619.

DOI: 10.1116/1.581920

[6] T. W. Heo, S. H. Moon, S. Y. Park, J. H. Kim, and H. J. Kim, "Effects of O2 ambient on the properties of MgO thin films deposited by e-beam evaporation." J. Electrochem. Soc. 154 (11), (2007) J352-J356.

DOI: 10.1149/1.2776224

[7] T. L. Barr and S. Seal, "Nature of the use of adventitious carbon as a binding energy standard," J. Vac. Sci. Technol. A 13, (1995) 1239.

[8] J. S. Corneille, J. W. He, and D. W. Goodman, "XPS characterization of ultra-thin MgO thin films on a Mo(100) surface," Surf. Sci. 306, (1994) 269-278.

DOI: 10.1016/0039-6028(94)90071-x

[9] P. Casey, G. Hughes, E. O'Connor, R. D. Long, and P.K. Hurley, "Growth and characterization of MgO thin films layer on Si(100) surfaces," Journal of Physics: Conference Series, 100 (2008) 042046.

DOI: 10.1088/1742-6596/100/4/042046

[10] Y. S. Kim, S. H. Yoon, Y. G. Ahn, C. R. Hong, and H. Yang, "Electron emission characteristics of MgO thin films used for AC-PDPs: Part I Secondary Electron Emision, Electron. Mater. Lett. 4, (2008) 113.

DOI: 10.1016/j.tsf.2009.01.184

[11] Y. R. Denny, H. C. Shin, S. Seo, S. K. Oh, H. J. Kang, D. Tahir, S. Heo, J. G. Chung, J. C. Lee, and S. Tougaard," Electronic and Optical Properties of Hafnium Indium Zinc Oxide Thin Film by XPS and REELS," J. Elect. Spect. Rel. Phenom. 185 (2012) 18.

DOI: 10.1016/j.elspec.2011.12.004

[12] Y. R. Denny, S. Lee, K. Lee, S. Seo, S. K. Oh, H. J. Kang, S. Heo, J. G. Chung, J. C. Lee, and S. Tougaard, "Effects of Gas Environment on Electronic and Optical properties of Amorphous Indium Zinc Tin Oxide Thin Films," J. Vac. Sci. Technol. A 31(3) (2013) 031508-1.

DOI: 10.1116/1.4801023

[13] Y. R. Denny, S. Lee, K. Lee, S. Seo, S. K. Oh, D. S. Yang, H. J. Kang, S. Heo, J. G. Chung, J. C. Lee, "Electrical, electronic and optical properties of amorphous indium zinc tin oxide thin films," Appl. Surf. Sci. 315 (2014) 454.

DOI: 10.1016/j.apsusc.2014.03.047

[14] D. S. Ginley, H. Hosono, and D. C. Paine, Handbook of Transparent Conductors, (Springer, Berlin, 2010).

[15] E. Burnstein, "Anomalous Optical Absorption Limit in InSb," Phys. Rev. 93, 632 (1954).

[16] D. Ochs, W. M. Friedrichs, M. Brause, J. Gunter, V. Kempter, V. Puchin, A. Shluger, and L. Kantorovich, "Study of the surface electronic structure of MgO bulk crystals and thin films," Surf. Sci. 365, (1996) 557-571.

DOI: 10.1016/0039-6028(96)00706-6
