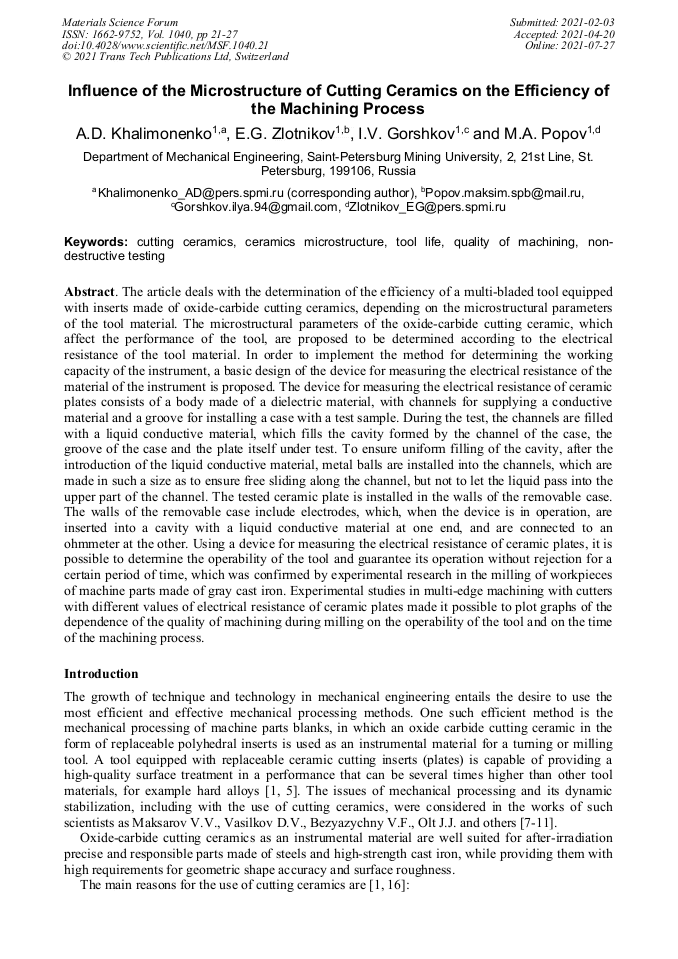

Influence of the Microstructure of Cutting Ceramics on the Efficiency of the Machining Process

Abstract:

The article deals with the determination of the efficiency of a multi-bladed tool equipped with inserts made of oxide-carbide cutting ceramics, depending on the microstructural parameters of the tool material. The microstructural parameters of the oxide-carbide cutting ceramic, which affect the performance of the tool, are proposed to be determined according to the electrical resistance of the tool material. In order to implement the method for determining the working capacity of the instrument, a basic design of the device for measuring the electrical resistance of the material of the instrument is proposed. The device for measuring the electrical resistance of ceramic plates consists of a body made of a dielectric material, with channels for supplying a conductive material and a groove for installing a case with a test sample. During the test, the channels are filled with a liquid conductive material, which fills the cavity formed by the channel of the case, the groove of the case and the plate itself under test. To ensure uniform filling of the cavity, after the introduction of the liquid conductive material, metal balls are installed into the channels, which are made in such a size as to ensure free sliding along the channel, but not to let the liquid pass into the upper part of the channel. The tested ceramic plate is installed in the walls of the removable case. The walls of the removable case include electrodes, which, when the device is in operation, are inserted into a cavity with a liquid conductive material at one end, and are connected to an ohmmeter at the other. Using a device for measuring the electrical resistance of ceramic plates, it is possible to determine the operability of the tool and guarantee its operation without rejection for a certain period of time, which was confirmed by experimental research in the milling of workpieces of machine parts made of gray cast iron. Experimental studies in multi-edge machining with cutters with different values ​​of electrical resistance of ceramic plates made it possible to plot graphs of the dependence of the quality of machining during milling on the operability of the tool and on the time of the machining process.

• Periodical: Materials Science Forum (Volume 1040)
• Pages: 21-27
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1040.21
• Online since: July 2021
• Authors: Aleksei D. Khalimonenko, E.G. Zlotnikov, Ilya V. Gorshkov, M.A. Popov*
• Keywords: Ceramics Microstructure, Cutting Ceramics, Non-Destructive Testing, Quality of Machining, Tool Life

References

[1] A.D. Khalimonenko, R.V. Vyushin, Accuracy of the machining turning process of the workpieces, when cutting tool equipped with removable ceramic inserts, Journal of Mining Institute 209 (2014) 99-103.

[2] A.U. Margules, Cutting metals cermets, Mechanical Engineering, Moscow, (1980).

[3] A.U. Margules, The use of cermets in metal cutting, Leningrad house of scientific and technical news, Leningrad, (1979).

[4] S.A. Lavrenko, I.A. Korolev, Analysis of Cambrian clay cutting during Saint-Petersburg subway construction, Gornyi Zhurnal 2 (2018) 53-58.

DOI: 10.17580/gzh.2018.02.08

[5] A.V. Sivenkov et al., Creating a model of diffusion deposition of metal coatings from melts of low-melting metals, IOP Conference Series: Materials Science and Engineering 560(1) (2019) 012188.

DOI: 10.1088/1757-899x/560/1/012188

[6] K.Y. Shakhnazarov, E.I. Pryakhin, Detection of intermediate phases in metal alloys, Key Engineering Materials 854 (2020) 23-29.

DOI: 10.4028/www.scientific.net/kem.854.23

[7] A.V. Nikitin, I.Y. Tarikov, D.V. Vasilkov, Determination of technological residual stresses in the surface layer of parts with thin-walled elements during turning, IOP Conference Series: Materials Science and Engineering 666(1) (2019) 012024.

DOI: 10.1088/1757-899x/666/1/012024

[8] S.L. Ivanov, P.V. Shishkin, Manufacturing and design technology of Combined corrected gearing and nonstandard Radial clearance, IOP Conference Series: Earth and Environmental Science 194(2) (2018) 022013.

DOI: 10.1088/1755-1315/194/2/022013

[9] K.P. Pompeev, D.Yu. Timofeev, Precision dimensional analysis in CAD design of reliable technologies, IOP Conference Series: Earth and Environmental Science 194(2) (2018) 022028.

DOI: 10.1088/1755-1315/194/2/022028

[10] I.E. Zvonarev, A.I. Folomkin, E.H. Muratbakeev, Computer simulation of machining, Key Engineering Materials 743 (2017) 248-251.

DOI: 10.4028/www.scientific.net/kem.743.248

[11] V. Maksarov, J. Olt, Dynamic stabilization of machining process based on local metastability in controlled robotic systems of CNC machines, Journal of Mining Institute 226 (2017) 446-451.

[12] S.A. Lyubomudrov, I.N. Khrustaleva, A.A. Tolstoles, A.P. Maslakov, Improving the efficiency of technological preparation of single and small batch production based on simulation modeling, Journal of Mining Institute 240 (2019) 669-677.

DOI: 10.31897/pmi.2019.6.669

[13] A.I. Keksin, I.A. Filipenko, Oil and gas sector products cold working process, Topical Issues of Rational Use of Natural Resources 2019(1) (2020) 400-405.

DOI: 10.1201/9781003014577-50

[14] D. Ershov, I. Lukyanenko, Vibration amplitude and frequency parameters of technological equipment drives, Smart Innovation, Systems and Technologies, 187 (2021) 537-548.

DOI: 10.1007/978-981-15-5580-0_44

[15] V.F. Bezyazychnyi, M. Szcerek, M.L. Pervov, M.V. Timofeev, M.A. Prokofiev, The Study of the Effect of Temperature on the Ability of Metals to Accumulate Energy During Their Plastic Deformation, Journal of Mining Institute 235 (2019) 55-59.

DOI: 10.31897/pmi.2019.1.55

[16] D.V. Vasilkov, A.V. Nikitin, V.S. Cherdakova, Dynamic System Stability when Machining with Cutter, IOP Conference Series: Earth and Environmental Science 194(2) (2018) 022045.

DOI: 10.1088/1755-1315/194/2/022045

[17] V.V. Maksarov, A.D. Khalimonenko, I.V. Gorshkov, Patent RU 2729169 C1 (2020).

[18] I.V. Gorshkov, M.A. Popov, Influence of structural parameters of cutting ceramics on quality of processing of machine slideways of metal-cutting equipment in selective formation of instrumentation, Key Engineering Materials 854 (2020) 64-73.

DOI: 10.4028/www.scientific.net/kem.854.64
