HomeMaterials Science ForumMaterials Science Forum Vol. 1042Mechanical Properties of SiC/Gr Reinforced Hybrid...

Mechanical Properties of SiC/Gr Reinforced Hybrid Aluminum Composites after Heat Treatment

Abstract:

Metal matrix composite has been developed to improve mechanical properties for the automotive component application. One crucial factor in achieving excellent mechanical properties is improving the properties of the aluminum matrix of composite by the heat treatment process. The mechanical properties of Al-Mg-Si matrix composites alloyed with Zn and reinforced with 5% SiC and 5%Gr particle were examined after the heat treatment process. The aluminum matrix is melted inside the crucible furnace at 850 °C and is added with SiC/Gr particle, followed by stirring at 7500 rpm to optimize the mixing of the composite. Then, the composite is poured into the preheated mold at 300 °C and then squeezed with 30 MPa of pressure. The heat treatment process consists of three steps; solution treatment, quenching, and artificial aging. The aging process is conducted with variation of temperature (140 °C, 180 °C and 200 °C) and holding time (2, 4, and 6 hours). The test results show that the mechanical properties of aluminum matrix composite tend to increase after the heat treatment process. The optimum mechanical properties are achieved at the aging temperature of 200 °C for 6 hours, with the hardness value of 60.3 HRA and the impact value of 0.112 Joule/mm².

You might also be interested in these eBooks

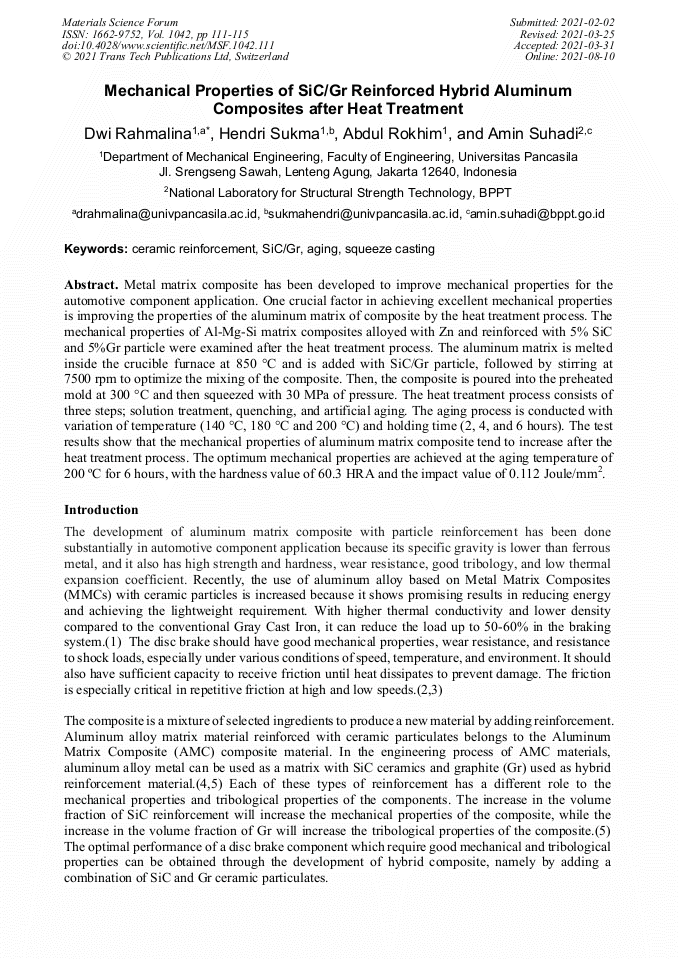

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1042)

Pages:

111-115

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1042.111

Citation:

Cite this paper

Online since:

August 2021

Authors:

Dwi Rahmalina*, Hendri Sukma, Abdul Rokhim, Amin Suhadi

Keywords:

Aging, Ceramic Reinforcement, SiC/Gr, Squeeze Casting

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Macke A, Schultz BF, Rohatgi P. Metal matrix composites: offer the automotive industry and opportunity to reduce vehicle weight, improve performance. Adv Mater Process. 2012;170(3):19–23.

Google Scholar

[2] Lan J, Yan-li J, Liang Y, Nan S, You-dong D. Thermal analysis for brake disks of SiC/6061 Al alloy co-continuous composite for CRH3 during emergency braking considering airflow cooling. Trans Nonferrous Met Soc China [Internet]. 2012;22(11):2783–91. Available from: http://dx.doi.org/10.1016/S1003-6326(11)61533-1.

DOI: 10.1016/s1003-6326(11)61533-1

Google Scholar

[3] Maleque MA, Dyuti S, Rahman MM. Material selection method in design of automotive brake disc. Proc World Congr Eng. 2010;III:2322–6.

Google Scholar

[4] Stojanovic B, Babic M, Mitrovic S, Vencl A, Miloradovic N, Pantic M. Tribological characteristics of aluminium hybrid composites reinforced with silicon carbide and graphite: a review. J Balk Tribol Assoc. 2013;19(1):83–96.

Google Scholar

[5] Stojanović B, Ivanović L. Application of aluminium hybrid composites in automotive industry. Teh Vjesn. 2015;22(1):247–51.

DOI: 10.17559/tv-20130905094303

Google Scholar

[6] Sadagopan P, Natarajan HK, J PK. Study of silicon carbide-reinforced aluminum matrix composite brake rotor for motorcycle application. Int J Adv Manuf Technol. 2018;94(1–4):1461–75.

DOI: 10.1007/s00170-017-0969-7

Google Scholar

[7] Rahmalina D, Sofyan BT, Askarningsih N, Rizkyardiani S. Effect of treatment process on hardness of Al7Si-Mg-Zn matrix composite reinforced with silicon carbide particulate. Adv Mater Res. 2014;875–877:1511–5.

DOI: 10.4028/www.scientific.net/amr.875-877.1511

Google Scholar

[8] Rahmalina D, Sukma H, Lesmana IGE, Halim A. Effect of solution treatment process on hardness of alumina reinforced Al-9Zn composite produced by squeeze casting. Int J Smart Mater Mechatronics. 2014;1(1):25–8.

Google Scholar

[9] Souissi N, Souissi S, Niniven C Le, Amar M Ben, Bradai C, Elhalouani F. Optimization of squeeze casting parameters for 2017 a wrought Al alloy using taguchi method. Metals (Basel). 2014;4(2):141–54.

DOI: 10.3390/met4020141

Google Scholar

[10] Thimmarayan R, Thanigaiyarasu G. Effect of particle size, forging and ageing on the mechanical fatigue characteristics of Al6082 / SiCp metal matrix composites. Int J Adv Manuf Technol. 2010;48(5–8):625–6.

DOI: 10.1007/s00170-009-2316-0

Google Scholar

[11] You-ping SUN, Hong-ge YAN, Zhen-hua C, Hao Z. Effect of heat-treatment on microstructure and properties of SiC particulate-reinforced aluminum matrix composite. 2007;(September):15–8.

Google Scholar

[12] Kumar NVR, Dwarakadasa ES. Effect of matrix strength on the mechanical properties of Al – Zn – Mg / SiC P composites. 2000;31:1139–45.

DOI: 10.1016/s1359-835x(00)00062-2

Google Scholar
