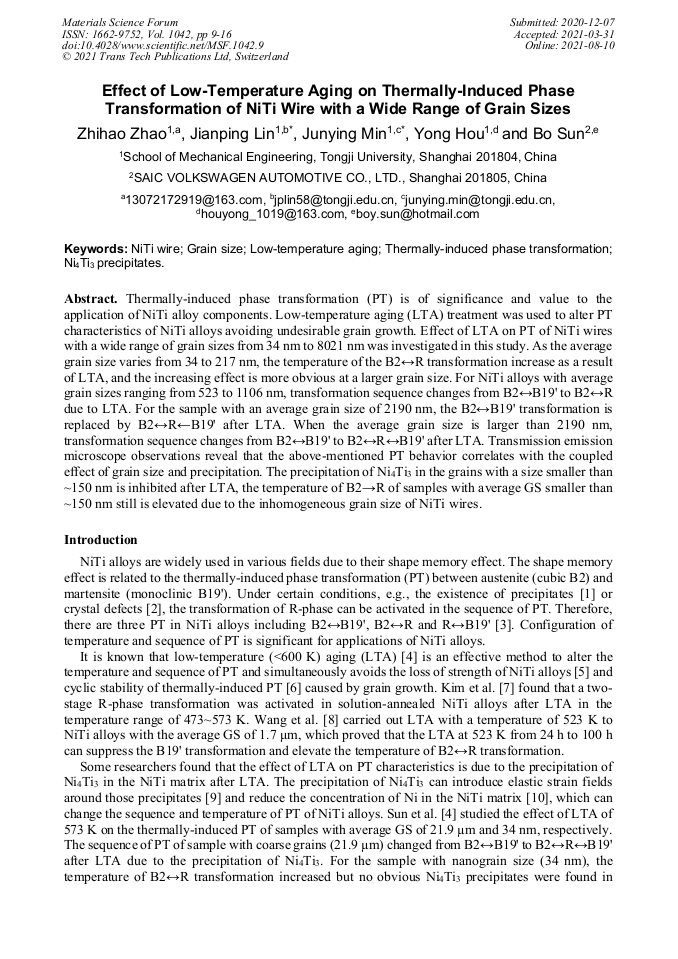

Effect of Low-Temperature Aging on Thermally-Induced Phase Transformation of NiTi Wire with a Wide Range of Grain Sizes

Abstract:

Thermally-induced phase transformation (PT) is of significance and value to the application of NiTi alloy components. Low-temperature aging (LTA) treatment was used to alter PT characteristics of NiTi alloys avoiding undesirable grain growth. Effect of LTA on PT of NiTi wires with a wide range of grain sizes from 34 nm to 8021 nm was investigated in this study. As the average grain size varies from 34 to 217 nm, the temperature of the B2↔R transformation increase as a result of LTA, and the increasing effect is more obvious at a larger grain size. For NiTi alloys with average grain sizes ranging from 523 to 1106 nm, transformation sequence changes from B2↔B19' to B2↔R due to LTA. For the sample with an average grain size of 2190 nm, the B2↔B19' transformation is replaced by B2↔R←B19' after LTA. When the average grain size is larger than 2190 nm, transformation sequence changes from B2↔B19' to B2↔R↔B19' after LTA. Transmission emission microscope observations reveal that the above-mentioned PT behavior correlates with the coupled effect of grain size and precipitation. The precipitation of Ni₄Ti₃ in the grains with a size smaller than ~150 nm is inhibited after LTA, the temperature of B2→R of samples with average GS smaller than ~150 nm still is elevated due to the inhomogeneous grain size of NiTi wires.

• Periodical: Materials Science Forum (Volume 1042)
• Pages: 9-16
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1042.9
• Online since: August 2021
• Authors: Zhi Hao Zhao*, Jian Ping Lin, Jun Ying Min, Yong Hou, Bo Sun
• Keywords: Grain Size, Low-Temperature Aging, Ni₄Ti₃ Precipitates, NiTi Wire, Thermally-Induced Phase Transformation

References

[1] I. Kaya, H.E. Karaca, M. Nagasako, R. Kainuma, Effects of aging temperature and aging time on the mechanism of martensitic transformation in nickel-rich NiTi shape memory alloys, Mater Charact 159 (2020).

DOI: 10.1016/j.matchar.2019.110034

[2] P.C. Chang, M.L. Ko, B. Ramachandran, Y.K. Kuo, C. Chien, S.K. Wu, Comparative study of R-phase martensitic transformations in TiNi-based shape memory alloys induced by point defects and precipitates, Intermetallics 84 (2017) 130-135.

DOI: 10.1016/j.intermet.2017.01.008

[3] X.N. Zhang, B.Y. Xia, J. Song, B. Chen, X.L. Tian, Y.M. Hao, C.Y. Xie, Effects of equal channel angular extrusion and aging treatment on R phase transformation behaviors and Ti3Ni4 precipitates of Ni-rich TiNi alloys, Journal of Alloys and Compounds 509(21) (2011) 6296-6301.

DOI: 10.1016/j.jallcom.2011.03.062

[4] B. Sun, M.W. Fu, J. Lin, Y.Q. Ning, Effect of low-temperature aging treatment on thermally- and stress-induced phase transformations of nanocrystalline and coarse-grained NiTi wires, Materials & Design 131 (2017) 49-59.

DOI: 10.1016/j.matdes.2017.05.094

[5] V. Pushin, V. Stolyarov, R. Valiev, T. Lowe, Y. Zhu, Nanostructured TiNi-based shape memory alloys processed by severe plastic deformation, Materials Science and Engineering: A 410 (2005) 386-389.

DOI: 10.1016/j.msea.2005.08.071

[6] J. Frenzel, J.A. Burow, E.J. Payton, S. Rezanka, G. Eggeler, Improvement of NiTi Shape Memory Actuator Performance Through Ultra-Fine Grained and Nanocrystalline Microstructures, Advanced Engineering Materials 13(4) (2011) 256-268.

DOI: 10.1002/adem.201000285

[7] J.I. Kim, Y.N. Liu, S. Miyazaki, Ageing-induced two-stage R-phase transformation in Ti-50.9at.%Ni, Acta Materialia 52(2) (2004) 487-499.

DOI: 10.1016/j.actamat.2003.09.032

[8] X. Wang, S. Kustov, K. Li, D. Schryvers, B. Verlinden, J. Van Humbeeck, Effect of nanoprecipitates on the transformation behavior and functional properties of a Ti–50.8 at.% Ni alloy with micron-sized grains, Acta Materialia 82 (2015) 224-233.

DOI: 10.1016/j.actamat.2014.09.018

[9] Y.Y. Zhan, L. He, X.F. Lu, X.L. Zhu, Q. Chen, The Effect of Ageing Treatment on Shape-Setting and Shape Memory Effect of a NiTi SMA Corrugated Structure, Adv. Mater. Sci. Eng. 2020 (2020) 11.

DOI: 10.1155/2020/2846721

[10] C.B. Ke, S. Cao, X.P. Zhang, Phase field modeling of Ni-concentration distribution behavior around Ni4Ti3 precipitates in NiTi alloys, Comp Mater Sci 105 (2015) 55-65.

DOI: 10.1016/j.commatsci.2015.04.013

[11] E.A. Prokofiev, J.A. Burow, E.J. Payton, R. Zarnetta, G. Eggeler, Suppression of Ni4Ti3 Precipitation by Grain Size Refinement in Ni㏑ich NiTi Shape Memory Alloys, Advanced Engineering Materials 12(8) (2010) 747-753.

DOI: 10.1002/adem.201000101

[12] B. Sun, J. Lin, M.W. Fu, Dependence of processing window and microstructural evolution on initial material state in direct electric resistance heat treatment of NiTi alloy, Materials & Design 139 (2018) 549-564.

DOI: 10.1016/j.matdes.2017.11.044

[13] Y. Zhang, S. Jiang, M. Wang, Atomistic investigation on superelasticity of NiTi shape memory alloy with complex microstructures based on molecular dynamics simulation, International Journal of Plasticity 125 (2020) 27-51.

DOI: 10.1016/j.ijplas.2019.09.001

[14] X. Shi, L. Cui, D. Jiang, C. Yu, F. Guo, M. Yu, Y. Ren, Y. Liu, Grain size effect on the R-phase transformation of nanocrystalline NiTi shape memory alloys, Journal of Materials Science 49(13) (2014) 4643-4647.

DOI: 10.1007/s10853-014-8167-6

[15] B. Feng, X.G. Kong, S.J. Hao, Y.N. Liu, Y. Yang, H. Yang, F.M. Guo, D.Q. Jiang, T.T. Wang, Y. Ren, L.S. Cui, In-situ synchrotron high energy X-ray diffraction study of micro-mechanical behaviour of R phase reorientation in nanocrystalline NiTi alloy, Acta Materialia 194 (2020) 565-576.

DOI: 10.1016/j.actamat.2020.05.004

[16] K. Otsuka, X. Ren, Physical metallurgy of Ti–Ni-based shape memory alloys, Progress in Materials Science 50(5) (2005) 511-678.

DOI: 10.1016/j.pmatsci.2004.10.001

[17] G. Fan, W. Chen, S. Yang, J. Zhu, X. Ren, K. Otsuka, Origin of abnormal multi-stage martensitic transformation behavior in aged Ni-rich Ti–Ni shape memory alloys, Acta Materialia 52(14) (2004) 4351-4362.

DOI: 10.1016/j.actamat.2004.06.002
