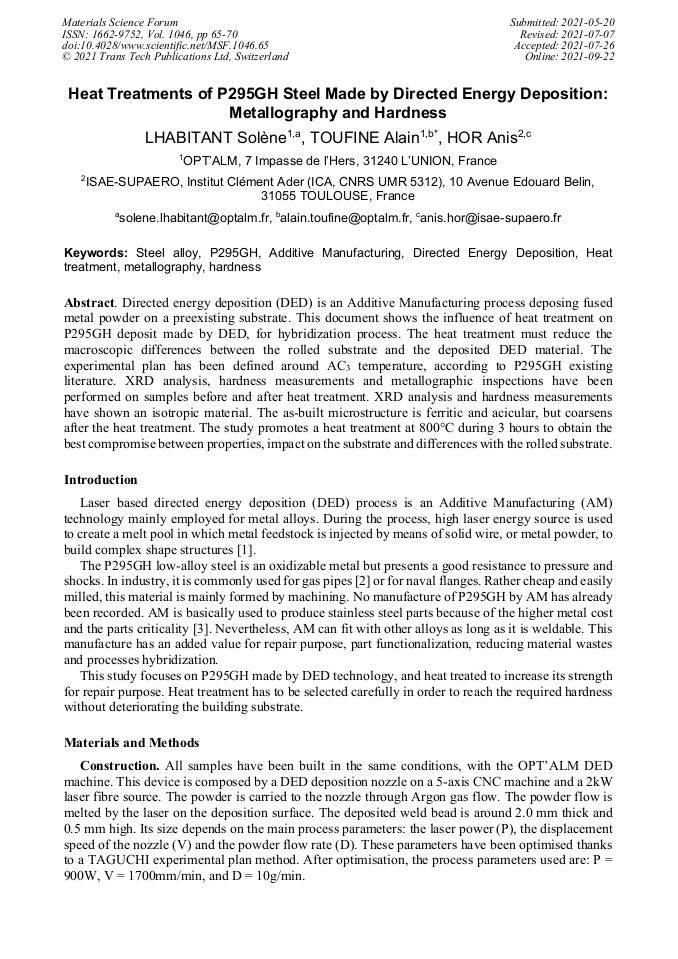

Heat Treatments of P295GH Steel Made by Directed Energy Deposition: Metallography and Hardness

Abstract:

Directed energy deposition (DED) is an Additive Manufacturing process deposing fused metal powder on a preexisting substrate. This document shows the influence of heat treatment on P295GH deposit made by DED, for hybridization process. The heat treatment must reduce the macroscopic differences between the rolled substrate and the deposited DED material. The experimental plan has been defined around AC₃ temperature, according to P295GH existing literature. XRD analysis, hardness measurements and metallographic inspections have been performed on samples before and after heat treatment. XRD analysis and hardness measurements have shown an isotropic material. The as-built microstructure is ferritic and acicular, but coarsens after the heat treatment. The study promotes a heat treatment at 800°C during 3 hours to obtain the best compromise between properties, impact on the substrate and differences with the rolled substrate.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1046)

Pages:

65-70

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1046.65

Citation:

Cite this paper

Online since:

September 2021

Authors:

Solène Lhabitant, Alain Toufine*, Anis Hor

Keywords:

Additive Manufacturing, Directed Energy Deposition, Hardness, Heat Treatment, Metallography, P295GH, Steel Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Breteau, F. Barbe. Fabrication additive métallique : technologies et opportunités. (2015).

Google Scholar

[2] M. Mihaliková. Evaluation of the Weld on In-service Gas Pipeline. International Journal of Electrochemical Science. 11 (2016) 4206-4218.

Google Scholar

[3] M. Miedzinski. Materials for Additive Manufacturing by Direct Energy Deposition. (2017).

Google Scholar

[4] W. Provost. Effects of a stress relief heat treatment on the toughness of pressure vessel quality steels welded with high heat input processes. International Journal of Pressure Vessels and Piping. 9 (1981) 125-154.

DOI: 10.1016/0308-0161(81)90024-7

Google Scholar

[5] S. Naganathan, A. Sreenivasalu, A. S. N. Rao. Electroslag Welding of Boiler Drums in India. Welding Research Supplement. (1973). 125-134.

Google Scholar

[6] M. Hagarová, D. Jakubéczyová, G. Baranová, M. Fujda. Evaluation of mechanical properties of gas pipeline DN 500 after more than 40 years of its operation. Koroze a ochrana materialu. 62 (2018) 115-120.

DOI: 10.2478/kom-2018-0016

Google Scholar

[7] D. A. Alazawi, D. M. Hussein, L. E. N. Ekpeni. Fatigue behaviora study of ferritic-martensitic cryogenically treated using 17Mn4 steel. Diyala Journal of Engineering Sciences. 8 (2015) 31-739.

Google Scholar
