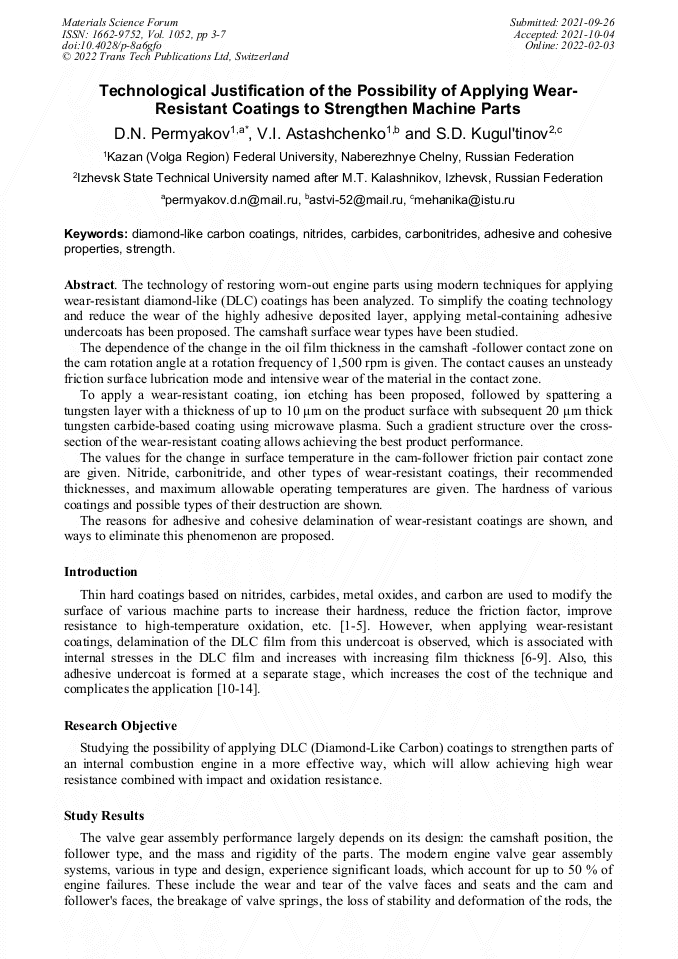

Technological Justification of the Possibility of Applying Wear-Resistant Coatings to Strengthen Machine Parts

Abstract:

The technology of restoring worn-out engine parts using modern techniques for applying wear-resistant diamond-like (DLC) coatings has been analyzed. To simplify the coating technology and reduce the wear of the highly adhesive deposited layer, applying metal-containing adhesive undercoats has been proposed. The camshaft surface wear types have been studied.The dependence of the change in the oil film thickness in the camshaft -follower contact zone on the cam rotation angle at a rotation frequency of 1,500 rpm is given. The contact causes an unsteady friction surface lubrication mode and intensive wear of the material in the contact zone.To apply a wear-resistant coating, ion etching has been proposed, followed by spattering a tungsten layer with a thickness of up to 10 μm on the product surface with subsequent 20 μm thick tungsten carbide-based coating using microwave plasma. Such a gradient structure over the cross-section of the wear-resistant coating allows achieving the best product performance.The values ​​for the change in surface temperature in the cam-follower friction pair contact zone are given. Nitride, carbonitride, and other types of wear-resistant coatings, their recommended thicknesses, and maximum allowable operating temperatures are given. The hardness of various coatings and possible types of their destruction are shown.The reasons for adhesive and cohesive delamination of wear-resistant coatings are shown, and ways to eliminate this phenomenon are proposed.

• Periodical: Materials Science Forum (Volume 1052)
• Pages: 3-7
• DOI: https://doi.org/10.4028/p-8a6gfo
• Online since: February 2022
• Authors: D.N. Permyakov*, V.I. Astashchenko, S.D. Kugul'tinov
• Keywords: Ahesive and Cohesive Properties, Carbides, Carbonitrides, Diamond-Like Carbon Coatings, Nitrides, Strength

References

[1] D.A. Loktev, E.A. Yamashkin, The main types of wear-resistant coatings, Nanoindustry Scientific and Technical Journal. 5 (2007) 24-30.

[2] P.A. Topolyansky, S.A. Ermakov, N.A. Sosnin, A.P. Topolyansky, Comparative analysis of the wear-resistant coatings properties to increase the resistance of drills, Journal of Metalloobrabotka. 4(76) (2013) 28-54.

[3] A.S. Vereshchaka, I.P. Tretyakov, Cutting Tools with Wear-Resistant Coatings, Mashinostroenie, Moscow, (1986).

[4] S. V. Kas'yanov, A. G. Kondrashov, D. T. Safarov, Rapid assessment of wear-resistant tool coatings, Journal of Russian Engineering Research. 11(37) (2017) 969-973.

DOI: 10.3103/s1068798x17110065

[5] V.N. Gilman, I.P. Balabanov, A.I. Faskhutdinov, Improving the efficiency of shaving through the use of wear-resistant coatings, Journal of Materials Science and Engineering. 570 (2019) 1-5.

DOI: 10.1088/1757-899x/570/1/012024

[6] R.H. Petrmichl, W. Jiangping, N.P. Murphy, M. Frati, J. Nunes-Regeiro, Technique to obtain heat-treated coated product using a diamond-like carbon (DLC) coating and a protective film, RU Patent 2,469,002. (2011).

[7] E.V. Vanyushina, A.V. Zhdanov, Applying DLC coatings for drive actuators, Journal of Innovative Technologies in Automated Mechanical and Valve Engineering: Proceedings of the International Scientific and Technical Conference Dedicated to the 50th Anniversary of the Technological Faculty. (2010) 176-178.

[8] M.V. Pashkov, R.M. Khisamutdinov, Diamond-Like Coatings, In the Coll.: Scientific Discoveries Collection of Papers of the 3rd International Scientific Conference. (2018) 68-76.

[9] V.V. Ilyasov, A.V. Ashkanov, O.M. Kholodov, On the issue of wear resistance of carbon films, Journal of Tribology - Mechanical Engineering Proceedings of the 12th International Scientific and Technical Conference Dedicated to the 80th Anniversary of IMACH RAS. (2018) 218-220.

[10] V.I Astashchenko, I.N. Gilazov, A comparative analysis of machining of parts from 38H2MYuA by cutting tool of different materials, IOP Conference Journal of Series: Materials Science and Engineering. 570 (2019).

DOI: 10.1088/1757-899x/570/1/012007

[11] A.A. Vereschaka, M.A. Volosova, S.N. Grigoriev, A.S. Vereschaka, Development of a wear-resistant complex for high-speed steel tool when using a process of combined cathodic vacuum arc deposition, Journal of The 2ND Global Cirp Web Conference-Beyond Modern Production: Technology for the Factories of the Future (CIRPE2013). 9 (2013) 8-12.

DOI: 10.1016/j.procir.2013.06.159

[12] B. Navinsek, Improvement of cutting tools by TiN PVD hard coating, Journal of Mater. Manuf. Process. 3 (1992) 363-382.

[13] V.V. Budilov, Vacuum Ion-Plasma Coating Technology, MAI, Moscow, (2007).

[14] I.I. Aksenov, V.E. Strelnitsky, Vacuum Arc Synthesis of Diamond-Like Carbon, Journal of Issues of Atomic Science and Technology. 3 (2002) 110-118.

[15] I.V. Kragelsky, Fundamentals of Friction and Wear Calculations, Mashinostroenie, Moscow, (1977).

[16] Yu.N. Drozdov, V.G. Pavlov, V.N. Puchkov, Friction and Wear in Experimental Conditions, Mashinostroenie, Moscow, (1986).

[17] A.S. Useinov, K.V. Gogolinsky, Mechanical Properties of Ultrathin Diamond-Like Carbon Coatings, Nanoindustria, Moscow, (2010).

[18] A.S. Useinov, K.V. Gogolinsky, V.N. Reshetov, Measurement of mechanical properties of superhard diamond-like carbon coatings, Journal of News of Higher Educational Institutions. Series: Chemistry and Chemical Technology. 7 (2011) 51-54.

[19] A.P. Semenov, M.M. Khrushchov, Impact of the environment and temperature on the tribological properties of diamond and diamond-like coatings, Scientific and Technical Journal. 2 (2010) 195-217.

[20] A.P. Semenov. Tribological properties and vacuum ion-plasma methods for obtaining diamond and diamond-like coatings, Scientific and Technical Journal. 1 (2009) 83-102.

[21] P. Maurin-Perrier, H. Christophe, L. Bombillon, Part with DLC coating and technique for applying DLC coatings, RU Patent 2,593,561. (2015).
