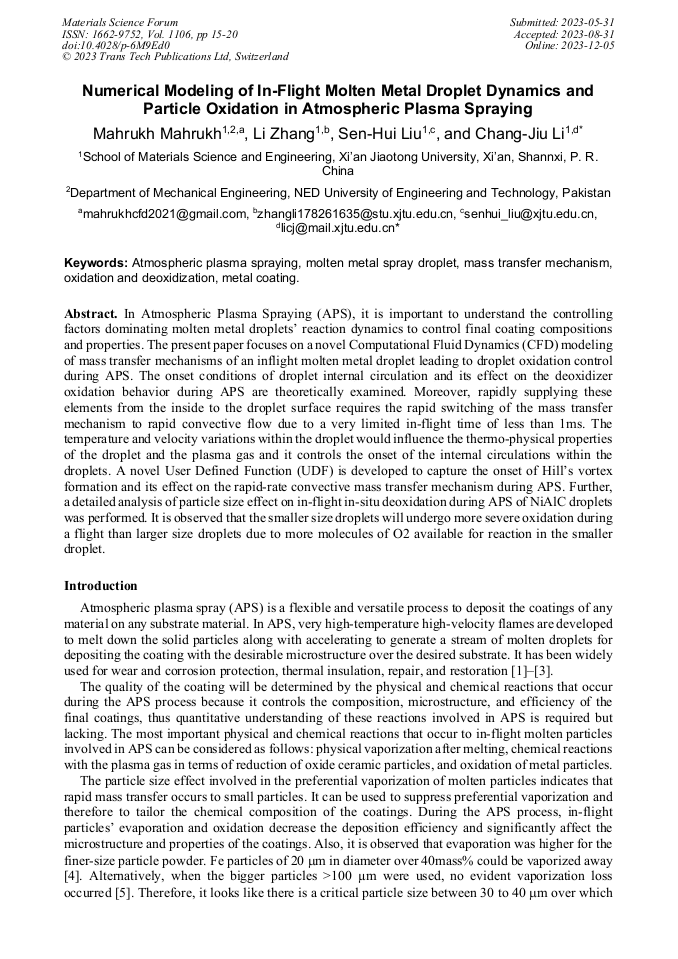

Numerical Modeling of In-Flight Molten Metal Droplet Dynamics and Particle Oxidation in Atmospheric Plasma Spraying

Abstract:

In Atmospheric Plasma Spraying (APS), it is important to understand the controlling factors dominating molten metal droplets’ reaction dynamics to control final coating compositions and properties. The present paper focuses on a novel Computational Fluid Dynamics (CFD) modeling of mass transfer mechanisms of an inflight molten metal droplet leading to droplet oxidation control during APS. The onset conditions of droplet internal circulation and its effect on the deoxidizer oxidation behavior during APS are theoretically examined. Moreover, rapidly supplying these elements from the inside to the droplet surface requires the rapid switching of the mass transfer mechanism to rapid convective flow due to a very limited in-flight time of less than 1ms. The temperature and velocity variations within the droplet would influence the thermo-physical properties of the droplet and the plasma gas and it controls the onset of the internal circulations within the droplets. A novel User Defined Function (UDF) is developed to capture the onset of Hill’s vortex formation and its effect on the rapid-rate convective mass transfer mechanism during APS. Further, a detailed analysis of particle size effect on in-flight in-situ deoxidation during APS of NiAlC droplets was performed. It is observed that the smaller size droplets will undergo more severe oxidation during a flight than larger size droplets due to more molecules of O2 available for reaction in the smaller droplet.

• Periodical: Materials Science Forum (Volume 1106)
• Pages: 15-20
• DOI: https://doi.org/10.4028/p-6M9Ed0
• Online since: December 2023
• Authors: Mahrukh Mahrukh*, Li Zhang, Sen Hui Liu, Chang Jiu Li
• Keywords: Atmospheric Plasma Spraying, Deoxidization, Mass Transfer Mechanism, Metal Coating, Molten Metal Spray Droplet, Oxidation

References

[1] P. Fauchais and A. Vardelle, Thermal sprayed coatings used against corrosion and corrosive wear, in Advanced Spray Applications, J. Hamid, Ed., InTech, 2012.

DOI: 10.5772/34448

[2] A. Vardelle, C. Moreau, N. J. Themelis, and C. Chazelas, Plasma Chem. and Plasma Proc., (2014) 491–509.

DOI: 10.1007/s11090-014-9600-y

[3] M. N. Rahaman, J. R. Gross, R. E. Dutton, and H. Wang, Acta Mater, 54 (2006) 1615–1621.

[4] A. Vardelle, M. Vardelle, H. Zhang, N. J. Themelis, and K. Gross, J. Therm. Spray Tech., 11, (2002) 244–252.

DOI: 10.1361/105996302770348907

[5] H. Zhang, Modeling of evaporation and oxidation phenomena in plasma spraying of metal powders, Columbia University, 2002.

[6] S. L. Zhang et al., J Mater Chem A Mater, 3, (2012) 7535–7553.

[7] L. S. Wang, et al., J Eur Ceram Soc, 37, (2017) 1577–1585.

[8] X. Chen, et al., J Therm. Spray Tech., (2020) 105–114.

[9] Z. Zeng, S. Kuroda, and H. Era, Surf Coat Tech., (2009) 69–77.

[10] Z. Hanwei, G. Espie, N. J. Themelis, and A. M. Vardelle, Oxidation and Evaporation of Iron Droplets in a Plasma Jet, in Proceedings of ISPC 14, (1999) 2775–2784.

[11] K. Bobzin, M. Öte, J. Schein, and S. Zimmermann, J. Therm Spray Tech., 26, (2017) 811–830.

DOI: 10.1007/s11666-017-0564-3

[12] S. H. Liu et al., J Phys D Appl Phys, 52, (2019) 335203.

[13] K. Wen et al., Surf Coat Tech., 371, (2019) 312–321.

[14] Inc. ANSYS, ANSYS Fluent Theory Guide. (2020) 552–592.

[15] W.-H. Chen, Atmos Environ, 35, (2001) 2375–2393.

[16] W.-H. Chen, Y.-Y. Chen, and C.-I. Hung, Aerosol Air Qual Res, 11 (2011) 860–872.

[17] Z. Wang, et al., Appl Therm Eng, 118, (2017) 765–772.

[18] Y. Shan and Y. Hu, J. Therm. Spray Tech. 21, (2012) 676–688.

[19] K. Wen et al., Surf Coat Tech., 371, (2019) 344–354.

[20] A. Y. Tong and W. A. Sirignano, Combust Flame, 66, (1986) p.221–235.

[21] L. Zhang, et al., J. Therm. Spray Tech., 30, (2021) 181–195.

[22] S. C. Wong and A. C. Lin, J Fluid Mech, 237, (1992) 671–687.

[23] S. Prakash and W. A. Sirignano, Int J Heat Mass Transf, 21, (1978) 885–895.
