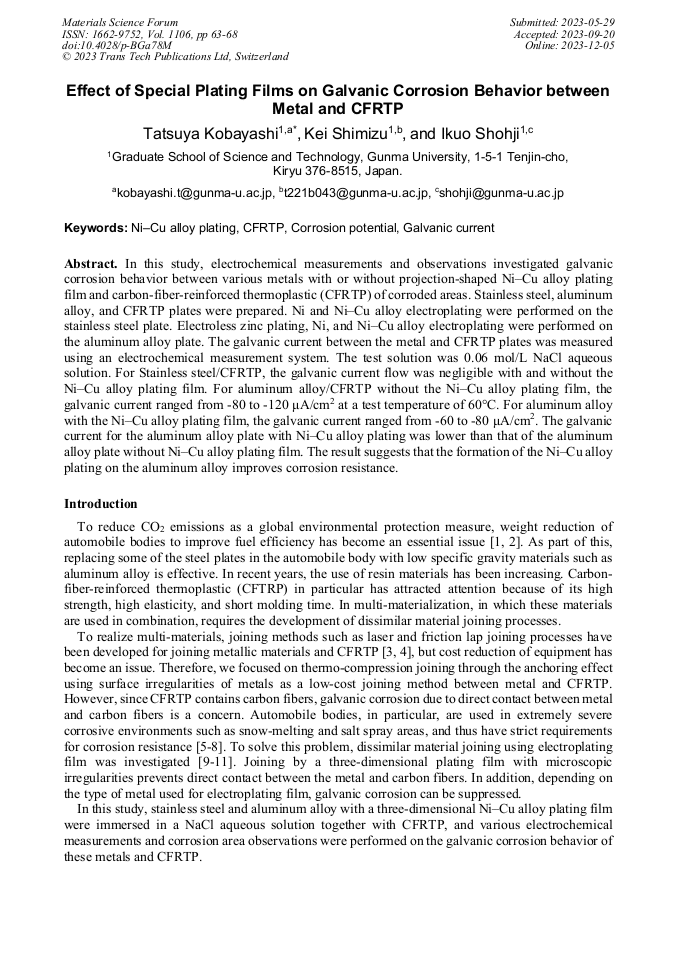

Effect of Special Plating Films on Galvanic Corrosion Behavior between Metal and CFRTP

Abstract:

In this study, electrochemical measurements and observations investigated galvanic corrosion behavior between various metals with or without projection-shaped Ni–Cu alloy plating film and carbon-fiber-reinforced thermoplastic (CFRTP) of corroded areas. Stainless steel, aluminum alloy, and CFRTP plates were prepared. Ni and Ni–Cu alloy electroplating were performed on the stainless steel plate. Electroless zinc plating, Ni, and Ni–Cu alloy electroplating were performed on the aluminum alloy plate. The galvanic current between the metal and CFRTP plates was measured using an electrochemical measurement system. The test solution was 0.06 mol/L NaCl aqueous solution. For Stainless steel/CFRTP, the galvanic current flow was negligible with and without the Ni–Cu alloy plating film. For aluminum alloy/CFRTP without the Ni–Cu alloy plating film, the galvanic current ranged from-80 to-120 μA/cm² at a test temperature of 60°C. For aluminum alloy with the Ni–Cu alloy plating film, the galvanic current ranged from-60 to-80 μA/cm². The galvanic current for the aluminum alloy plate with Ni–Cu alloy plating was lower than that of the aluminum alloy plate without Ni–Cu alloy plating film. The result suggests that the formation of the Ni–Cu alloy plating on the aluminum alloy improves corrosion resistance.

• Periodical: Materials Science Forum (Volume 1106)
• Pages: 63-68
• DOI: https://doi.org/10.4028/p-BGa78M
• Online since: December 2023
• Authors: Tatsuya Kobayashi*, Kei Shimizu, Ikuo Shohji
• Keywords: CFRTP, Corrosion Potential, Galvanic Current, Ni-Cu Alloy Plating

References

[1] G.G. Emissions, F. Economy, The EPA Automotive Trends Report (2019)

[2] H. Hinrich, U. Lambrecht, The potential contribution of light-weighting to reduce transport energy consumption, Int. J. Life Cycle Assess 12 (2007) 58-64.

[3] F. Wang, X. Jin, X. Wang, Z. Jia, B. Zhang, Numerical Investigation on the Influences of Processing Conditions on Damage in the CFRTP Cutting Using a Novel Elastic–plastic Damage Model, Appl. Compos. Mater. 29 (2022) 2063-2094.

DOI: 10.1007/s10443-022-10041-4

[4] S. Kuwashiro, N. Nakao, S. Matsuda, T. Kakibe, H. Kishi, Ionic cross-linked methacrylic copolymers for carbon fiber reinforced thermoplastic composites, Express Polym. Lett. 16 (2022) 116-129.

DOI: 10.3144/expresspolymlett.2022.10

[5] M. Shan, K. Guo, G. Gou, Z. Fu, B. Yang, W. Lu, Effect of anodizing on galvanic corrosion behavior of T300 CFRP/5083P-O Al bolted joints, Mater. Corros. 71 (2020) 409-418.

DOI: 10.1002/maco.201911235

[6] Z. Liu, Y. Li, Z. Liu, Y. Yang, Y. Li, Z. Luo, Ultrasonic welding of metal to fiber-reinforced thermoplastic composites: A review, J. Manuf. Process. 85 (2023) 702-712.

DOI: 10.1016/j.jmapro.2022.12.001

[7] C. Wu, Y.Z. Yu, L. Tam, J. Orr, L. He, Effect of glass fiber sheet in adhesive on the bond and galvanic corrosion behaviours of CFRP-Steel bonded system, Compos. Struct. 259 (2021) 113218.

DOI: 10.1016/j.compstruct.2020.113218

[8] Y. Pan, X. Wu, Z. Huang, G. Wu, S. Sun, H. Ye, Z. Zhang, A new approach to enhancing interlaminar strength and galvanic corrosion resistance of CFRP/Mg laminates, Compos. Part A Appl. Sci. Manuf. 105 (2018) 78-86.

DOI: 10.1016/j.compositesa.2017.11.009

[9] T. Kobayashi, A. Kubo, I. Shohji, Formation of Cu–Ni alloy plating film for improving adhesion between metal and resin, Mater. Trans. 63 (2022) 800-804.

DOI: 10.2320/matertrans.mt-mc2022002

[10] T. Kobayashi, I. Shohji, Joining process of dissimilar materials using three-dimensional electrodeposited Ni–Cu film, Mater. Manuf. Process. 36 (2021) 1076­1083.

DOI: 10.1080/10426914.2021.1885708

[11] T. Kobayashi, I. Shohji, Fabrication of three-dimensional microstructure film by Ni–Cu alloy electrodeposition for joining dissimilar materials, Mater. Sci. Forum 1016 (2021) 738-743.

DOI: 10.4028/www.scientific.net/msf.1016.738
