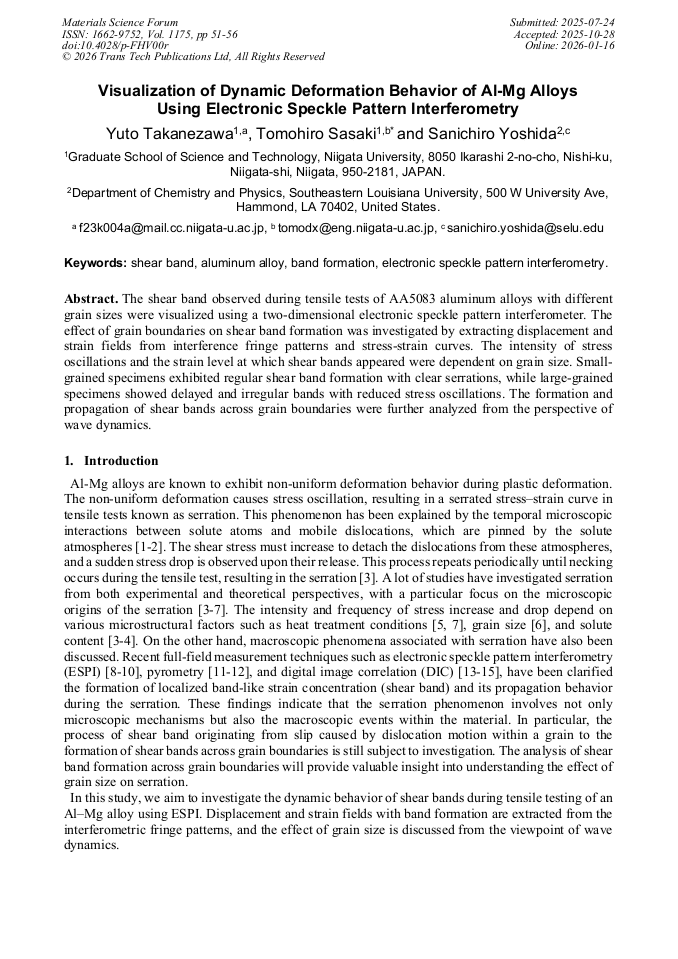

Visualization of Dynamic Deformation Behavior of Al-Mg Alloys Using Electronic Speckle Pattern Interferometry

Abstract:

The shear band observed during tensile tests of AA5083 aluminum alloys with different grain sizes were visualized using a two-dimensional electronic speckle pattern interferometer. The effect of grain boundaries on shear band formation was investigated by extracting displacement and strain fields from interference fringe patterns and stress-strain curves. The intensity of stress oscillations and the strain level at which shear bands appeared were dependent on grain size. Small-grained specimens exhibited regular shear band formation with clear serrations, while large-grained specimens showed delayed and irregular bands with reduced stress oscillations. The formation and propagation of shear bands across grain boundaries were further analyzed from the perspective of wave dynamics.

• Periodical: Materials Science Forum (Volume 1175)
• Pages: 51-56
• DOI: https://doi.org/10.4028/p-FHV00r
• Online since: January 2026
• Authors: Yuto Takanezawa*, Tomohiro Sasaki, Sanichiro Yoshida
• Keywords: Aluminum Alloy, Band Formation, Electronic Speckle Pattern Interferometry, Shear Band

References

[1] Cottrell AH, "Dislocation and Plastic Flow in Crystals", Oxford University Press 119 (1953), 551-552.

[2] McCormick, PG, "The Portevin-Le Chatelier effect in an Al-Mg-Si alloy Effet Portevin-Le Chatelier dans un alliage Al-Mg-Si Der Portevin-Le Chatelier-Effekt in einer Al-Mg-Si-Legierung", Acta Metall. 19(1971), 463-471.

DOI: 10.1016/0001-6160(71)90170-2

[3] Cottrell AH, "A note on the PorteVin-Le Chatelier effect", Philos. Mag. 44(1953), 829.

[4] Aboulfadl H, Deges J, Choi P, Raabe D, "Dynamic strain aging studied at the atomic scale", Acta Materia 86(2015), 34-42.

DOI: 10.1016/j.actamat.2014.12.028

[5] Tian B. "Ageing effect on serrated flow in Al-Mg alloys", Mater. Sci. Eng. A 349(2003), 272-278.

[6] Wen W, Morris JG, "An investigation of serrated yielding in 5000 series aluminum alloys", Mater. Sci. Eng. A 354(2003), 279-285.

DOI: 10.1016/s0921-5093(03)00017-0

[7] Ziani L. Boudrahem S, Ait-Amokhtar H, Mehenni M, Kedjar B, "Unstable plastic flow in the Al-2%Mg alloy effect of annealing process", Mater. Sci. Eng. A 536(2012), 239-243.

DOI: 10.1016/j.msea.2012.01.004

[8] Shabadi R, Kumar S, Roven HJ, Eswarahalli D, "Characterisation of PCL band parameters using laser speckle technique", Mater. Sci. Eng. A 364(2004), 140-50.

DOI: 10.1016/j.msea.2003.08.013

[9] Takahashi S, Yoshida S, Sasaki T, Hughes T, "Dynamic ESPI Evaluation of Deformation and Fracture Mechanism of 7075 Aluminum Alloy", Materials 14(2021), 1530.

DOI: 10.3390/ma14061530

[10] Yoshida S, McGibboney C, Sasaki T, "Nondestructive Evaluation of Solids Based on Deformation Wave Theory", Appl. Sci. 10(2020), 5524.

DOI: 10.3390/app10165524

[11] Ranc N, Du W, Ranc I, Wagner D, "Experimental studies of Portevin-Le Chatelier plastic instabilities in carbon-manganese steels by infrared pyrometry", Materials Science and Engineering: A 663(2016),166-173.

DOI: 10.1016/j.msea.2016.03.096

[12] Louche H, Chrysochoos A, "Thermal and dissipative effects accompanying Lüders band propagation", Materials Science and Engineering: A 307(2001), 15-22.

DOI: 10.1016/s0921-5093(00)01975-4

[13] Zheng Q, Mashiwa N, Furushima T, "Evaluation of large plastic deformation for metals by a non-contacting technique using digital image correlation with laser speckles", Materials & Design 191(2020),108626.

DOI: 10.1016/j.matdes.2020.108626

[14] Yuzbekova D, Mogucheva A, Borisova Y, Kaibyshev R, "On the mechanisms of nucleation and subsequent development of the PLC bands in an AlMg alloy", Journal of Alloys and Compounds 868(2021),159135.

DOI: 10.1016/j.jallcom.2021.159135

[15] Kang, J, Mishra, RK, Wilkinson, DS, Hopperstad OS, "Effect of Mg Content on Portevin - Le Chatelier Band Strain in Al-Mg Sheet Alloys", Phil. Mag. Letters 92(2012), 647-655.

DOI: 10.1080/09500839.2012.714082
