Cavitation Behaviors in a Tetragonal Zirconia Polycrystal Subjected to Superplastic Deformations Measured by SANS Method

Abstract:

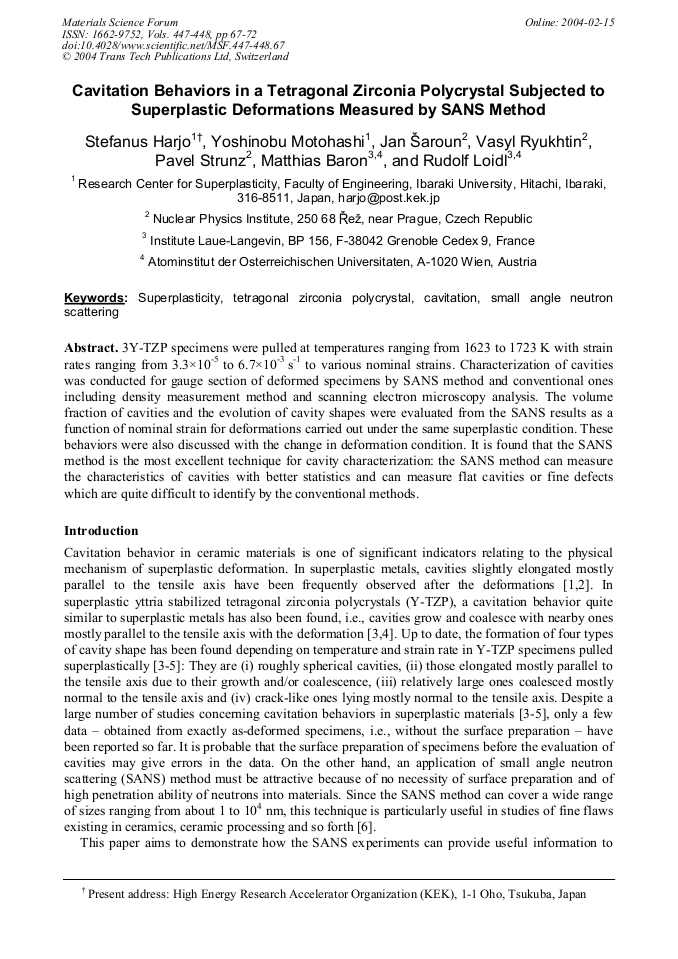

Article Preview

Info:

Periodical:

Materials Science Forum (Volumes 447-448)

Edited by:

Richard Todd

Pages:

67-72

Citation:

S. Harjo et al., "Cavitation Behaviors in a Tetragonal Zirconia Polycrystal Subjected to Superplastic Deformations Measured by SANS Method ", Materials Science Forum, Vols. 447-448, pp. 67-72, 2004

Online since:

February 2004

Export:

Price:

$41.00

[1] N. Ridley and Z. C. Wang: Superplasticity 60 years after Pearson, edited by N. Ridley (1995), p.63.

[2] D. Pulino-Sagradi, A. M. M. Nazar, J-J. Ammann and R. E. Medrano: Acta Mater. Vol. 45 (1997), p.4663.

[3] Y. Ma and T. G. Langdon: Acta Metall. Vol. 42 (1994), p.2753.

[4] Z. C. Wang, N. Ridley and T. J. Davies: J. Mater. Sci. Vol. 34 (1999), p.2695.

[5] S. Tekeli and T. J. Davies: Mater. Sci. Eng. Vol. A297 (2001), p.168.

[6] P. Strunz, J. Saroun, P. Mikula, P. Lukas and F. J. Eichhorn: J. Appl. Crystallogr. Vol. 30 (1997), p.844.

[7] S. Harjo, Y. Motohashi, N. Kojima, J. Saroun, V. Ryukhtin, P. Strunz and P. Lukas: PRICM4, Dec 11- 15, 2001 Vols. 1-2 (2001), p. (2057).

[8] S. Harjo, N. Kojima, Y. Motohashi, J. Saroun, V. Ryukhtin, P. Strunz, R. Loidl and M. Baron: Mater. Trans., JIM Vol. 43 (2002), p.2480.

[9] R. F. Reidy, A. J. Allen and S. Krueger: J. Non-Cryst. Solids Vol. 285 (2001), p.181.

[10] S. Harjo, N. Kojima and Y. Motohashi: in preparation.

[11] V. Ryukhtin, J. Šaroun, S. Harjo, Y. Motohashi, A. Wiedenmann and P. Strunz: submitted to ECNS 2003, Montpellier, 3-6 September 2003. (a) 500 µm500 µm fractured part (b) (c) 20 µm20 µm fractured part 500 µm500 µm (c) (a) 500 µm500 µm fractured part (b) (c) 20 µm20 µm fractured part 500 µm500 µm (c) Fig. 8 Appearances of cavities: (a) in specimen deformed to failure (490%) under PSC; and (b)-(c) in specimen deformed to failure (170%) under HSC.

DOI: https://doi.org/10.7554/elife.13571.009
