The Mechanism of Ultrasonic Vibration Improving MRR in UEDM in Gas

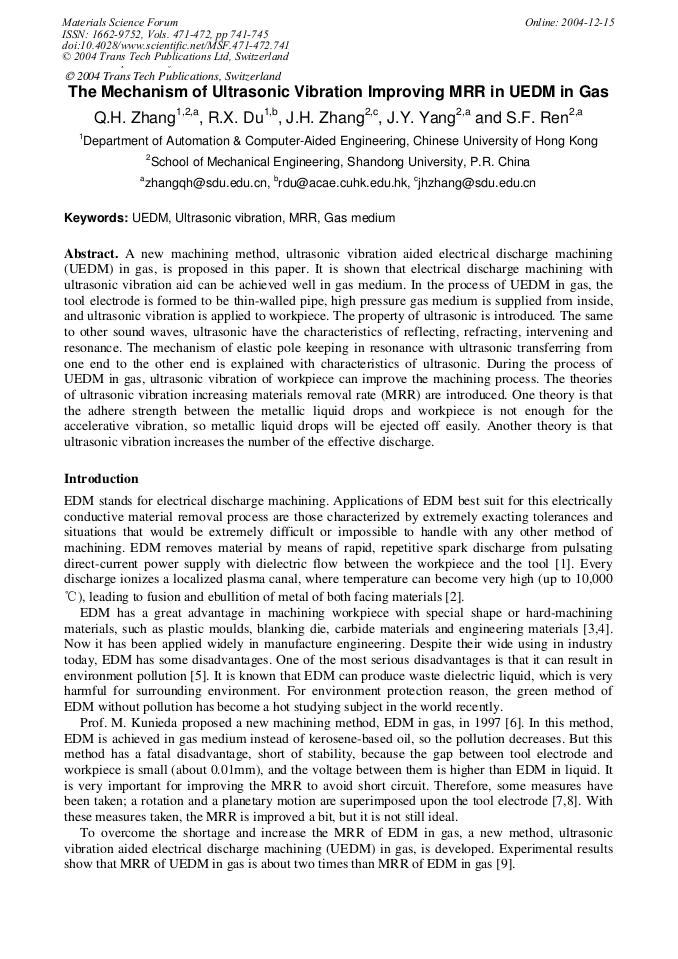

Abstract:

A new machining method, ultrasonic vibration aided electrical discharge machining (UEDM) in gas, is proposed in this paper. It is shown that electrical discharge machining with ultrasonic vibration aid can be achieved well in gas medium. In the process of UEDM in gas, the tool electrode is formed to be thin-walled pipe, high pressure gas medium is supplied from inside, and ultrasonic vibration is applied to workpiece. The property of ultrasonic is introduced. The same to other sound waves, ultrasonic have the characteristics of reflecting, refracting, intervening and resonance. The mechanism of elastic pole keeping in resonance with ultrasonic transferring from one end to the other end is explained with characteristics of ultrasonic. During the process of UEDM in gas, ultrasonic vibration of workpiece can improve the machining process. The theories of ultrasonic vibration increasing materials removal rate (MRR) are introduced. One theory is that the adhere strength between the metallic liquid drops and workpiece is not enough for the accelerative vibration, so metallic liquid drops will be ejected off easily. Another theory is that ultrasonic vibration increases the number of the effective discharge.

• Periodical: Materials Science Forum (Volumes 471-472)
• Pages: 741-745
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.471-472.741
• Online since: December 2004
• Authors: Qin He Zhang, Ru Du, Jian Hua Zhang, J.Y. Yang, Sheng Feng Ren
• Keywords: Gas Medium, MRR, UEDM, Ultrasonic Vibration

References

[1] J.C. Rebelo, A.M. Dias and D. Kremer et al: J. Mater. Process. Technol. Vol. 84 (1998), p.90.

[2] D. Kremer, J.L. Lebrun, B. Hosari et al: Ann. CIRP Vol. 38 (1989), p.199.

[3] C.C. Wang and B.H. Yan: J. Mater. Process. Technol. Vol. 102 (2000), p.90.

[4] S.M. Pandit and K.P. Rajurkar: Ann. CIRP Vol. 30 (1981), p.111.

[5] M.H. Li: Nontraditional Machining Technology (Defense Industry Press. 1989) (in Chinese).

[6] M. Kunieda and M. Yoshida: Annals of the CIRP Vol. 46(1) (1997), p.143.

[7] S.L. Xu: Proceeding of the Ninth Special Machining Technology in China, Suzhou City (2001), p.97 (in Chinese).

[8] W.S. Zhao, Y.F. Guo and C.M. Geng: Proceeding of the Ninth Special Machining Technology in China, Suzhou City (2001), p.6 (in Chinese).

[9] Q.H. Zhang, J.H. Zhang, S. F. Ren et al: J. Mater. Process. Technol. Vol. 149 (2004), p.636.

[10] J.C. Liu: Nontraditional Machining Technology (Jilin People Press, Changchun 1987) (in Chinese).
