Synthesis and Crystal Structure of New Hydrides in Mg-RE Systems under High-Pressure (RE = La, Ce, Pr)

Abstract:

Article Preview

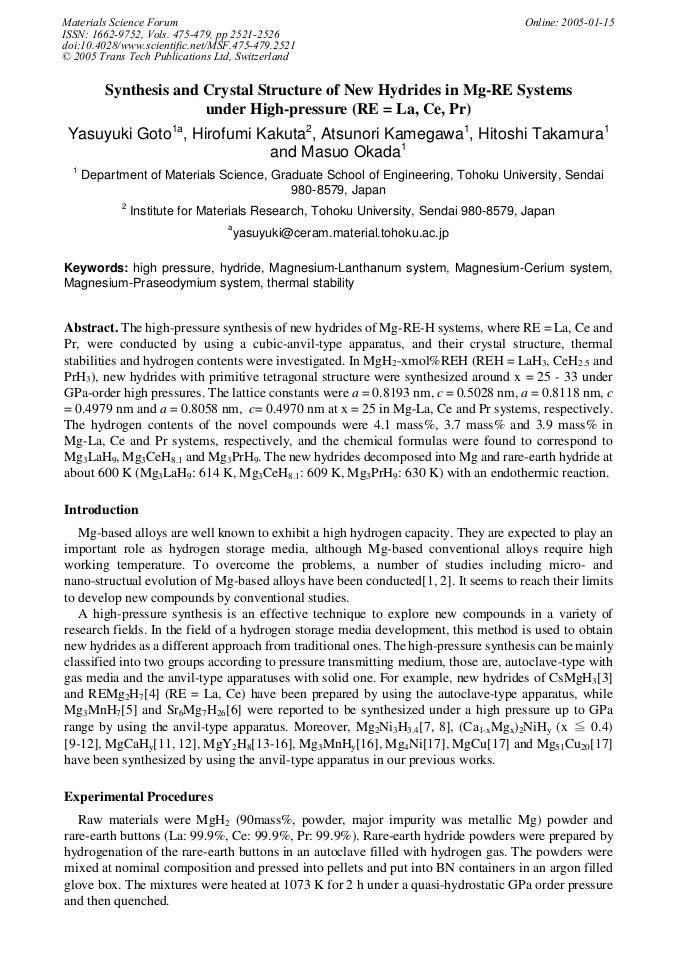

The high-pressure synthesis of new hydrides of Mg-RE-H systems, where RE = La, Ce and Pr, were conducted by using a cubic-anvil-type apparatus, and their crystal structure, thermal stabilities and hydrogen contents were investigated. In MgH2-xmol%REH (REH = LaH3, CeH2.5 and PrH3), new hydrides with primitive tetragonal structure were synthesized around x = 25 - 33 under GPa-order high pressures. The lattice constants were a = 0.8193 nm, c = 0.5028 nm, a = 0.8118 nm, c = 0.4979 nm and a = 0.8058 nm, c= 0.4970 nm at x = 25 in Mg-La, Ce and Pr systems, respectively. The hydrogen contents of the novel compounds were 4.1 mass%, 3.7 mass% and 3.9 mass% in Mg-La, Ce and Pr systems, respectively, and the chemical formulas were found to correspond to Mg3LaH9, Mg3CeH8.1 and Mg3PrH9. The new hydrides decomposed into Mg and rare-earth hydride at about 600 K (Mg3LaH9: 614 K, Mg3CeH8.1: 609 K, Mg3PrH9: 630 K) with an endothermic reaction.

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie

Pages:

2521-2526

Citation:

Y. Goto et al., "Synthesis and Crystal Structure of New Hydrides in Mg-RE Systems under High-Pressure (RE = La, Ce, Pr)", Materials Science Forum, Vols. 475-479, pp. 2521-2526, 2005

Online since:

January 2005

Export:

Price:

$38.00

[1] S. Orimo, H. Fujii and K. Ikeda: Acta mater. 45 (1997) 331-341.

[2] M. Herrich, N. Ismail, J. Lyubia, A. Pratt and O. Gutfleisch: Mater. Sci. Engng B 108 (2004) 28-32.

[3] B. Bertheville, P. Fischer and K. Yvon: J. Alloys Comp. 330-332 (2002) 152-156.

[4] F. Gingl, K. Yvon, T. Vogt and A. Hewat: J. Alloys Comp. 253-254 (1999) 125-129.

[5] M. Bortz, B. Bertheville, K. Yvon, E. A. Movlaev, V. N. Verbetsky, and F. Fauth: J. Alloys Comp. 279 (1998) L8-L10.

[6] B. Bertheville and K. Yvon: J. Alloys Comp. 288 (1999) 197-199.

[7] H. Kakuta, A. Kamegawa, H. Takamura and M. Okada: Mater. Sci. Forum. 350-351 (2000) 329-332.

[8] H. Takamura, H. Kakuta, A. Kamegawa and M. Okada: J. Alloys Comp. 330-332 (2002) 157-161.

[9] H. Kakuta, T. Miyashita, Y. Goto, A. Kamegawa, H. Takamura and M. Okada: Mater. Trans. 42 (2001) 443-445.

[10] H. Takamura, H. Kakuta, Y. Goto, A. Kamegawa and M. Okada: Mater. Trans. 42 (2001) 1301-1304.

[11] Y. Goto, H. Kakuta, A. Kamegawa, H. Takamura and M. Okada: Mater. Trans. 42 (2001) 1850-1853.

[12] Y. Goto, H. Kakuta, A. Kamegawa, H. Takamura, M. Okada: PRICM4, JIM, (2001), 1219-1222.

[13] Y. Goto, A. Kamegawa, H. Takamura, M. Okada: Mater. Trans. 43 (2002) 2717-2720.

[14] H. Takamura, Y. Goto, A. Kamegawa, M. Okada: Mater. Trans. 44 (2003) 583-588.

[15] H. Takamura, Y. Goto, A. Kamegawa, M. Okada: Mater. Sci. Forum. 419-422 (2003) 983-988.

[16] Y. Goto, H. Kakuta, A. Kamegawa, H. Takamura and M. Okada: Sci. Tech. Adv. Mater. 4 (2003) 333-338.

[17] H. Watanabe, Y. Goto, H. Kakuta, A. Kamegawa and M. Okada: Mater. Trans. 45 (2004) 1350-1354.
