Simulation Study of Thermal Buoyance Influence on Flow Characteristic in Single Outlet Tundish

Abstract:

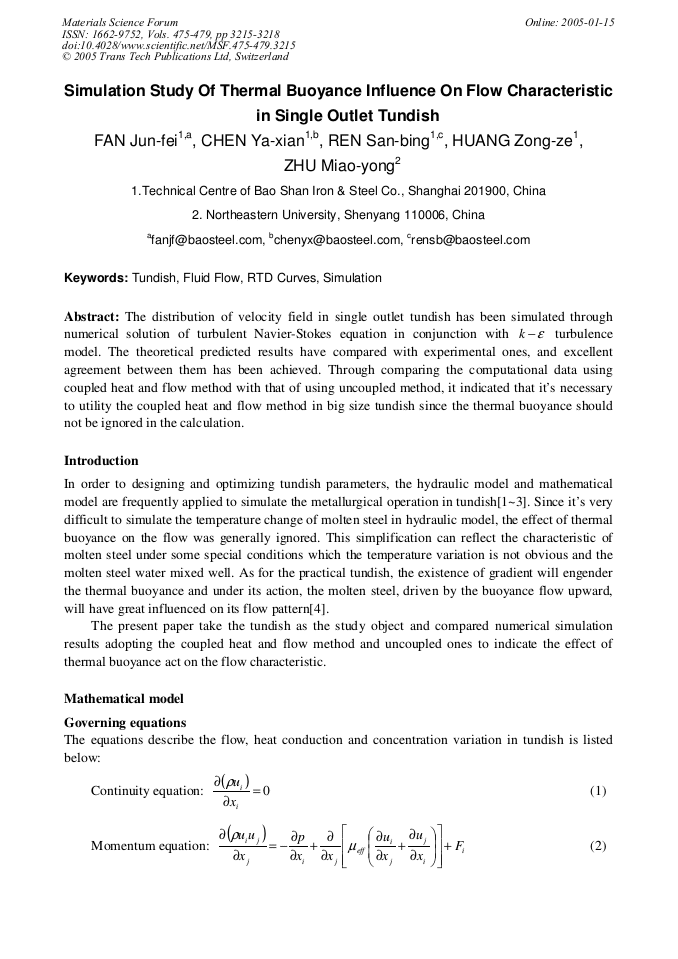

Article Preview

The distribution of velocity field in single outlet tundish has been simulated through numerical solution of turbulent Navier-Stokes equation in conjunction with e − k turbulence model. The theoretical predicted results have compared with experimental ones, and excellent agreement between them has been achieved. Through comparing the computational data using coupled heat and flow method with that of using uncoupled method, it indicated that it’s necessary to utility the coupled heat and flow method in big size tundish since the thermal buoyance should not be ignored in the calculation.

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie

Pages:

3215-3218

Citation:

J. F. Fan et al., "Simulation Study of Thermal Buoyance Influence on Flow Characteristic in Single Outlet Tundish", Materials Science Forum, Vols. 475-479, pp. 3215-3218, 2005

Online since:

January 2005

Export:

Price:

$38.00

[1] Patankar S V. Numerical Heat Transfer and Fluid Flow [J]. New York: Hemisphere Pub. Corp., 1980: 1.

[2] Kirshenbaum A D, Cahill J A. Trans AIME, 1962; 224: 816.

[3] Launder B E, Spalding D B. Mathematical Models of Turbulence [J]. London: Academic Press, 1972: 1.

[4] Chakraborty S and Sahai Y. Ironmaking and Steelmaking, 1992, 19: 487.

0 0 . 5 1 . 0 1 . 5 2 . 0 2 . 5 3 . 0 3 . 5.

0.

2.

4.

6.

8.

[1] 0 Dimensionless Concentration D im e n sio n le ss T im e U n c o u p le d C o u p le d Fig. 12 RTD curves comparison (1#).

0 0. 5 1. 0 1. 5 2. 0 2. 5 3. 0 3. 5.

0.

2.

4.

6.

8.

[1] 0 Dimensionless Concentration Dim ensionless Tim e Uncoupled Coupled Fig. 13 RTD curves comparison (2#) 1# tundish 2# tundish Item Uncoupled Coupled Err(%) Uncoupled Coupled Err(%) Ta(s) 437. 45 413. 49 -5. 48 173. 16 167. 37 -3. 34 Vp(%) 35. 50 30. 71 -13. 49 44. 60 43. 66 -2. 11 Vm(%) 57. 86 61. 47 6. 24 50. 78 51. 71� 1. 83.
