Electric Charge Trapping and Transport at Medium Fields in Low-Density Polyethylene

José N. Marat-Mendes; Eugen R. Neagu; Rodica M. Neagu

doi:10.4028/www.scientific.net/MSF.480-481.495

Paper Titles

Iron/Graphite Core-Shell Structured Nanoparticles Prepared by Annealing of Nanopowder
p.469

Preparation of Lead Iodide as Input Material for X-Ray Detectors
p.477

Novel Approach to Preparation of InP Layers for Radiation Detectors
p.483

Characterization by Electron Diffraction of Two Thermodynamical Phases of Precipitation in Nb-Microalloyed Steels
p.489

Electric Charge Trapping and Transport at Medium Fields in Low-Density Polyethylene
p.495

Space Charge Studies of Aged XLPE Using Combined Isothermal and Thermostimulated Current Measurements
p.501

The Analysis of Space Charge Behavior in Nylon 11
p.507

Characterization of Polyethylene Foams under Compressive Impact Loading
p.513

Optical Properties of GaN on Si Substrate Using Plasma-Assisted MOCVD Technique in the Infrared and Visible Regions
p.519

HomeMaterials Science ForumMaterials Science Forum Vols. 480-481Electric Charge Trapping and Transport at Medium...

Electric Charge Trapping and Transport at Medium Fields in Low-Density Polyethylene

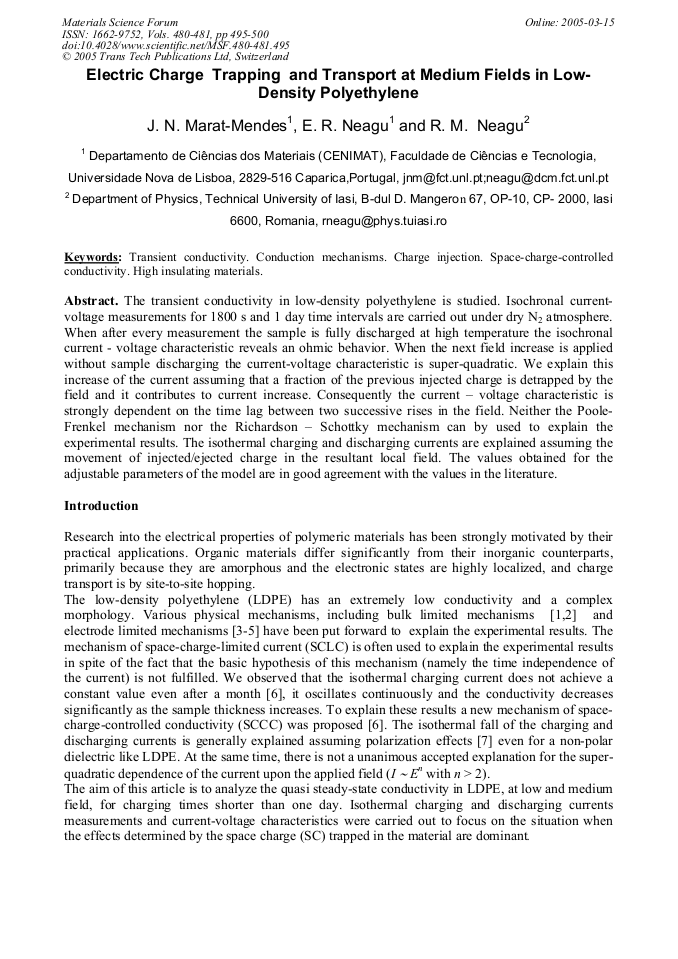

Abstract:

The transient conductivity in low-density polyethylene is studied. Isochronal currentvoltage measurements for 1800 s and 1 day time intervals are carried out under dry N2 atmosphere. When after every measurement the sample is fully discharged at high temperature the isochronal current - voltage characteristic reveals an ohmic behavior. When the next field increase is applied without sample discharging the current-voltage characteristic is super-quadratic. We explain this increase of the current assuming that a fraction of the previous injected charge is detrapped by the field and it contributes to current increase. Consequently the current – voltage characteristic is strongly dependent on the time lag between two successive rises in the field. Neither the Poole-Frenkel mechanism nor the Richardson – Schottky mechanism can by used to explain the experimental results. The isothermal charging and discharging currents are explained assuming the movement of injected/ejected charge in the resultant local field. The values obtained for the adjustable parameters of the model are in good agreement with the values in the literature.
