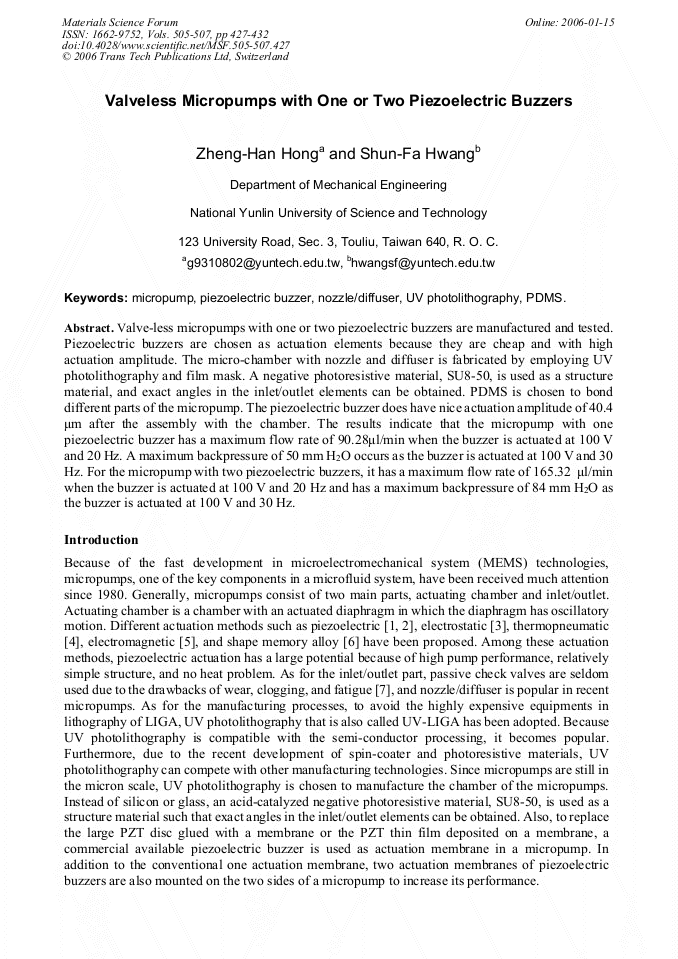

Valveless Micropumps with One or Two Piezoelectric Buzzers

Abstract:

Valve-less micropumps with one or two piezoelectric buzzers are manufactured and tested. Piezoelectric buzzers are chosen as actuation elements because they are cheap and with high actuation amplitude. The micro-chamber with nozzle and diffuser is fabricated by employing UV photolithography and film mask. A negative photoresistive material, SU8-50, is used as a structure material, and exact angles in the inlet/outlet elements can be obtained. PDMS is chosen to bond different parts of the micropump. The piezoelectric buzzer does have nice actuation amplitude of 40.4 μm after the assembly with the chamber. The results indicate that the micropump with one piezoelectric buzzer has a maximum flow rate of 90.28μl/min when the buzzer is actuated at 100 V and 20 Hz. A maximum backpressure of 50 mm H2O occurs as the buzzer is actuated at 100 V and 30 Hz. For the micropump with two piezoelectric buzzers, it has a maximum flow rate of 165.32 μl/min when the buzzer is actuated at 100 V and 20 Hz and has a maximum backpressure of 84 mm H2O as the buzzer is actuated at 100 V and 30 Hz.

You might also be interested in these eBooks

Progress on Advanced Manufacture for Micro/Nano Technology 2005

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 505-507)

Pages:

427-432

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.505-507.427

Citation:

Cite this paper

Online since:

January 2006

Authors:

Zheng Han Hong, Shun Fa Hwang

Keywords:

Diffuser, Micro Pump, Nozzle, PDMS (Polydimethylsiloxane), Piezoelectric Buzzer, UV Photolithography

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.H. Park and K. Yoshida: Pergamon Mechatronics, 9, 687 (1999).

Google Scholar

[2] M. Koch and N. Harris: Sensors and Actuators A, 70, 98 (1998).

Google Scholar

[3] M.T.B. Saif, E. Alaca and H. Sehitoglu: IEEE Journal of Microelectromechanical Systems, 8(3), 335 (1999).

Google Scholar

[4] O.C. Jeong and S.S. Yang: Sensors and Actuators A, 83, 249 (2000).

Google Scholar

[5] J. Jang and S.S. Lee: Sensors and Actuators A, 80, 84 (2000).

Google Scholar

[6] D. Xu and L. Wang: Sensors and Actuators A, 93, 87 (2001).

Google Scholar

[7] A. Olsson, G. Stemme and E. Stemme: Sensors and Actuators A, 46, 549 (1995).

Google Scholar

[8] A. Olsson: Valve-less Diffuser Micropumps, Instrumentation Laboratory, Department of Signals, Sensors and Systems, Royal Institute of Technology, (1998).

Google Scholar
