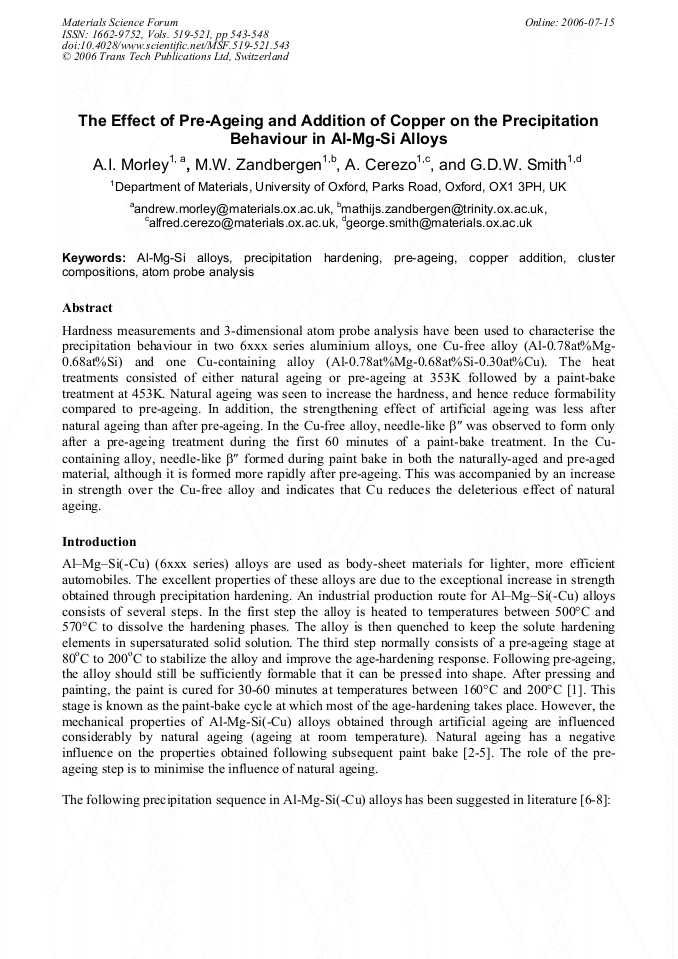

The Effect of Pre-Ageing and Addition of Copper on the Precipitation Behaviour in Al-Mg-Si Alloys

Abstract:

Hardness measurements and 3-dimensional atom probe analysis have been used to characterise the precipitation behaviour in two 6xxx series aluminium alloys, one Cu-free alloy (Al-0.78at%Mg- 0.68at%Si) and one Cu-containing alloy (Al-0.78at%Mg-0.68at%Si-0.30at%Cu). The heat treatments consisted of either natural ageing or pre-ageing at 353K followed by a paint-bake treatment at 453K. Natural ageing was seen to increase the hardness, and hence reduce formability compared to pre-ageing. In addition, the strengthening effect of artificial ageing was less after natural ageing than after pre-ageing. In the Cu-free alloy, needle-like β″ was observed to form only after a pre-ageing treatment during the first 60 minutes of a paint-bake treatment. In the Cucontaining alloy, needle-like β″ formed during paint bake in both the naturally-aged and pre-aged material, although it is formed more rapidly after pre-ageing. This was accompanied by an increase in strength over the Cu-free alloy and indicates that Cu reduces the deleterious effect of natural ageing.

• Periodical: Materials Science Forum (Volumes 519-521)
• Pages: 543-548
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.519-521.543
• Online since: July 2006
• Authors: A.I. Morley, M.W. Zandbergen, Alfred Cerezo, George D.W. Smith
• Keywords: Al-Mg-Si, Atom Probe Analysis, Cluster Compositions, Copper Addition, Pre-Aging, Precipitation Hardening

References

[1] O. Engler and J. Hirsch: Mater. Sci. Eng. A. Vol. 336 (2002), p.249.

[2] L. Zhen and S.B. Kang: Scripta Mater. Vol. 36 (1997), p.1089.

[3] J.D. Bryant: Metall. Mater. Trans. A. Vol. 30A (1999), p. (1999).

[4] M. Murayama, K. Hono, W.F. Miao and D.E. Laughlin: Metall. Mater. Trans. A Vol. 32 (2001), p.239.

[5] S. Esmaeili, X. Wang, D.J. Lloyd and W.J. Poole: Metall. Mater. Trans. A Vol. 34 (2003), p.751.

[6] C. Ravi and C. Wolverton: Acta Mater. Vol. 52 (2004), p.4213.

[7] D.J. Chakrabarti and D.E. Laughlin: Progress Mat. Sci. Vol. 49 (2004), p.389.

[8] S.J. Andersen, C.D. Marioara, A. Froseth, R. Vissers and H.W. Zandbergen: Mater Sci. Eng. A. Vol. 390 (2005), p.127.

[9] A.K. Gupta, D.J. Lloyd and S.A. Court: Mater. Sci. Eng. A. Vol. 316 (2001), p.11.

[10] W.F. Miao and D.E. Laughlin: Metall. Mater. Trans. A Vol. 31 (2000), p.361.

[11] M. Murayama, K. Hono, W.F. Miao and D.E. Laughlin: Metall. Mater. Trans. A Vol. 32 (2001), p.239.

[12] D. Vaumousse: DPhil thesis, University of Oxford (2003).

[13] M.K. Miller, A. Cerezo, M.G. Hetherington and G.D.W. Smith: Atom Probe Field Ion Microscopy (Oxford University Press, United Kingdom 1996).

[14] M.K. Miller: Atom Probe Tomography: Analysis at the Atomic Level (Kluwer Academic/Plenum Publisher, New York 2000).

[15] A. Cerezo, T.J. Godfrey, S.J. Sijbrandij, P.J. Warren, and G.D.W. Smith: Rev. Sci. Instrum. Vol. 69 (1998), p.49.

[16] D. Vaumousse, A. Cerezo and P.J. Warren: Ultramicroscopy Vol. 95 (2003), p.215.

[17] S.M. Hirt, G.J. Marshall, S.A. Court and D.J. Lloyd: Mater. Sci. Eng. A. Vol. 319-321 (2001), p.452.

[18] H.W. Zandbergen, S.J. Andersen and J. Jansen: Science Vol. 277 (1997), p.1221.
