3D Coupled Thermomechanical Finite Element Analysis of Ultrasonic Consolidation

Abstract:

A 3-D coupled temperature-displacement finite element analysis is performed to study an ultrasonic consolidation process. Results show that ultrasonic wave is effective in causing deformation in aluminum foils. Ultrasonic vibration leads to an oscillating stress field. The oscillation of stress in substrate lags behind the ultrasonic vibration by about 0.1 cycle of ultrasonic wave. The upper foil, which is in contact with the substrate, has the most severe deformation. The substrate undergoes little deformation. Apparent material softening by ultrasonic wave, which is of great concern for decades, is successfully simulated. The higher the friction coefficient, the more obvious the apparent material softening effect.

You might also be interested in these eBooks

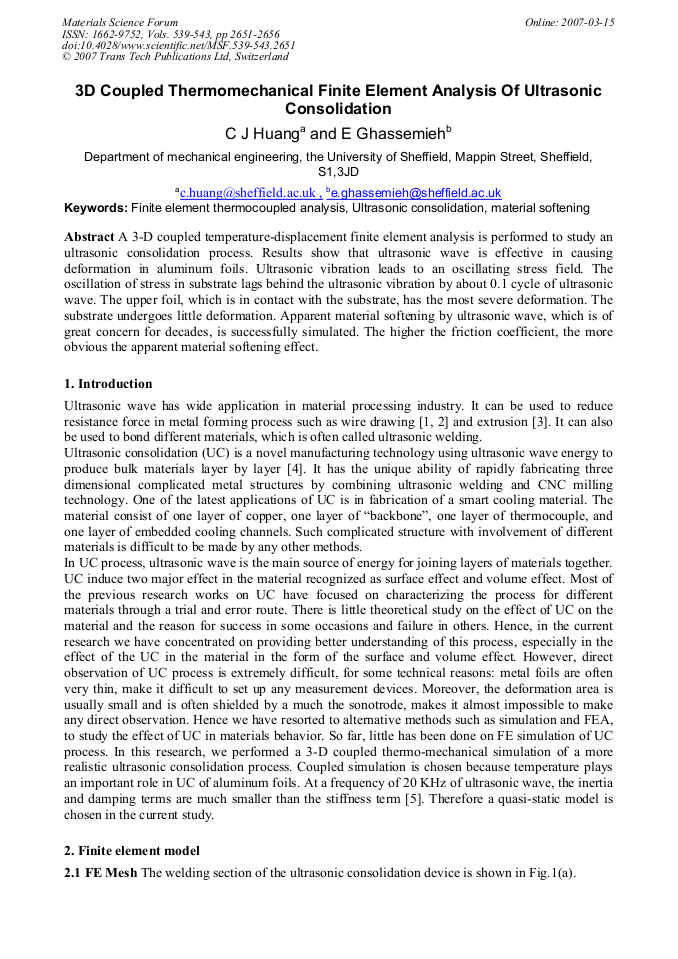

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 539-543)

Pages:

2651-2656

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.539-543.2651

Citation:

Cite this paper

Online since:

March 2007

Authors:

C.J. Huang, E. Ghassemieh

Keywords:

Finite Element Thermocoupled Analysis, Material Softening, Ultrasonic Consolidation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Hayashi, M.J., and S. Thipprakmaset al., Simulation of ultrasonic-vibration drawing using the finite element method (FEM). J. Mater. Proc., 2003. 140: pp.30-35.

Google Scholar

[2] M. Murakawa and M. Jin, The utility of radially and ultrasonically vibrated dies in the wire drawing process. Journal of Materials Processing TechnologyThe utility of radially and ultrasonically vibrated dies in the wire drawing process. Journal of Materials Processing Technology. J. Mater. Proc., 2001. 113: pp.81-86.

DOI: 10.1016/s0924-0136(01)00635-5

Google Scholar

[3] J.B. Jones, Ultrasonic metal deformation processing. International conerence on manufaturing technology, 1967: pp.983-1006.

Google Scholar

[4] C.F. Cheers, Design and optimization of an ultrasonic die system for forming metal cans. Loughborough University of Technology. 1995, Loughborough University: Loughborough.

Google Scholar

[5] Y. Gao and C. Dounamidis, Mechanical Analysis of Ultrasonic Bonding for Rapid Prototyping. Trans. ASME, 2002. 124: pp.426-434.

Google Scholar

[6] J.R. Davis, Aluminium and aluminium alloys. 1993, Ohio: ASM international, The materials information society. Equation 2.

Google Scholar
