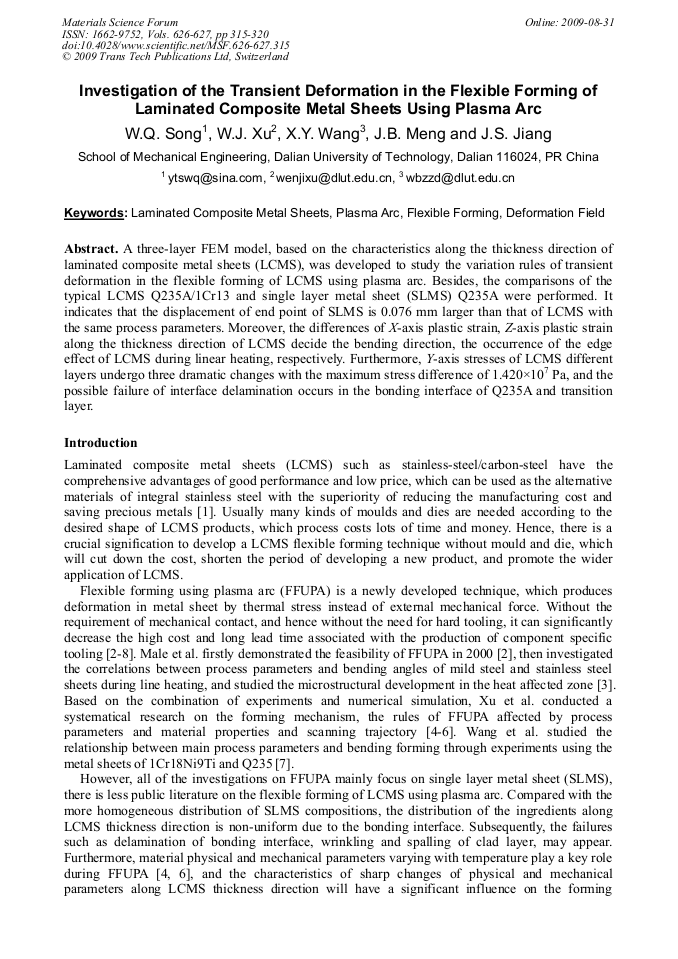

Investigation of the Transient Deformation in the Flexible Forming of Laminated Composite Metal Sheets Using Plasma Arc

Abstract:

A three-layer FEM model, based on the characteristics along the thickness direction of laminated composite metal sheets (LCMS), was developed to study the variation rules of transient deformation in the flexible forming of LCMS using plasma arc. Besides, the comparisons of the typical LCMS Q235A/1Cr13 and single layer metal sheet (SLMS) Q235A were performed. It indicates that the displacement of end point of SLMS is 0.076 mm larger than that of LCMS with the same process parameters. Moreover, the differences of X-axis plastic strain, Z-axis plastic strain along the thickness direction of LCMS decide the bending direction, the occurrence of the edge effect of LCMS during linear heating, respectively. Furthermore, Y-axis stresses of LCMS different layers undergo three dramatic changes with the maximum stress difference of 1.420×107 Pa, and the possible failure of interface delamination occurs in the bonding interface of Q235A and transition layer.

• Periodical: Materials Science Forum (Volumes 626-627)
• Pages: 315-320
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.626-627.315
• Online since: August 2009
• Authors: Wen Qing Song, Wen Ji Xu, Xu Yue Wang, J.B. Meng, Ji Shang Jiang
• Keywords: Deformation Field, Flexible Forming, Laminated Composite Metal Sheet, Plasma Arc

References

[1] A.K. Motarjemi, M. Kocak and V. Ventzke: International Journal of Pressure Vessels and Piping Vol. 79 (2002), p.181.

[2] P.J. Li, Y.M. Chen, A.T. Male and Y.M. Zhang: Journal of Engineering Manufacture Vol. 214 (2) (2000), p.117.

[3] A.T. Male, Y.W. Chen, C. Pan and Y.M. Zhang: Journal of Materials Processing Technology Vol. 135 (2003), p.340.

[4] W.J. Xu, J.C. Fang, X.Y. Wang, T. Wang, F. Liu and Z.Y. Zhao: Journal of Materials Processing Technology Vol. 164-165 (2005), p.1644.

[5] W.B. Wu, W.J. Xu, Z.Y. Wang and J.J. Zhou: Materials Science Forum Vol. 532-533 (2006), p.508.

[6] W.B. Wu, W.J. Xu, Z.Y. Wang and J.J. Zhou: International Journal of Manufacturing Technology and Management Vol. 13 (2) (2008), p.254.

[7] M.L. Wang, L.J. Yang, Y. Wang: Materials Science Forum Vol. 532-533 (2006), p.93.

[8] W.Q. Song, W.J. Xu, X.Y. Wang and J.C. Fang: Proceedings of the 1st Symposium on Hybrid Materials and Processing (HyMaP '08) (Pusan, Korea, October 27-29, 2008).

[9] The Editorial Board of Mechanical Engineering Handbook of Material Performance: Mechanical Engineering Handbook of Material Performance (Mechanical Industry Publishing House, China 1995). (in Chinese).

[10] Z.M. Zeng: Mechanical Engineering Material Handbook (Mechanical Industry Publishing House, China 2003). (in Chinese).
