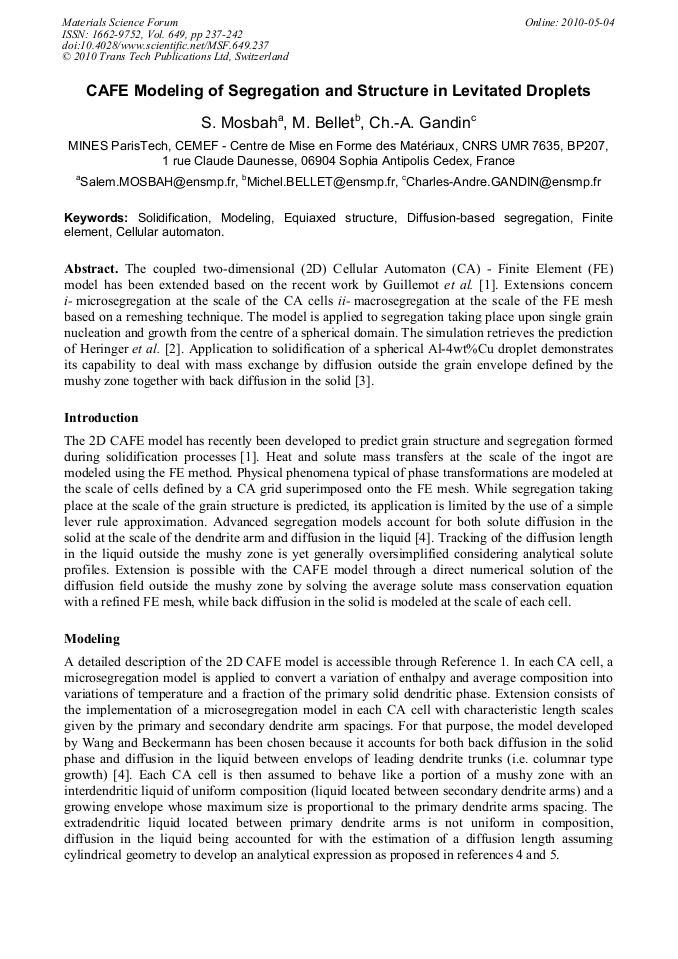

CAFE Modeling of Segregation and Structure in Levitated Droplets

Abstract:

The coupled two dimensional (2D) Cellular Automaton (CA) Finite Element (FE) model has been extended based on the recent work by Guillemot et al. [1]. Extensions concern i microsegregation at the scale of the CA cells ii macrosegregation at the scale of the FE mesh based on a remeshing technique. The model is applied to segregation taking place upon single grain nucleation and growth from the centre of a spherical domain. The simulation retrieves the prediction of Heringer et al. [2]. Application to solidification of a spherical Al-4wt%Cu droplet demonstrates its capability to deal with mass exchange by diffusion outside the grain envelope defined by the mushy zone together with back diffusion in the solid [3].

• Periodical: Materials Science Forum (Volume 649)
• Pages: 237-242
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.649.237
• Online since: May 2010
• Authors: Salem Mosbah, Michel Bellet, Charles-André Gandin
• Keywords: Cellular Automaton (CA), Diffusion-Based Segregation, Equiaxed Structure, Finite Element, Modeling, Solidification

References

[1] Guillemot G., Gandin Ch. -A., Bellet M. Journal of Crystal Growth 2007; 303: 58.

[2] Heringer R., Gandin Ch. -A., Lesoult G., Henein H. Acta Materialia 2006; 54: 4427.

DOI: 10.1016/j.actamat.2006.05.015

[3] Gandin Ch. -A., Mosbah S., Volkmann Th., Herlach D.M. Acta Materialia 2008; 56: 3023.

DOI: 10.1016/j.actamat.2008.02.041

[4] Wang C. Y., Beckermann C. Metallurgical Transactions A 1993; 24: 2787.

[5] Martorano M. A., Beckermann C., Gandin Ch. -A. Metall. Mater. Trans. A 2003; 34: 1657.

[6] Alauzet F., Frey P.J. Rapport de Recherche INRIA mars 2003 ; N° 4759.

[7] Hamide M., Massoni E., Bellet M., Int J. Num Meth. Eng. 2008; 73: 624.

[8] Gruau C., Coupez T., Computer Methods Appl. Mech. Engrg. 2005; 194: 4951.

[9] Ramirez J. C., Beckermann, C, Karma, A, Diepers H. -J., Phys. Rev. E 2004; 69: 051607.
