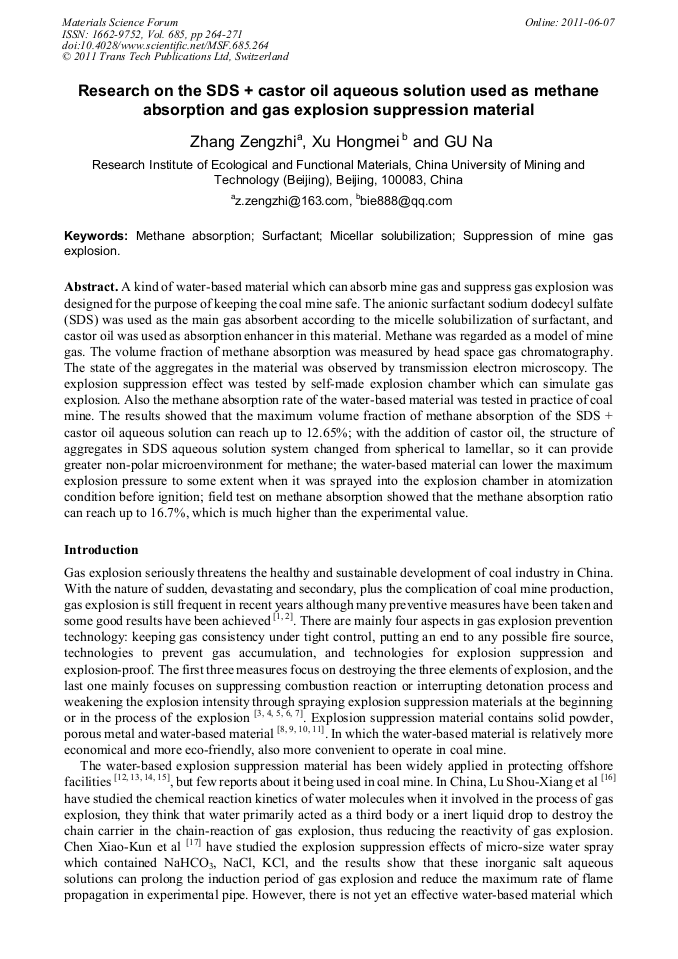

Research on the SDS + Castor Oil Aqueous Solution Used as Methane Absorption and Gas Explosion Suppression Material

Abstract:

A kind of water-based material which can absorb mine gas and suppress gas explosion was designed for the purpose of keeping the coal mine safe. The anionic surfactant sodium dodecyl sulfate (SDS) was used as the main gas absorbent according to the micelle solubilization of surfactant, and castor oil was used as absorption enhancer in this material. Methane was regarded as a model of mine gas. The volume fraction of methane absorption was measured by head space gas chromatography. The state of the aggregates in the material was observed by transmission electron microscopy. The explosion suppression effect was tested by self-made explosion chamber which can simulate gas explosion. Also the methane absorption rate of the water-based material was tested in practice of coal mine. The results showed that the maximum volume fraction of methane absorption of the SDS + castor oil aqueous solution can reach up to 12.65%; with the addition of castor oil, the structure of aggregates in SDS aqueous solution system changed from spherical to lamellar, so it can provide greater non-polar microenvironment for methane; the water-based material can lower the maximum explosion pressure to some extent when it was sprayed into the explosion chamber in atomization condition before ignition; field test on methane absorption showed that the methane absorption ratio can reach up to 16.7%, which is much higher than the experimental value.

• Periodical: Materials Science Forum (Volume 685)
• Pages: 264-271
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.685.264
• Online since: June 2011
• Authors: Zengzhi ZHANG, Hong Mei Xu, Na Gu
• Keywords: Methane Absorption, Micellar Solubilization, Suppression of Mine Gas Explosion, Surfactant

References

[1] L. Liu, Y. Liu, M.J. Liu: Statistic analysis on fatal accidents in China coal mines from 2002 to 2003 (in Chinese). Coal Science and Technology, 2005, 33(1): 7-10.

[2] Y.Z. Liu , L.H. Zhang: Statistical analysis of gas accident s in coal mines from January 2003 to June 2005 (in Chinese). Journal of Henan Polytechnic University, 2005, 24(4): 259-262.

[3] S.N. Zhou: Strategy seminars for prevention theory of gas disaster of coal mine (in Chinese). 1st ed. Xuzhou: China University of Mining Publishing House, 2001, 20-25.

[4] G.Y. Fei: Reasons and control measures for gas and dust explosion of coal mine (in Chinese). Mining Safety & Environmental Protection, 2002, 29(6): 4-6.

[5] G.Y. Fei, Z.B. Zhou: Development of a new type of barrier to suppress weak explosions (in Chinese). Mining Safety & Environmental Protection, 1998, 3: 7-9.

[6] Z.Q. Cai: Research on the MGS-type of seal explosion-suppression water bag (in Chinese). Mining Safety & Environmental Protection, 2004, 31(3): 11-14.

[7] Y.H. Wang, X.Q. He, E.Y. Wang: Function analysis of explosion-proof compartment in coal mine (in Chinese). Jiangsu Coal, 2003, 1: 30-32.

[8] H. Wen, Q.H. Wang, Z.M. Luo, et al. : Experiment on Al(OH)3 ultrafine powder suppressing methane explosion (in Chinese). Journal of Xi'an University of Science and Technology, 2009, 29(4): 388-403.

[9] H. Zhang, W. Wang, J. Deng: Research on technologies of nanopowders used as mine gas explosion controlling material (in Chinese). Modern coal mines, 2005, 2: 43-44.

[10] C. Zhou, J.L. Yu, Y.J. Liu, et al. : Investigation development of the explosion-suppression characters of multiplayer mesh-hole construction (in Chinese). Coal Mine Safety, 2004, 35(3): 6-13.

[11] Y. Lin: Experiment research on controlling of gas explosion by water-depressant (in Chinese). Master degree thesis. Xi'an: Xi'an University of Science and Technology, 2006. 1-10.

[12] V.W. Kees, W. Brian: The influence of water sprays on gas explosions. Part1: water-spray-generated turbulence. Loss Prev. Process Ind, 1995, 8(2): 53-59.

DOI: 10.1016/0950-4230(95)00002-i

[13] V.W. Kees, W. Brian, B. Jorn, et al. : The influence of water sprays on gas explosions. Part 2: mitigation. Loss Prev. Process Ind, 1995, 8(2): 61-70.

[14] G.O. Thomas: On the conditions required for explosion mitigation by water sprays. Trans IChemE, 2000, 78: 339-354.

[15] G.O. Thomas, A. Jones, D.H. Edwards: Influence of water sprays on explosion development in fuel—air mixtures. Combust Sci Technology, 1991, 80: 47.

DOI: 10.1080/00102209108951776

[16] S.X. Lu, J. He, C.H. Yu, et al. : Mechanism of gas explosion suppression by water (in Chinese). Journal of China Coal Society, 1998, 23(4): 417-421.

[17] X.K. Chen, Y. Lin, Z.M. Luo, et al. : Experiment study on controlling gas explosion by water-depressant (in Chinese). Journal of China Coal Society, 2006, 31(5): 603-606.

[18] B.Z. Peng, G.J. Chen, H. Luo, et al. : Solubility measurement of methane in aqueous solution of sodium dodecyl sulfate at ambient temperature and near hydrate conditions. Journal of Colloid and Interface Science, 2006, 304(2): 558-561.

DOI: 10.1016/j.jcis.2006.09.002

[19] I.B.C. Matheson, A.D. King: Solubility of gases in micellar solutions. J Colloid Inter Sci, 1978, 66(3): 464-469.

DOI: 10.1016/0021-9797(78)90066-8

[20] M.T. Hai, B.X. Han, G.Y. Yan, et al. : Effect of NaCl, NaOH, and Poly (ethylene oxide) on methane solubilization in sodium dodecyl sulfate solutions. Langmuir, 1999, 15(5): 1640-1643.

DOI: 10.1021/la980626r

[21] A.A. Pena, C.A. Miller: Solubilization rates of oils in solutions and their relationship to mass transport in emulsions. Advances in Colloid and Interface Science, 2006, 123-126: 241-257.

DOI: 10.1016/j.cis.2006.05.005

[22] J. Weiss, J.N. Coupland, D. Brathwaite, et al. : Influence of molecular structure of hydrocarbon emulsion droplets on their solubilization in nonionic surfactant micelles. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 1997, 121(1): 53-60.

DOI: 10.1016/s0927-7757(96)03742-9

[23] G.Q. Guan: Research on instantaneous mass transfer from moving microdroplet surfaces (In Chinese). Doctoral dissertation. Chengdu: Sichuan University, 2004: 12-16.
