Perspectives for the Application of Variable Thickness Aluminium Tubes in Hydroforming of Complex Tubes

Abstract:

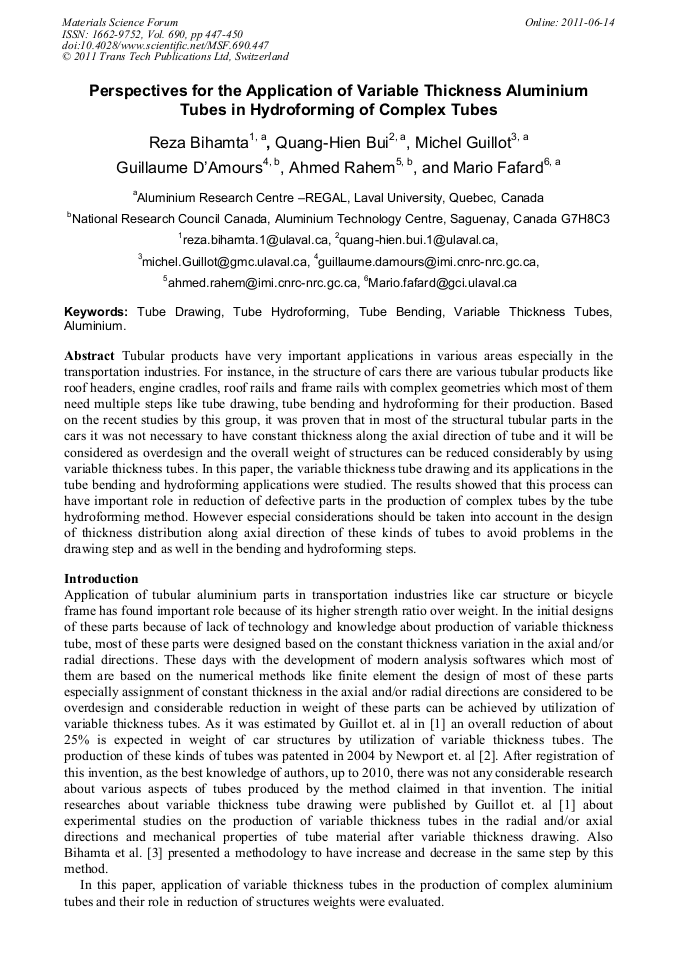

Tubular products have very important applications in various areas especially in the transportation industries. For instance, in the structure of cars there are various tubular products like roof headers, engine cradles, roof rails and frame rails with complex geometries which most of them need multiple steps like tube drawing, tube bending and hydroforming for their production. Based on the recent studies by this group, it was proven that in most of the structural tubular parts in the cars it was not necessary to have constant thickness along the axial direction of tube and it will be considered as overdesign and the overall weight of structures can be reduced considerably by using variable thickness tubes. In this paper, the variable thickness tube drawing and its applications in the tube bending and hydroforming applications were studied. The results showed that this process can have important role in reduction of defective parts in the production of complex tubes by the tube hydroforming method. However especial considerations should be taken into account in the design of thickness distribution along axial direction of these kinds of tubes to avoid problems in the drawing step and as well in the bending and hydroforming steps.

• Periodical: Materials Science Forum (Volume 690)
• Pages: 447-450
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.690.447
• Online since: June 2011
• Authors: Reza Bihamta, Quang Hien Bui, Michel Guillot, Guillaume D'Amours, Ahmed Rahem, Mario Fafard
• Keywords: Aluminum (Al), Tube Bending, Tube Drawing, Tube Hydro Forming, Variable Thickness Tube
