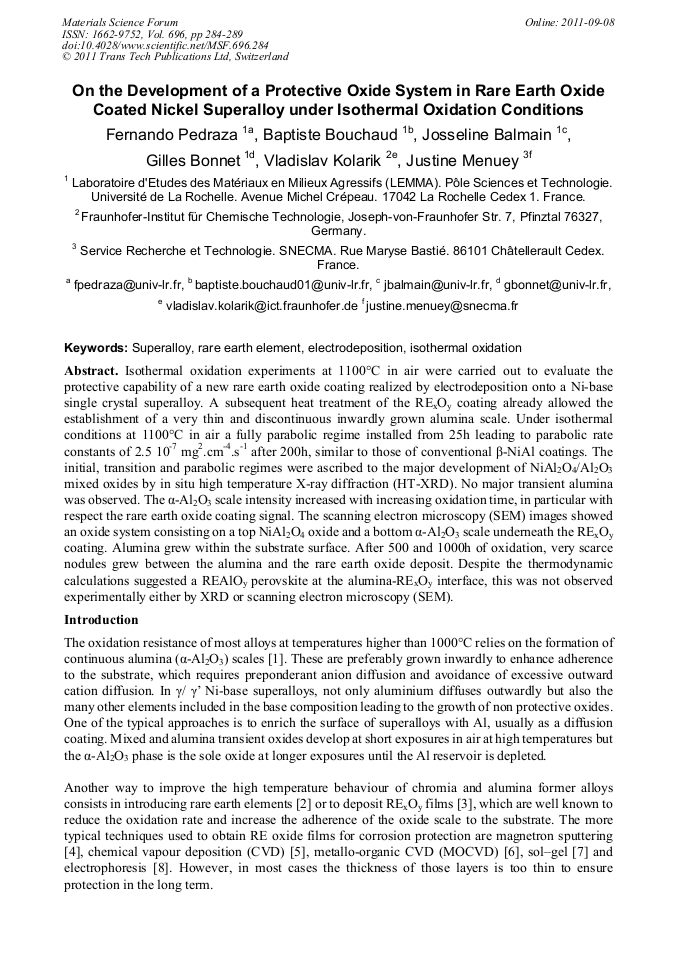

On the Development of a Protective Oxide System in Rare Earth Oxide Coated Nickel Superalloy under Isothermal Oxidation Conditions

Abstract:

Isothermal oxidation experiments at 1100°C in air were carried out to evaluate the protective capability of a new rare earth oxide coating realized by electrodeposition onto a Ni-base single crystal superalloy. A subsequent heat treatment of the RE_xO_y coating already allowed the establishment of a very thin and discontinuous inwardly grown alumina scale. Under isothermal conditions at 1100°C in air a fully parabolic regime installed from 25h leading to parabolic rate constants of 2.5 10^-7 mg².cm^-4.s^-1 after 200h, similar to those of conventional β-NiAl coatings. The initial, transition and parabolic regimes were ascribed to the major development of NiAl₂O₄/Al₂O₃ mixed oxides by in situ high temperature X-ray diffraction (HT-XRD). No major transient alumina was observed. The α-Al₂O₃ scale intensity increased with increasing oxidation time, in particular with respect the rare earth oxide coating signal. The scanning electron microscopy (SEM) images showed an oxide system consisting on a top NiAl₂O₄ oxide and a bottom α-Al₂O₃ scale underneath the RE_xO_y coating. Alumina grew within the substrate surface. After 500 and 1000h of oxidation, very scarce nodules grew between the alumina and the rare earth oxide deposit. Despite the thermodynamic calculations suggested a REAlO_y perovskite at the alumina-RE_xO_y interface, this was not observed experimentally either by XRD or scanning electron microscopy (SEM).

• Periodical: Materials Science Forum (Volume 696)
• Pages: 284-289
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.696.284
• Online since: September 2011
• Authors: Fernando Pedraza-Diaz, Baptiste Bouchaud, J. Balmain, G. Bonnet, Vladislav Kolarik, Justine Menuey
• Keywords: Electro-Deposition, Isothermal Oxidation, Rare Earth Element (REE), Superalloy

References

[1] F. H. Stott, G.C. Wood and J. Stringer: Oxid. Met. Vol. 8 (1995), p.113.

[2] D.P. Whittle and J. Stringer: Philos. Trans. R. Soc. Lond. Vol. A295 (1980) p.309.

[3] P.Y. Hou and J. Stringer: Mater. Sci. Technol. Vol. A202 (1995) p.1.

[4] M. Boulouz, L. Martin, A. Boulouz and A. Boyer: Mater. Sci. Eng. Vol. B67 (1999) p.122.

[5] J.L. Deschanvres, W. Meffre, J.C. Joubert, J.P. Senateur, F. Robaut, J.E. Broqui and R. Rimet: J. Alloy Compd. Vols. 275– 277 (1998) p.742.

DOI: 10.1016/s0925-8388(98)00433-2

[6] S. Chevalier, G. Bonnet and J.P. Larpin : Appl. Surf. Sci. Vol. 167 (2000) p.125.

[7] F. Czerwinski and W.W. Smeltzer: J. Electrochem. Soc. Vol. 140 (9) (1993) p.2606.

[8] G. Bonnet, G. Aguilar, J.C. Colson and J.P. Larpin: Corros. Sci. Vol. 35 (5–8) (1993) p.893.

[9] F. Pedraza, B. Bouchaud, J. Balmain, G. Bonnet and J. Menuey: Electrosynthesis of rare earth oxide coatings for high temperature applications, submitted to Mater. Sci. Vol. (2011).

DOI: 10.4028/www.scientific.net/msf.696.336

[10] B. Pieraggi: Oxid. Met. Vol. 27 (1987), p.177.

[11] Littner and M. Schütze: J. Corr. Sci. Eng. Vol. 6 (2003).

[12] S. Seal, S.C. Kuiry and L.A. Bracho: Oxid. Met. Vol. 56 (2001), p.583.

[13] S. Chevalier and J.P. Larpin: Acta Mater. Vol. 50 (2002), p.3105.

[14] J.M. Brossard, J. Balmain, A.M. Huntz and G. Bonnet: Mater. Sci. Forum Vol. 461 (2004), p.327.

[15] P.Y. Hou, A.P. Paulikas and B.W. Veal: Mat. High Temp. 22 (2005), p.535.

[16] B. Bouchaud, J. Balmain and F. Pedraza: Mater. Sci. Forum Vol. 595 (2008), p.11.

[17] V.K. Tolpygo and D.R. Clarke: Acta Mater. Vol. 52 (2004), p.5115.

[18] T. Izumi and B. Gleeson: Mater. Sci. Forum Vol. 522 (2006), p.221.

[19] : F. Pedraza, B. Bouchaud, J. Balmain, G. Bonnet and J. Menuey: Enhanced cyclic oxidation resistance of single crystal superalloy with electrolytic rare earth oxides, submitted to Mater. Sci. Forum (2011).

DOI: 10.4028/www.scientific.net/msf.696.278
