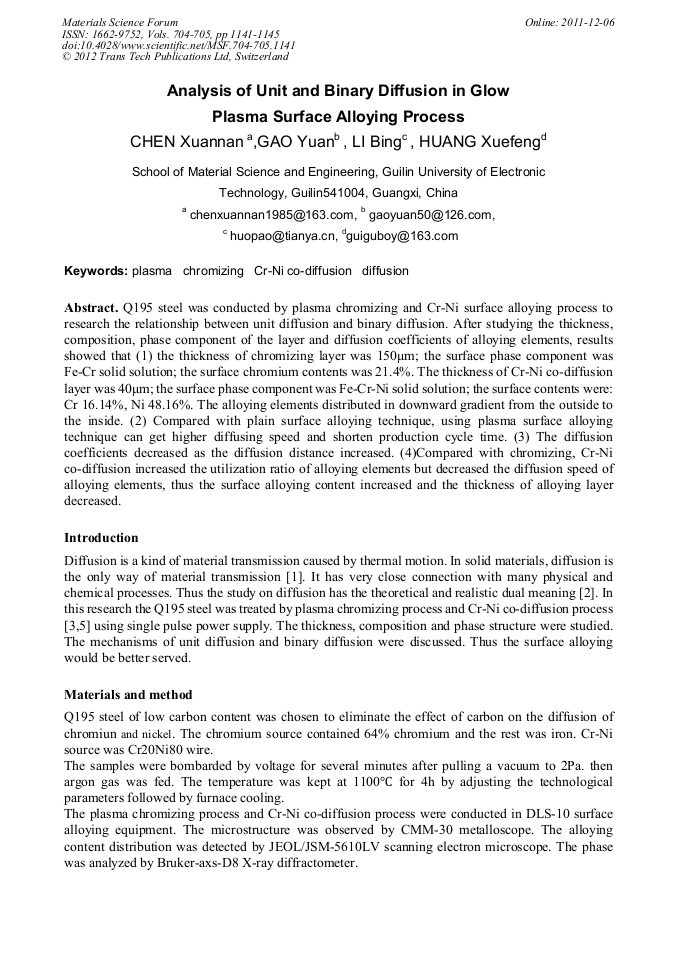

Analysis of Unit and Binary Diffusion in Glow Plasma Surface Alloying Process

Abstract:

Q195 steel was conducted by plasma chromizing and Cr-Ni surface alloying process to research the relationship between unit diffusion and binary diffusion. After studying the thickness, composition, phase component of the layer and diffusion coefficients of alloying elements, results showed that (1) the thickness of chromizing layer was 150μm; the surface phase component was Fe-Cr solid solution; the surface chromium contents was 21.4%. The thickness of Cr-Ni co-diffusion layer was 40μm; the surface phase component was Fe-Cr-Ni solid solution; the surface contents were: Cr 16.14%, Ni 48.16%. The alloying elements distributed in downward gradient from the outside to the inside. (2) Compared with plain surface alloying technique, using plasma surface alloying technique can get higher diffusing speed and shorten production cycle time. (3) The diffusion coefficients decreased as the diffusion distance increased. (4)Compared with chromizing, Cr-Ni co-diffusion increased the utilization ratio of alloying elements but decreased the diffusion speed of alloying elements, thus the surface alloying content increased and the thickness of alloying layer decreased.

• Periodical: Materials Science Forum (Volumes 704-705)
• Pages: 1141-1145
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.704-705.1141
• Online since: December 2011
• Authors: Xuan Nan Chen, Yuan Gao, Bing Li, Xue Feng Huang
• Keywords: Chromizing, Co-Diffusion, Cr-Ni, Diffusion, Plasma

References

[1] S. Deke, Fundamentals of Materials Science (China Machine Press, China 2003).

[2] W. Zhangzhong, Fundamentals of Materials Science (China Machine Press, China 2005).

[3] G. Yuan, X. Jinyong, G. Qing: submitted to Tool Engineering（2006）.

[4] Z. Weineng, H. Qi, submitted to Materials for Mechanical Engineering(1993).

[5] G. Yuan, X. Zhong, submitted to Journal of Materials Engineering ( 2006).

[6] X. Jin-yong, L. Xiang-qian, L. Yan-ping: submitted to Journal of China Society (2005).

[7] R. Yijie: Numerical Analysis and MATLAB Implementation ( higher education press, Beijing 2007).

[8] X. Cuiwei: Introduction of Calculation ( higher education press, Beijing 2002).

[9] H. Gengxiang, C. Xu: Fundamentals of Materials Science (Shanghai Jiao Tong University Press, 2000).

[10] X. Zhong, Plasma Surface Metallurgy ( Science Press, Beijing 2008).

[11] C. Zhongxi: Metal Materials and Heat Treatment ( China Machine Press, 2005).

[12] G. Yuan: submitted to Surface Alloying Process (1993).

[13] L.H. chun,W.J. Yin and Y.Q. zhi: submitted to Journal of Iron and Steel Research (1998).

[14] H.Z. shou, L.G. xi: Metallography Principle ( Shanghai Scientific &Technical Publishers, Shanghai 1990).

[15] C. Huifen: Metal Materials and Heat Treatment ( Metallurgy Industry Press, Beijing 2009).
