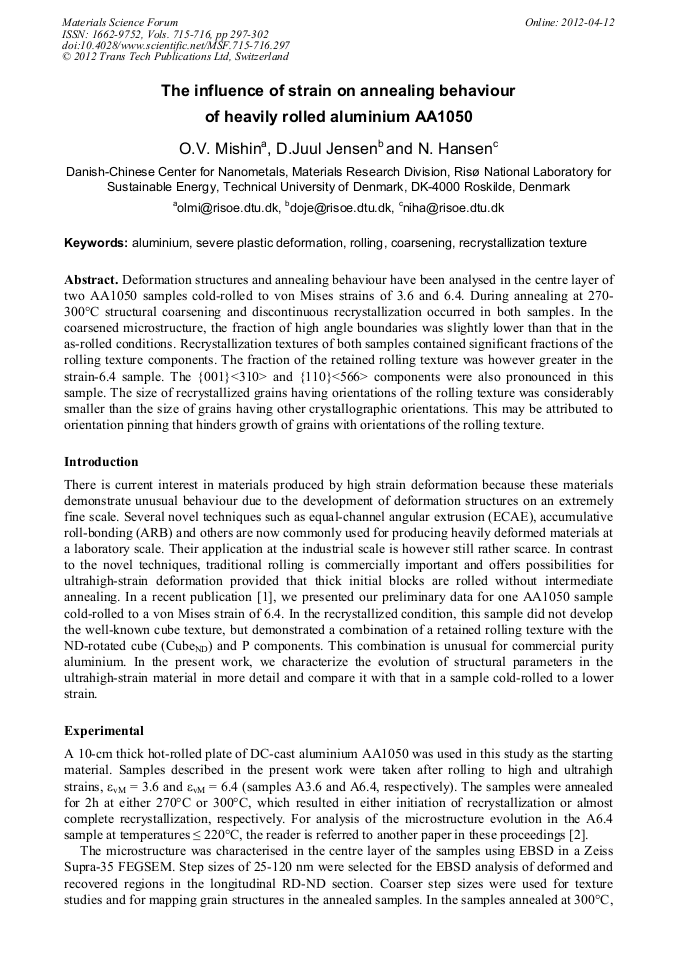

The Influence of Strain on Annealing Behaviour of Heavily Rolled Aluminium AA1050

Abstract:

Deformation structures and annealing behaviour have been analysed in the centre layer of two AA1050 samples cold-rolled to von Mises strains of 3.6 and 6.4. During annealing at 270-300°C structural coarsening and discontinuous recrystallization occurred in both samples. In the coarsened microstructure, the fraction of high angle boundaries was slightly lower than that in the as-rolled conditions. Recrystallization textures of both samples contained significant fractions of the rolling texture components. The fraction of the retained rolling texture was however greater in the strain-6.4 sample. The {001}<310> and {110}<566> components were also pronounced in this sample. The size of recrystallized grains having orientations of the rolling texture was considerably smaller than the size of grains having other crystallographic orientations. This may be attributed to orientation pinning that hinders growth of grains with orientations of the rolling texture.

• Periodical: Materials Science Forum (Volumes 715-716)
• Pages: 297-302
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.715-716.297
• Online since: April 2012
• Authors: O.V. Mishin, Dorte Juul Jensen, Niels Hansen
• Keywords: Rolling , Aluminum (Al), Coarsening, Recrystallization Texture, Severe Plastic Deformation (SPD)

References

[1] O.V. Mishin, D. Juul Jensen and N. Hansen, in: Aluminium Alloys – Their Physical and Mechanical Properties, edited by J. Hirsch et al., WILEY-VCH Verlag, (2008), p.1114.

[2] T. Yu and N. Hansen, Mater. Sci. Forum, (2010), in press.

[3] O.V. Mishin, D. Juul Jensen and N. Hansen: Metall. Mater. Trans. A, Vol. 41A (2010), p.2936.

[4] Q. Liu, X. Huang, D.J. Lloyd and N. Hansen: Acta Mater., Vol. 50 (2002), p.3789.

[5] O.V. Mishin, D. Juul Jensen and N. Hansen: Mater. Sci. Eng. A, Vol. 342 (2003), p.320.

[6] M.Z. Quadir, O. Al-Buhamad, L. Bassman and M. Ferry: Acta Mater., Vol. 55 (2007), p.5438.

DOI: 10.1016/j.actamat.2007.06.021

[7] G.H. Zahid, Y. Huang and P.B. Prangnell: Acta Mater., Vol. 57 (2009), p.3509.

[8] D. Juul Jensen and N. Hansen: Metall. Trans. A, Vol. 17A (1986), p.253.

[9] O. Engler, H.E. Vatne and E. Nes: Mater. Sci. Eng. A, Vol. 205 (1996), p.187.

[10] O. Daaland and E. Nes: Acta Mater, Vol. 44 (1996), p.1413.

[11] H.E. Vatne, O. Engler, and E. Nes: Mater. Sci. Technol., Vol. 13 (1997), p.93.

[12] Q. Zeng, X. Wen, and T. Zhai: Metall. Mater. Trans A, Vol. 40A (2009), p.2488.

[13] W.C. Liu, H. Yuan, and M.J. Huang: Metall. Mater. Trans A, Vol. 40A (2009), p.2794.

[14] H. -E. Ekström, O.V. Mishin and R.G. Hamerton: Mater. Sci. Forum, Vols 396–402 (2002), p.575.

[15] F.J. Humphreys: Acta Metall., Vol. 25 (1977), p.1323.

[16] D. Juul Jensen: Acta Metall. Mater, Vol. 43 (1995), p.4117.
