Sub-Boundary Mobilities during Recovery of Binary Al-Mn Alloys

Fabrice Barou; Claire Maurice; Jean Marie Feppon; Julian H. Driver

doi:10.4028/www.scientific.net/MSF.715-716.725

Paper Titles

Role of Inclination Dependent Anisotropy on Boundary Populations during Two-Dimensional Grain Growth
p.697

Controlling Grain Size in Oxide Ceramics for Optimization of Strength and Wear Resistance
p.703

Austenite Grain Refinement in Direct Charging Based Thermomechanical Processes
p.711

Nonlinear Migration of Faceted Boundaries and Nonstationary Grain Growth in Ceramics
p.719

Sub-Boundary Mobilities during Recovery of Binary Al-Mn Alloys
p.725

The Weighted Burgers Vector: A Quantity for Constraining Dislocation Densities and Types Using Electron Backscatter Diffraction on 2D Sections through Crystalline Materials
p.732

Mean Field and Finite Element Modeling of Static and Dynamic Recrystallization
p.737

Fabrication of Nanocrystalline Dense Silicon Nitride Ceramics
p.738

Modelling the Static Recrystallisation Texture of FCC Metals Using a Phase Field Method
p.739

HomeMaterials Science ForumMaterials Science Forum Vols. 715-716Sub-Boundary Mobilities during Recovery of Binary...

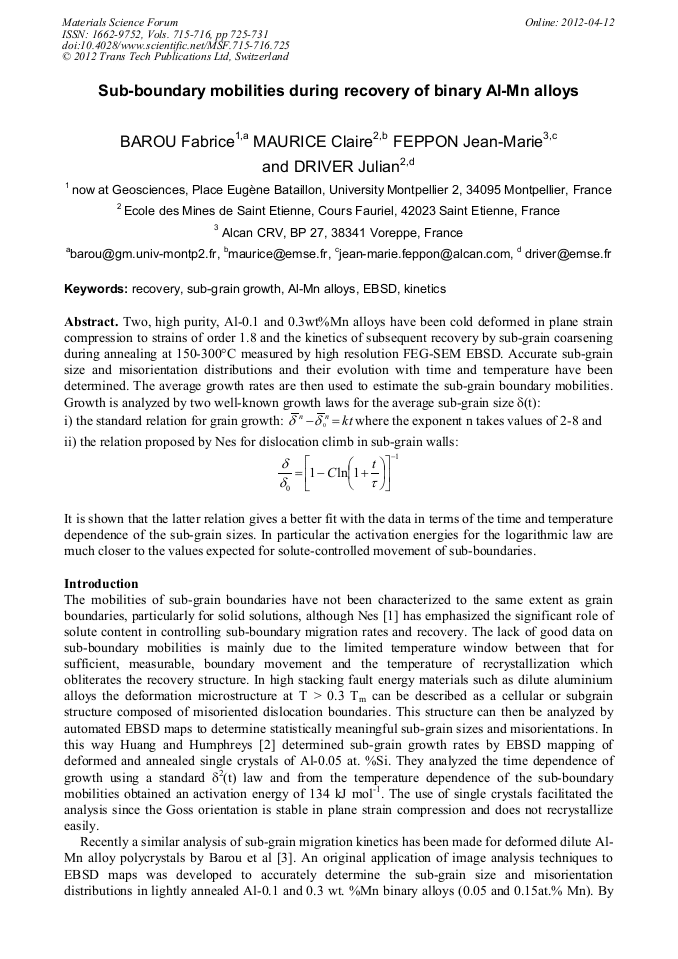

Sub-Boundary Mobilities during Recovery of Binary Al-Mn Alloys

Abstract:

Two, high purity, Al-0.1 and 0.3wt%Mn alloys have been cold deformed in plane strain compression to strains of order 1.8 and the kinetics of subsequent recovery by sub-grain coarsening during annealing at 150-300°C measured by high resolution FEG-SEM EBSD. Accurate sub-grain size and misorientation distributions and their evolution with time and temperature have been determined. The average growth rates are then used to estimate the sub-grain boundary mobilities. Growth is analyzed by two well-known growth laws for the average sub-grain size δ (t): i) the standard relation for grain growth: where the exponent n takes values of 2-8 and ii) the relation proposed by Nes for dislocation climb in sub-grain walls: It is shown that the latter relation gives a better fit with the data in terms of the time and temperature dependence of the sub-grain sizes. In particular the activation energies for the logarithmic law are much closer to the values expected for solute-controlled movement of sub-boundaries.
