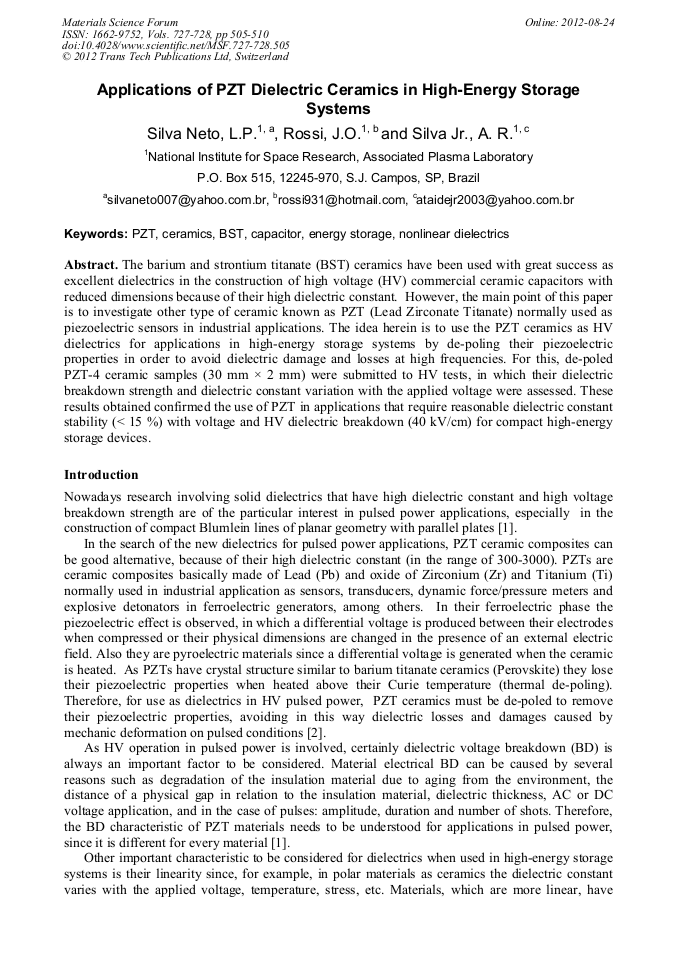

Applications of PZT Dielectric Ceramics in High-Energy Storage Systems

Abstract:

The barium and strontium titanate (BST) ceramics have been used with great success as excellent dielectrics in the construction of high voltage (HV) commercial ceramic capacitors with reduced dimensions because of their high dielectric constant. However, the main point of this paper is to investigate other type of ceramic known as PZT (Lead Zirconate Titanate) normally used as piezoelectric sensors in industrial applications. The idea herein is to use the PZT ceramics as HV dielectrics for applications in high-energy storage systems by de-poling their piezoelectric properties in order to avoid dielectric damage and losses at high frequencies. For this, de-poled PZT-4 ceramic samples (30 mm × 2 mm) were submitted to HV tests, in which their dielectric breakdown strength and dielectric constant variation with the applied voltage were assessed. These results obtained confirmed the use of PZT in applications that require reasonable dielectric constant stability (< 15 %) with voltage and HV dielectric breakdown (40 kV/cm) for compact high-energy storage devices.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 727-728)

Pages:

505-510

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.727-728.505

Citation:

Cite this paper

Online since:

August 2012

Authors:

L.P. Silva Neto, J.O. Rossi, A.R. Silva

Keywords:

BST, Capacitor, Ceramic, Energy Storage, Nonlinear Dielectrics, PZT

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] P. Castro, C.J. Buchenauer, J. Gaudet and E. Schamiloglu, in: 15th IEEE Pulsed Power Conference. Monterey, June 2005. Proceeding.. Monterey (2005), p.978. (USA).

DOI: 10.1109/ppc.2005.300458

Google Scholar

[2] J.O. Rossi, L.P. Silva Neto and A. R Silva Jr.: in 18th IEEE International Pulsed Power Conference. Chicago, June 2011. Proceeding.. Chicago (2011). (USA) to be published.

Google Scholar

[3] L.P. Silva Neto, J.O. Rossi, and A.R. Silva Jr., in: XI Brazilian Power Electronics Conference. Natal, September 2011. Proceeding.. (Natal), iREP-412. (RN).

Google Scholar
