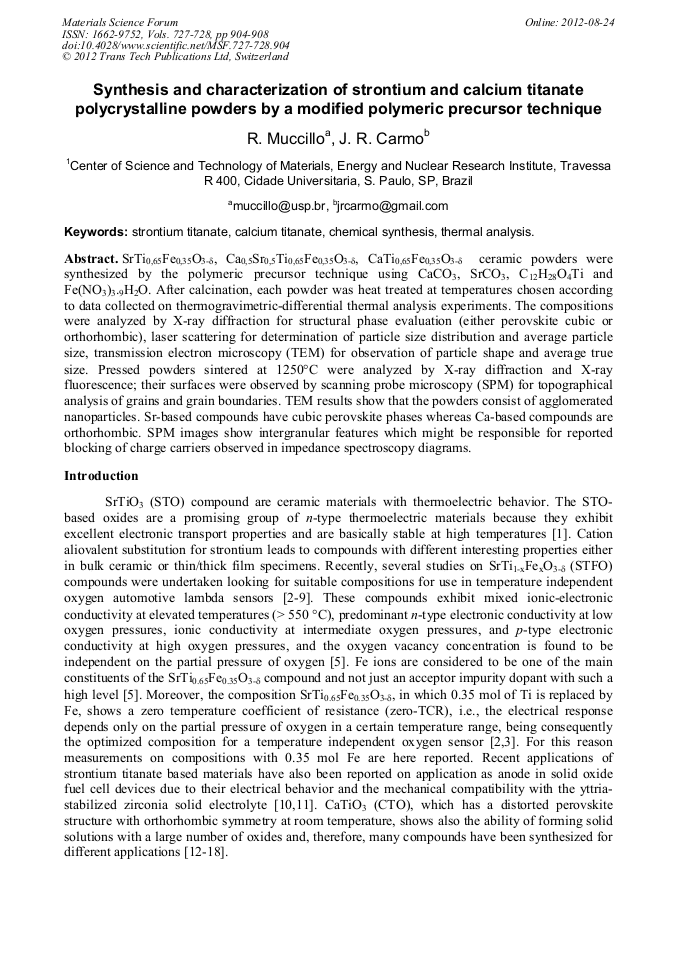

Synthesis and Characterization of Strontium and Calcium Titanate Polycrystalline Powders by a Modified Polymeric Precursor Technique

Abstract:

SrTi_0,65Fe_0,35O_3-δ, Ca_0,5Sr_0,5Ti_0,65Fe_0,35O_3-δ, CaTi_0,65Fe_0,35O_3-δ ceramic powders were synthesized by the polymeric precursor technique using CaCO₃, SrCO₃, C₁₂H₂₈O₄Ti and Fe (NO₃)₃.₉H₂O. After calcination, each powder was heat treated at temperatures chosen according to data collected on thermogravimetric-differential thermal analysis experiments. The compositions were analyzed by X-ray diffraction for structural phase evaluation (either perovskite cubic or orthorhombic), laser scattering for determination of particle size distribution and average particle size, transmission electron microscopy (TEM) for observation of particle shape and average true size. Pressed powders sintered at 1250°C were analyzed by X-ray diffraction and X-ray fluorescence; their surfaces were observed by scanning probe microscopy (SPM) for topographical analysis of grains and grain boundaries. TEM results show that the powders consist of agglomerated nanoparticles. Sr-based compounds have cubic perovskite phases whereas Ca-based compounds are orthorhombic. SPM images show intergranular features which might be responsible for reported blocking of charge carriers observed in impedance spectroscopy diagrams.

• Periodical: Materials Science Forum (Volumes 727-728)
• Pages: 904-908
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.727-728.904
• Online since: August 2012
• Authors: R. Muccillo, J.R. Carmo
• Keywords: Calcium Titanate, Chemical Synthesis, Strontium Titanate, Thermal Analysis

References

[1] K. Koumoto, Y. Wang, R. Zhang, A. Kosuga and R. Funahashi, Annu. Rev. Mater. Res. Vol. 40 (2010), p.363.

[2] W. Menesklou, H.J. Schreiner, K.H. Hardtl and E. Ivers-Tiffée, Sens. Act. B Vol. 59 (1999), p.184.

[3] E. Ivers-Tiffée, K.H. Hardtl, W. Menesklou and J. Riegel. Electrochim. Acta Vol. 47 (2001), p.807.

[4] R. Moos, W. Menesklou, H. -J. Schreiner and K.H. Hardtl, Sens. Act. B Vol. 67 (2000), p.178.

[5] A. Rothschild, W. Menesklou, H.L. Tuller and E. Ivers-Tiffée, Chem. Mater. Vol. 18 (2006), p.3651.

[6] K. Sahner, J. Straub and R. Moos, J. Electroceram. Vol. 16 (2006), p.179.

[7] R. Moos, F. Rettig, A. Huerland and C. Plog, Sensor Actuat. B-Chem Vol. 93 (2003), p.43.

[8] A. Rothschild and H.L. Tuller, J. Electroceram. Vol. 17 (2006), p.1005.

[9] A. Rothschild, S.J. Litzelman, H.L. Tuller, W. Menesklou, T. Schneider and E. Ivers-Tiffée, Sens. Act. B Vol. 108 (2005), p.223.

DOI: 10.1016/j.snb.2004.09.044

[10] D. Neagu and J.T.S. Irvine, Chem. Mater. Vol. 22 (2010), p.5042.

[11] P. Blennow, K.K. Hansen, L.R. Wallenberg and  M. Mogensen, Advances is Solid Oxide Fuel Cells III, Ceramic Engineering and Science Proc. 28 (2008), p.203.

DOI: 10.1002/9780470339534.ch20

[12] Y. Hanajiri, H. Yokoi, T. Matsui, Y. Arita, T. Nagasaki and H. Shigematsu, J. Nucl. Mater. Vol. 247 (1997), p.285.

[13] Y. Li, S. Qin and F. Seifert, J. Solid State Chem. Vol. 180 (2007), p.824.

[14] A.G. Andersen, T. Hayakawa, T. Tsunoda, H. Orita, M. Shimizu and K. Takehira, Catal. Lett. Vol. 18 (1993), p.37.

[15] V.M. Ferreira, F. Azough, J.L. Baptista and R. Freer, J. Mater. Res. Vol. 12 (1997), p.3293.

[16] E.R. Kipkoech, F. Azough, R. Freer, C. Leach, S.P. Thompson and C.C. Tang, J. Eur. Ceram. Soc. Vol. 23 (2003), p.2677.

[17] L. Zhou, P.M. Vilarinho and J.L. Baptista, J. Am. Ceram. Soc. Vol. 82 (1999), p.1064.

[18] K.D. Madal, L. Behera and K. Ismail, J. Alloy Compd. Vol. 325 (2003), p.309.

[19] A.C. Larson and R.B.V. Dreele, General Structure Analysis System (GSAS) (Los Alamos National Laboratory Report LAUR 86-748, 2004).
