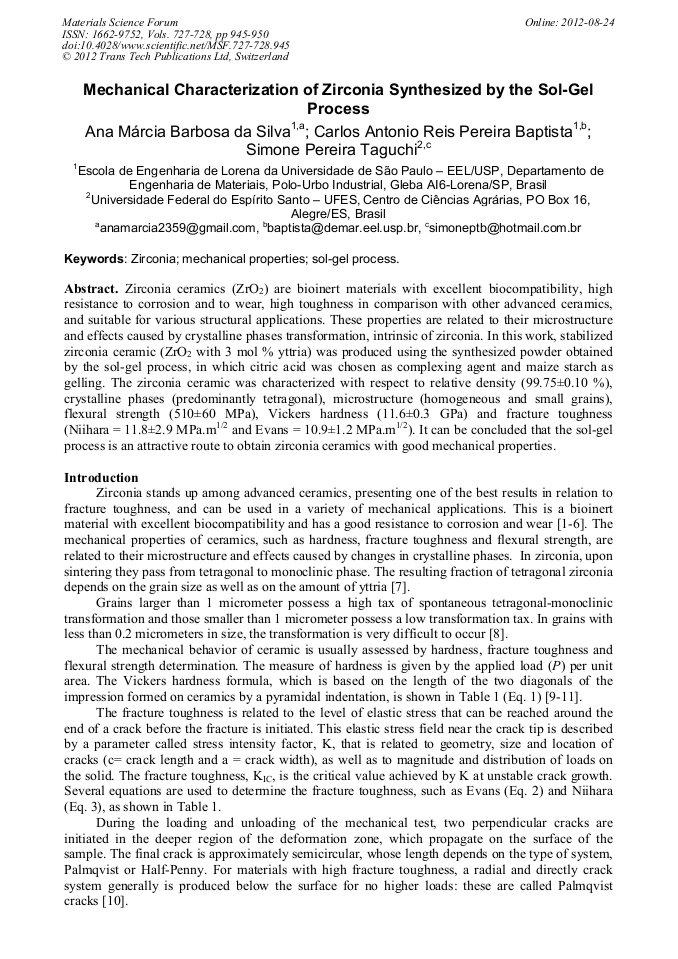

Mechanical Characterization of Zirconia Synthesized by the Sol-Gel Process

Abstract:

Zirconia ceramics (ZrO₂) are bioinert materials with excellent biocompatibility, high resistance to corrosion and to wear, high toughness in comparison with other advanced ceramics, and suitable for various structural applications. These properties are related to their microstructure and effects caused by crystalline phases transformation, intrinsic of zirconia. In this work, stabilized zirconia ceramic (ZrO₂ with 3 mol % yttria) was produced using the synthesized powder obtained by the sol-gel process, in which citric acid was chosen as complexing agent and maize starch as gelling. The zirconia ceramic was characterized with respect to relative density (99.75±0.10 %), crystalline phases (predominantly tetragonal), microstructure (homogeneous and small grains), flexural strength (510±60 MPa), Vickers hardness (11.6±0.3 GPa) and fracture toughness (Niihara = 11.8±2.9 MPa.m^1/2 and Evans = 10.9±1.2 MPa.m^1/2). It can be concluded that the sol-gel process is an attractive route to obtain zirconia ceramics with good mechanical properties.

• Periodical: Materials Science Forum (Volumes 727-728)
• Pages: 945-950
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.727-728.945
• Online since: August 2012
• Authors: Ana Márcia Barbosa da Silva Antunes, Carlos Antonio Reis Pereira Baptista, Simone Pereira Taguchi Borges
• Keywords: Mechanical Property, Sol-Gel Process, Zirconia

References

[1] Y. Liang; S. P. Dutta, Technovations Vol. 21 (2001), p.61.

[2] C. Santos, L. H. P. Teixeira, D. M. B. Sudo, K. Strecker, C. N. Elijah: 49 ° Congresso Brasileiro de Ceramica (CBC). São Pedro, 06-09 de Junho 2005. Proceeding.. São Pedro 2005. (SP).

[3] T. Chraska, A.H. King and C.C. Berndt: Mat. Sci. Eng. A Vol. 286 (2000), p.169.

[4] C. Huang, Z. Tang, Z. Zhang and J. Gong: Mat. Res. Bull. Vol. 35 (2000), p.1503.

[5] C.C.T. Yang, H. J. Cho and W.J. Wei: J. Europ. Ceram. Soc. Vol. 22 (2002), p.199.

[6] J. Kondoh, H. Shiota, K. Kawachi and T. Nakatani: J. Alloys and Comp. 365 (2004), p.253.

[7] C. Piconi and G. Maccauro: Biomaterials Vol. 20 (1) (1999), pp.1-25.

[8] J.K.M.F. Daguano, C. Santos, R.C. Souza, R.M. Balestra, K. Strecker and C.N. Elias: International Journal of Refractory Metals& Hard Materials Vol. 25 (2007), p.374.

DOI: 10.1016/j.ijrmhm.2006.12.005

[9] T. Xu, J. Vleugels, O. Van Der Biest, Y. Kan and P. Wang: J. Europ. Ceram. Soc. (2005), in press.

[10] S.P. Taguchi: A study of the interaction of systems and SiC + Al2O3 / Y2O3 and SiC + AlN / Y2O3 aimed at high temperatures better understanding of ceramics SiC. Doutoral (Thesis). Lorena, 2005. Escola de Engenharia de Lorena (EEL). (SP).

[11] E.M.B. Santos: Development and characterization of the bio-based ceramics zirconia and yttria aimed at implementing prostheses. 2007 120 f.: il. Master (Dissertation). Lorena, 2007. Escola de Engenharia de Lorena (EEL). (SP).

[12] C.F. Souza: Fracture Strength of fixed partial dentures (FPDs) Substructures for Posterior Dense Zirconia under Cyclic Fatigue Tests. Master (Dissertation). Rio de Janeiro, 2007. Post Graduate and Engineering Research. Metallurgy and Materials (COPPE/UFRJ). (RJ).

[13] A.H. Fernandes, Development and characterization of ZrO2-based ceramics using a bioglass system 3CaO. P2O5-SiO2-MgO as sintering additive. Master (Dissertation). Lorena, 2006. Escola de Engenharia de Lorena (EEL). (SP).

[14] R. Stevens: Trans Brit Ceram Soc Vol. 80 (1981), p.81.

[15] J. Wang and R. Stevens: J. Mat. Science Vol. 24 (1989), p.3421.

[16] A.P. Oliveira and M.L. Torem: Powder Technology vol. 119 (2001), p.181.

[17] Powder Diffraction File Inorganics Phases: alphabetical index, inorganics phases, JCPDS/International centre for diffraction data, Swarthmore, Pennsylvania (1979).

[18] A.H. Aza, J. Chevalier, G. Fantozzi, M. Schehl and R. Torrecilias: Biomaterials Vol. 23 (2002), p.937.

[19] G. Roebben, B. Basu, J. Vleugels and O. Van Der Biest: J. Europ. Ceram. Soc. Vol. 23 (2003), p.481. 20] C. Suciu, A.C. Hoffmann and P. Kosinski: Powder Technology Vol. 119 (2001), p.181.

[21] D.R.R. Lazar, V. Ussui, M.C. Bottino, O. Z. Higa, S.G. Lorenzetti, J.O.A. Paschoal, J.C. Bressiani and A.H.A. Bressiani: 49 ° Congresso Brasileiro de Cerâmica (CBC). São Pedro, 06-09 de Junho 2005. Proceeding.. São Pedro 2005. (SP).

[22] M. Guazzato, M. Albakry, S.P. Ringer and M.V. Swain: Dental Materials (2004), p.449.

[23] X. Liang, Y. Qiu, S. Zhou, X. Hu, G. Yu and X. Deng: Journal of University of Science and Technology Beijing Vol. 15(6) (2008), p.764.

[24] M. Zhou-Berbon, O.T. Sorensen and T.G. Langdon: Materials Letters Vol. 27 (1996), p.211.

[25] J. Li, Z. Tang, Z. Zhang and S. Luo: Materials Science and Engineering B99 (2003), p.321.

[26] M. Trunec and Z. Chlup: Scripta Materialia Vol. 61 (2009), p.56.

[27] S. Tekeli and M. Erdogan, Ceramics International Vol. 28 (2002), p.785.

[28] A.M.B. da Silva, J.P.B. Machado and S.P. Taguchi: 52° Congresso Brasileiro de Cerâmica (CBC). Florianópolis, 08-11 de Junho 2008. Proceeding.. Florianópolis 2008. (SC).

[29] Powder Diffraction File Inorganics Phases: alphabetical index, inorganics phases, JCPDS/International centre for diffraction data, Swarthmore, Pennsylvania (1979).
