Effect of Porosity on Tensile and Compressive Deformations of Superplastic Zn-22Al Alloy Foam

Sekido Kenji; Koichi Kitazono

doi:10.4028/www.scientific.net/MSF.735.73

Paper Titles

Estimation of Input to Plastic Deformation of Non-Crystallographic Intergranular Slip
p.49

Fine-Grained Structure and Superplasticity of Al – Cu – Mg – Fe - Ni Alloys
p.55

4D Damage Characterization during Superplastic Deformation of Magnesium Alloys
p.61

Evaluation of Plastic Workability Limit of Magnesium Alloy by Cavitations in High Temperature Uni and Biaxial Test
p.67

Effect of Porosity on Tensile and Compressive Deformations of Superplastic Zn-22Al Alloy Foam
p.73

Two-Dimensional Observation of Grain Movements in Elongated and Aligned Grain Structure during High Temperature Deformation
p.79

Enhanced Plastic Deformation of Magnesium Alloy Produced through Accumulative Diffusion Bonding
p.87

High-Temperature Deformation of Magnesium Elektron^TM 43
p.93

Precise Calibration of Displacement Vector Map during Superplastic Deformation in Tetragonal Zirconia Polycrystal
p.101

HomeMaterials Science ForumMaterials Science Forum Vol. 735Effect of Porosity on Tensile and Compressive...

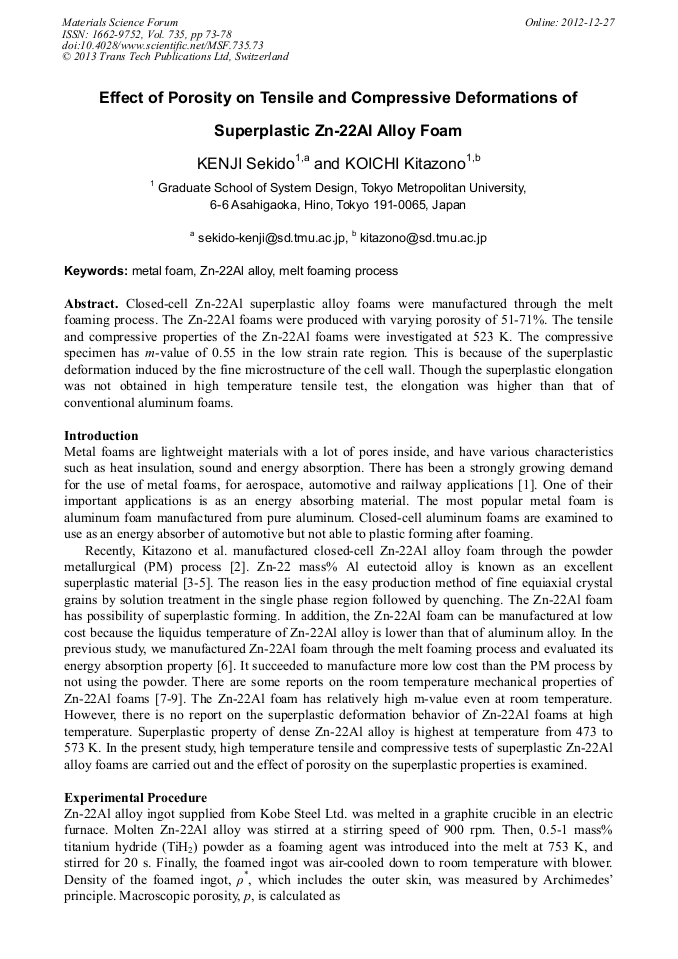

Effect of Porosity on Tensile and Compressive Deformations of Superplastic Zn-22Al Alloy Foam

Abstract:

Closed-cell Zn-22Al superplastic alloy foams were manufactured through the melt foaming process. The Zn-22Al foams were produced with varying porosity of 51-71%. The tensile and compressive properties of the Zn-22Al foams were investigated at 523 K. The compressive specimen has m-value of 0.55 in the low strain rate region. This is because of the superplastic deformation induced by the fine microstructure of the cell wall. Though the superplastic elongation was not obtained in high temperature tensile test, the elongation was higher than that of conventional aluminum foams.
