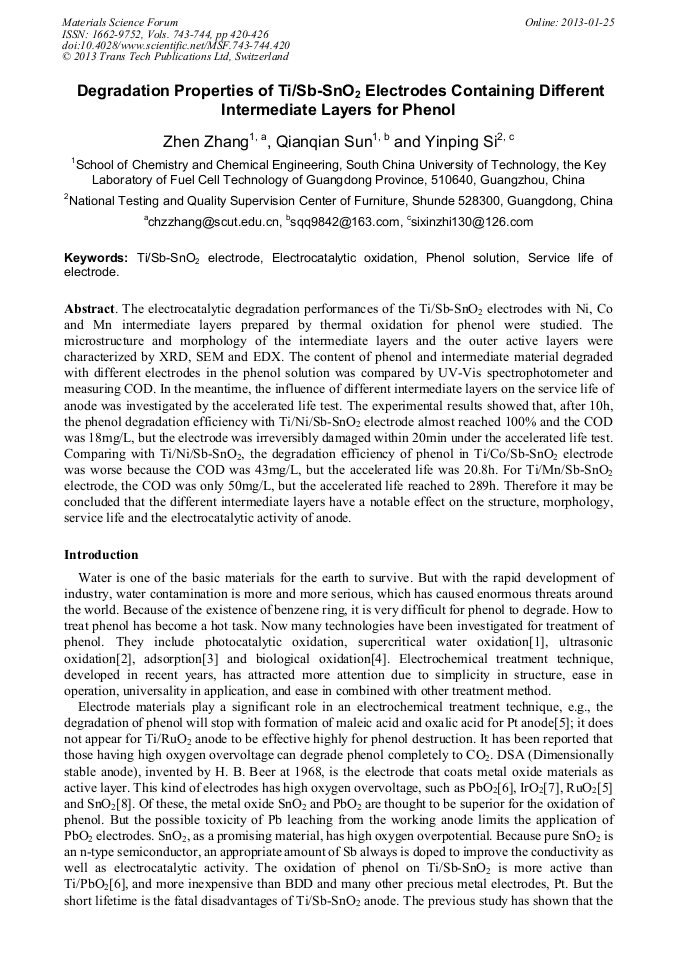

Degradation Properties of Ti/Sb-SnO₂ Electrodes Containing Different Intermediate Layers for Phenol

Abstract:

The electrocatalytic degradation performances of the Ti/Sb-SnO₂ electrodes with Ni, Co and Mn intermediate layers prepared by thermal oxidation for phenol were studied. The microstructure and morphology of the intermediate layers and the outer active layers were characterized by XRD, SEM and EDX. The content of phenol and intermediate material degraded with different electrodes in the phenol solution was compared by UV-Vis spectrophotometer and measuring COD. In the meantime, the influence of different intermediate layers on the service life of anode was investigated by the accelerated life test. The experimental results showed that, after 10h, the phenol degradation efficiency with Ti/Ni/Sb-SnO₂ electrode almost reached 100% and the COD was 18mg/L, but the electrode was irreversibly damaged within 20min under the accelerated life test. Comparing with Ti/Ni/Sb-SnO₂, the degradation efficiency of phenol in Ti/Co/Sb-SnO₂ electrode was worse because the COD was 43mg/L, but the accelerated life was 20.8h. For Ti/Mn/Sb-SnO₂ electrode, the COD was only 50mg/L, but the accelerated life reached to 289h. Therefore it may be concluded that the different intermediate layers have a notable effect on the structure, morphology, service life and the electrocatalytic activity of anode.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 420-426
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.420
• Online since: January 2013
• Authors: Zhen Zhang, Qian Qian Sun, Yin Ping Si
• Keywords: Electrocatalytic Oxidation, Phenol Solution, Service Life of Electrode, Ti/Sb-SnO₂ Electrode

References

[1] M. Koo, W.K. Lee, C.H. Lee, New reactor system for supecritical water oxidation and its application on phenol destruction, J. Chem. Eng. Sci. 52 (1997) 1201-1214.

DOI: 10.1016/s0009-2509(96)00477-0

[2] C. Pétrier, A. Francony, Ultrasonic waste-water treatment: incidence of ultrasonic frequency on the rate of phenol and carbon tetrachloride degradation, J. Ultrason. Sonochem. 4 (1997) 295-300.

DOI: 10.1016/s1350-4177(97)00036-9

[3] A. Dabrowski, P. Podkoscielny, Z. Hubicki, M. Barczak, Adsorption of phenolic compounds by activated carbon-a critical review, J. Chemosphere 58 (2005) 1049-1070.

DOI: 10.1016/j.chemosphere.2004.09.067

[4] C. Scully, G. Collins, V. O'Flaherty, Anaerobic biological treatment of phenol at 9. 5-15°C in an expanded granular sludge bed (EGSB)-based bioreactor, J. Water Res. 40 (2006) 3737-3744.

DOI: 10.1016/j.watres.2006.08.023

[5] X.Y. Li, Y.H. Cui, Y.J. Feng, Z.M. Xie, J.D. Gu, Reaction pathways and mechanisms of the electrochemical degradation of phenol on different electrodes, J. Water Res. 39 (2005) 1972-(1981).

DOI: 10.1016/j.watres.2005.02.021

[6] A.M. Polcaro, S. Palmas, F. Renoldi, M. Mascia, On the performance of Ti/SnO2 and Ti/PbO2 anodes in electrochemical degradation of 2-chlorophenol for wastewater treatment, J. J. Appl. Electrochem. 29 (1999) 147-151.

DOI: 10.1023/a:1003411906212

[7] M. Li, C.P. Feng, W.W. Hu, Z.Y. Zhang, N. Sugiura, Electrochemical degradation of phenol using electrodes of Ti/RuO(2)-Pt and Ti/IrO(2)-Pt, J. J. Hazard. Mater. 162 (2009) 455-462.

DOI: 10.1016/j.jhazmat.2008.05.063

[8] Y.H. Cui, Y.J. Feng, Z.Q. Liu, Influence of rare earths doping on the structure and electro-catalytic performance of Ti/Sb-SnO2 electrodes, J. Electrochim. Acta 54 (2009) 4903-4909.

DOI: 10.1016/j.electacta.2009.04.041

[9] X.M. Chen, G.H. Chen, Stable Ti/RuO2-Sb2O5-SnO2 electrodes for O2 evolution, J. Electrochim. Acta 50 (2005) 4155–4159.

DOI: 10.1016/j.electacta.2005.01.032

[10] X.M. Chen, G.H. Chen, P.L. Yue, Stable Ti/IrOx-Sb2O5-SnO2 Anode for O2 Evolution with Low Ir Content, J. J. Phys. Chem. B 105 (2001) 4623-4628.

[11] B. Adams, M. Tian, A.C. Chen, Design and electrochemical study of SnO(2)-based mixed oxide electrodes, J. Electrochim. Acta 54 (2009) 1491-1498.

DOI: 10.1016/j.electacta.2008.09.034

[12] H. An, Q. Li, D.J. Tao, H. Cui, X.T. Xu, L. Ding, et al., The synthesis and characterization of Ti/SnO2-Sb2O3/PbO2 electrodes: The influence of morphology caused by different electrochemical deposition time, J. Appl. Surf. Sci. 258 (2011).

DOI: 10.1016/j.apsusc.2011.08.034

[13] Y.Q. Wang, B. Gu, W.L. Xu, Electro-catalytic degradation of phenol on several metal-oxide anodes, J. J. Hazard. Mater. 162 (2009) 1159-1164.

DOI: 10.1016/j.jhazmat.2008.05.164

[14] B. Correa-Lozano, C. Comninellis, A.D. Battisti, Service life of Ti/SnO2-Sb2O5 anodes, J. J. Appl. Electrochem. 27 (1997) 970-974.

[15] J.F. Liu, Y.J. Feng, J.W. Lv, H.Y. Ding, Enhancing service life of SnO2 electrode by introducing an interlayer containing Mn element, J. Chinese J. Mater. Res. 22 (2008) 593-598.

[16] H. You, Y.H. Cui, Y.J. Feng, J.F. Liu, W.M. Cai, Preparation and investigation of Ti-based SnO2 electrode with an inter layer containing Co element, J. Mater. Sci. Tech. 12 (2004) 230-233.

[17] X.M. Chen, F.R. Gao, G.H. Chen, Comparison of Ti/BDD and Ti/SnO2-Sb2O5 electrodes for pollutant oxidation, J. J. Appl. Electrochem. 35 (2005) 185-191.

DOI: 10.1007/s10800-004-6068-0

[18] R. Hutchings, K. Müller, R. Kötz, S. Stucki S, A structural investigation of stabilized oxygen evolution catalysts, J. J. Mater. Sci. 19 (1984) 3987-3994.

DOI: 10.1007/bf00980762

[19] S.P. Li, J. Fu, Z. Hu, Preparation and characterization of Y doped Ti/Sb2O5-SnO2 electro-catalytic electrodes, J. Journal of Shandong University (Natural Science) 43 (2008) 1-5.
