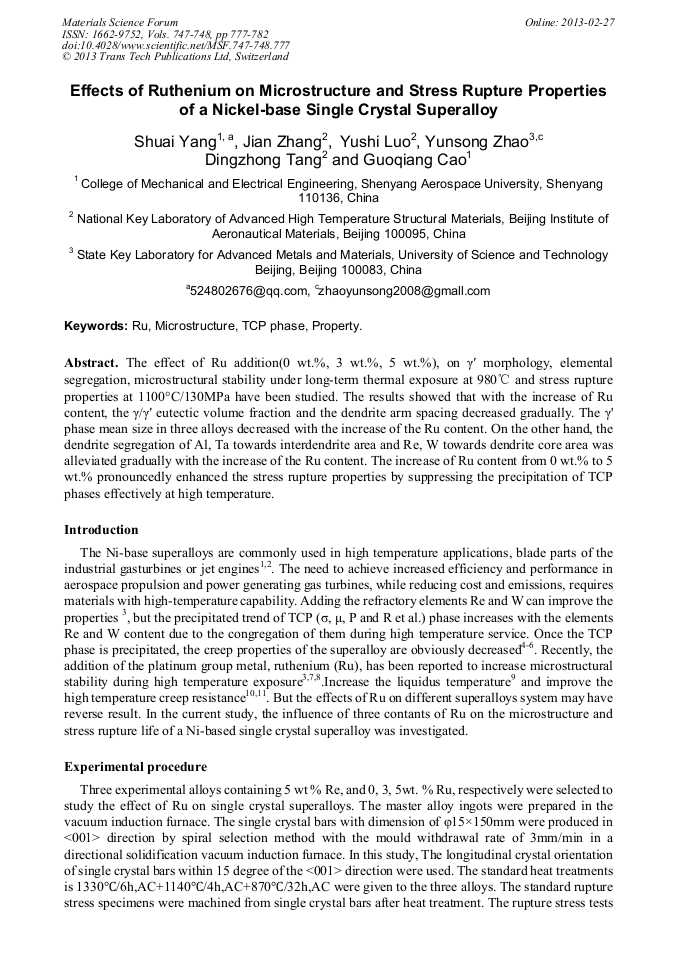

Effects of Ruthenium on Microstructure and Stress Rupture Properties of a Nickel-Base Single Crystal Superalloy

Abstract:

The effect of Ru addition (0 wt.%, 3 wt.%, 5 wt.%), on γ morphology, elemental segregation, microstructural stability under long-term thermal exposure at 980 and stress rupture properties at 1100°C/130MPa have been studied. The results showed that with the increase of Ru content, the γ/γ eutectic volume fraction and the dendrite arm spacing decreased gradually. The γ' phase mean size in three alloys decreased with the increase of the Ru content. On the other hand, the dendrite segregation of Al, Ta towards interdendrite area and ReW towards dendrite core area was alleviated gradually with the increase of the Ru content. The increase of Ru content from 0 wt.% to 5 wt.% pronouncedly enhanced the stress rupture properties by suppressing the precipitation of TCP phases effectively at high temperature.

• Periodical: Materials Science Forum (Volumes 747-748)
• Pages: 777-782
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.747-748.777
• Online since: February 2013
• Authors: Shuai Yang, Jian Zhang, Yu Shi Luo, Yun Song Zhao, Ding Zhong Tang, Guo Qiang Cao
• Keywords: Microstructure, Property, Ru, TCP Phase

References

[1] Hashizume, R., Yoshinari, A., Kiyono, T., Murata, Y. & Morinaga, M. in Superalloys 2004. eds K. A. Green et al. ) 53-62.

[2] Hino, T., Kobayashi, T., Koizumi, Y., Harada, H. & Yamagata, T. Development of a new single crystal superalloy for industrial gas turbines. (2000).

DOI: 10.7449/2000/superalloys_2000_729_736

[3] Yeh, A. C. & Tin, S. Effects of Ru and Re additions on the high temperature flow stresses of Ni-base single crystal superalloys. Scripta Materialia 52, 519-524 (2005).

DOI: 10.1016/j.scriptamat.2004.10.039

[4] Rae, C. M. F. & Reed, R. C. The precipitation of topologically close-packed phases in rhenium-containing superalloys. Acta Materialia 49, 4113-4125 (2001).

DOI: 10.1016/s1359-6454(01)00265-8

[5] Rae, C. M. F. et al. in Superalloys 2000. eds T. M. Pollock et al. ) 767-776 (Minerals, Metals & Materials Soc).

[6] Reed, R. C., Cox, D. C. & Rae, C. M. F. Damage accumulation during creep deformation of a single crystal superalloy at 1150C. Materials Science & Engineering A (Structural Materials: Properties, Microstructure and Processing) 448, 88-96 (2007).

DOI: 10.1016/j.msea.2006.11.101

[7] Sato, A. et al. The effects of ruthenium on the phase stability of fourth generation Ni-base single crystal superalloys. Scripta Materialia 54, 1679-1684 (2006).

DOI: 10.1016/j.scriptamat.2006.01.003

[8] Yeh, A. & Tin, S. Effects of Ru on the high-temperature phase stability of Ni-base single-crystal superalloys. Metallurgical and Materials Transactions A 37, 2621-2631 (2006).

DOI: 10.1007/bf02586097

[9] Feng, Q., Nandy, T. K., Tin, S. & Pollock, T. M. Solidification of high-refractory ruthenium-containing superalloys. Acta Materialia 51, 269-284 (2003).

DOI: 10.1016/s1359-6454(02)00397-x

[10] Yeh, A. C., Rae, C. M. F. & Tin, S. in Superalloys 2004. 677-685 (TMS).

[11] Carroll, L. J., Feng, Q. & Pollock, T. M. Interfacial dislocation networks and creep in directional coarsened Ru-containing nickel-base single-crystal superalloys. Metallurgical and Materials Transactions A 39 A, 1290-1307 (2008).

DOI: 10.1007/s11661-008-9520-7

[12] Argence, D., Vernault, C., Desvallees, Y. & Fournier, D. in Superalloys 2000. eds T. M. Pollock et al. ) 829-837 (Minerals, Metals & Materials Soc).

[13] Erickson, G. L. TMS-AIME. Materials Science and Engineering Warrendale, p.36 (1995).

[14] A. Didier, V. C., D. Yves, F. Dominique. T.M. Pollock, R.D. Kissinger, R.R. Bowman, et al. eds. In: Superalloys 2000 (2000: 829-837).

[15] Sims, C. T., Stoloff, N. S. & Hagel, W. C. Superalloys II. (Wiley, 1987).

[16] Caron, P. in Superalloys 2000. eds T. M. Pollock et al. ) 737-746 (Minerals, Metals & Materials Soc).
