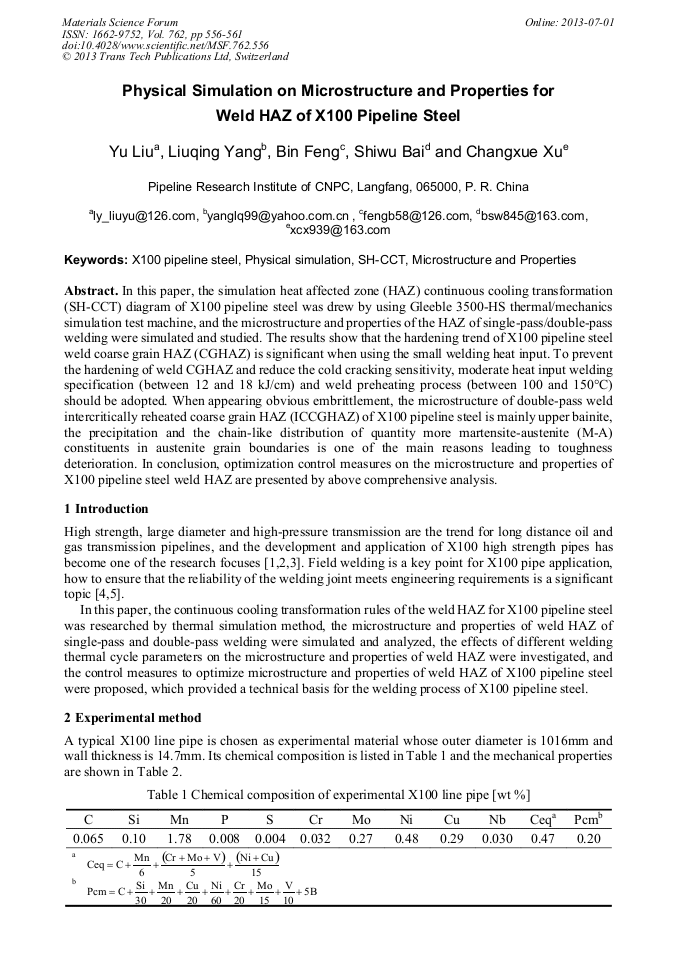

Physical Simulation on Microstructure and Properties for Weld HAZ of X100 Pipeline Steel

Abstract:

In this paper, the simulation heat affected zone (HAZ) continuous cooling transformation (SH-CCT) diagram of X100 pipeline steel was drew by using Gleeble 3500-HS thermal/mechanics simulation test machine, and the microstructure and properties of the HAZ of single-pass/double-pass welding were simulated and studied. The results show that the hardening trend of X100 pipeline steel weld coarse grain HAZ (CGHAZ) is significant when using the small welding heat input. To prevent the hardening of weld CGHAZ and reduce the cold cracking sensitivity, moderate heat input welding specification (between 12 and 18 kJ/cm) and weld preheating process (between 100 and 150°C) should be adopted. When appearing obvious embrittlement, the microstructure of double-pass weld intercritically reheated coarse grain HAZ (ICCGHAZ) of X100 pipeline steel is mainly upper bainite, the precipitation and the chain-like distribution of quantity more martensite-austenite (M-A) constituents in austenite grain boundaries is one of the main reasons leading to toughness deterioration. In conclusion, optimization control measures on the microstructure and properties of X100 pipeline steel weld HAZ are presented by above comprehensive analysis.

• Periodical: Materials Science Forum (Volume 762)
• Pages: 556-561
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.762.556
• Online since: July 2013
• Authors: Yu Liu, Liu Qing Yang, Bin Feng, Shi Wu Bai, Chang Xue Xu
• Keywords: Microstructure, Physical Simulation, Property, SH-CCT, X100 Pipeline Steel

References

[1] X.X. Wang: Welded Pipe and Tube Vol. 35 (2012), p.5.

[2] H.G. Hillenbrand, A. Liessem, G. Knauf, K. Niederhoff and J. Bauer: Proc. of the 3rd Int. Pipeline Technology Conf, Brugge (2000), ed. by Denys, Vol. I, p.460.

[3] S. Nafisi, M.A. Arafin, L. Collins and J. Szpunar: Mater. Sci. Eng. A 531 (2012), p.2.

[4] M.A. Quintana and J. Hammond, Proceedings of the 8th International Pipeline Conference, Calgary, Alberta, Canada (2010), IPC2010-32421, pp.1-10.

[5] T. Swankie, V. Chauhan, I. Wood, R. Espiner, M. Kieba and S. Quong: Proc. of the 9th International Pipeline Conference, Calgary, Alberta, Canada (2012), IPC2012-90404, pp.1-15.

[6] C.S. Wu, in: Welding Handbook (Second Edition), Vol. 2, ed. by J.H. Chen, China Machine Press, Beijing (2001), p.19.

[7] C.W. Wang and H.L. Gao: Welded Pipe and Tube Vol. 30 (2007), p.15.

[8] J.L. Ren, in: Welding Handbook (Second Edition), Vol. 2, ed. by J.H. Chen, China Machine Press, Beijing (2001), p.105.

[9] X.S. Jiang and H. Zhao: The Microstructure of the Steel Fracture Handbook, China Machine Press, Beijing (2010).
