Numerical Simulation of Multiple-Step Incremental Roll-Bending Forming of a Large Metal Sheet to U-Shape

Abstract:

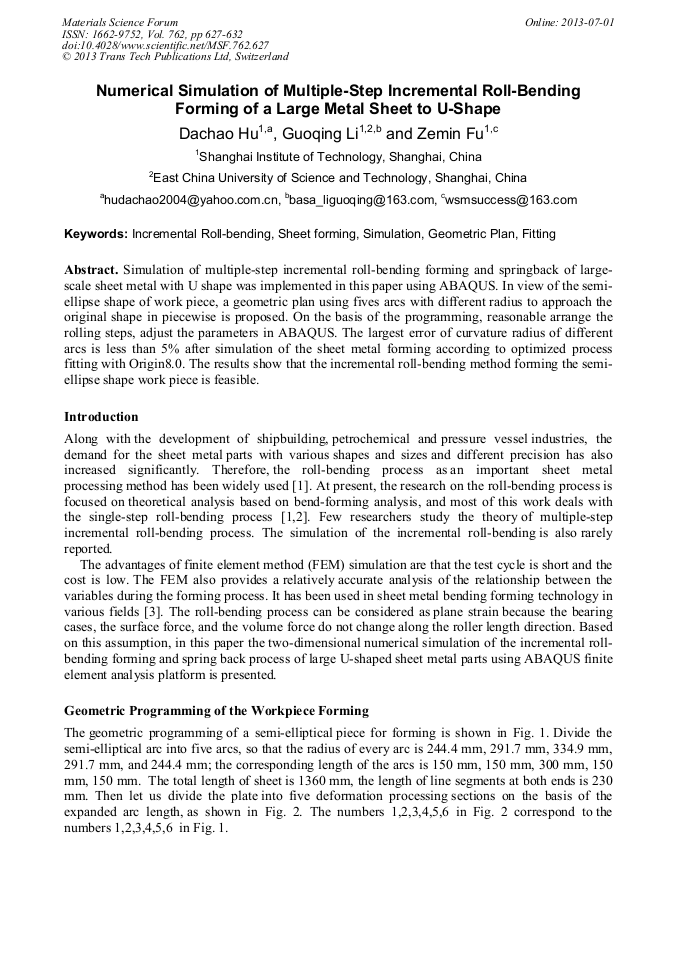

Simulation of multiple-step incremental roll-bending forming and springback of large-scale sheet metal with U shape was implemented in this paper using ABAQUS. In view of the semi-ellipse shape of work piece, a geometric plan using fives arcs with different radius to approach the original shape in piecewise is proposed. On the basis of the programming, reasonable arrange the rolling steps, adjust the parameters in ABAQUS. The largest error of curvature radius of different arcs is less than 5% after simulation of the sheet metal forming according to optimized process fitting with Origin8.0. The results show that the incremental roll-bending method forming the semi-ellipse shape work piece is feasible.
