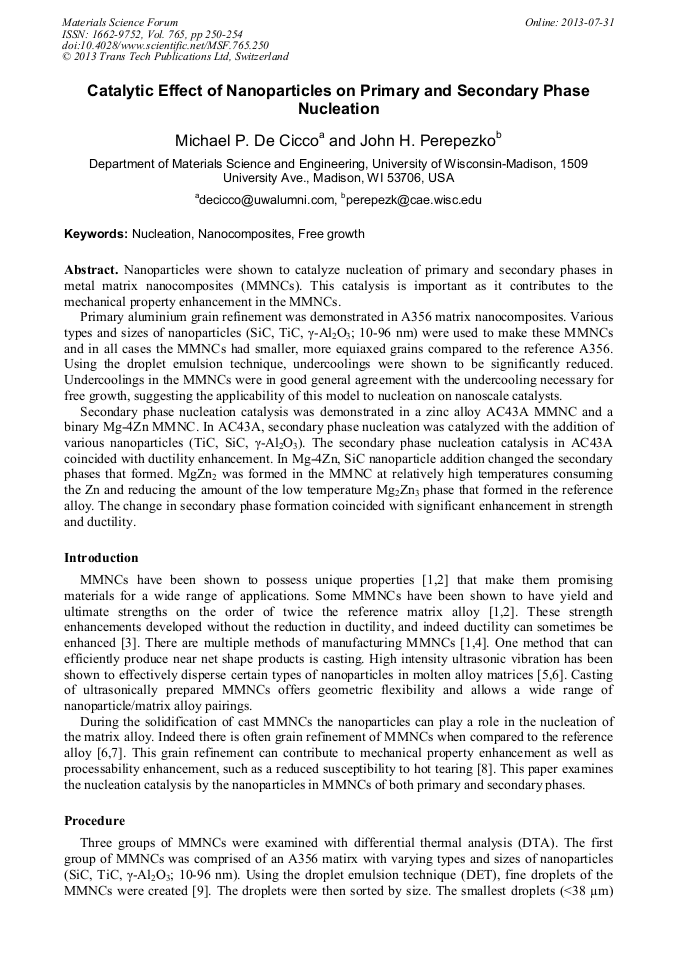

Catalytic Effect of Nanoparticles on Primary and Secondary Phase Nucleation

Abstract:

Nanoparticles were shown to catalyze nucleation of primary and secondary phases in metal matrix nanocomposites (MMNCs). This catalysis is important as it contributes to the mechanical property enhancement in the MMNCs. Primary aluminium grain refinement was demonstrated in A356 matrix nanocomposites. Various types and sizes of nanoparticles (SiC, TiC, γ-Al₂O₃; 10-96 nm) were used to make these MMNCs and in all cases the MMNCs had smaller, more equiaxed grains compared to the reference A356. Using the droplet emulsion technique, undercoolings were shown to be significantly reduced. Undercoolings in the MMNCs were in good general agreement with the undercooling necessary for free growth, suggesting the applicability of this model to nucleation on nanoscale catalysts. Secondary phase nucleation catalysis was demonstrated in a zinc alloy AC43A MMNC and a binary Mg-4Zn MMNC. In AC43A, secondary phase nucleation was catalyzed with the addition of various nanoparticles (TiC, SiC, γ-Al₂O₃). The secondary phase nucleation catalysis in AC43A coincided with ductility enhancement. In Mg-4Zn, SiC nanoparticle addition changed the secondary phases that formed. MgZn₂ was formed in the MMNC at relatively high temperatures consuming the Zn and reducing the amount of the low temperature Mg₂Zn₃ phase that formed in the reference alloy. The change in secondary phase formation coincided with significant enhancement in strength and ductility.

• Periodical: Materials Science Forum (Volume 765)
• Pages: 250-254
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.765.250
• Online since: July 2013
• Authors: Michael P. de Cicco, John H. Perepezko
• Keywords: Free Growth, Nanocomposite, Nucleation

References

[1] S. F. Hassan, M. Gupta, Development of high performance magnesium nano-composites using nano-Al2O3 as reinforcement, Mater. Sci. Eng. A 392 (2005) 163-168.

DOI: 10.1016/j.msea.2004.09.047

[2] Y. Yang, X. Li, Ultrasonic cavitation based nanomanufacturing of bulk aluminium matrix nanocomposites, J. Manuf. Sci. Eng. Trans. ASME 129 (2007) 497-501.

DOI: 10.1115/1.2714583

[3] M. De Cicco, H. Konishi, G. Cao, H.S. Choi, L.S. Turng, J.H. Perepezko, S. Kou, R. Lakes, X. Li, Strong, ductile magnesium-zinc nanocomposites, Metall. Mater. Trans. A 40 (2009) 3038-3045.

DOI: 10.1007/s11661-009-0013-0

[4] Y. L. Huang, D.S. Xue, P.H. Zhou, Y. Ma, F.S. Li, a-Fe-Al2O3 nanocomposites prepared by sol-gel method, Mater. Sci. Eng. A 359 (2003) 332-337.

DOI: 10.1016/s0921-5093(03)00374-5

[5] D. Wang, M.P. De Cicco, X. Li, Stability of nanoparticle dispersion and property enhancement in aluminium matrix nanocomposites during repeated casting cycles, TMS 2011 - 140th Annual Meeting and Exhibition, February 27 - March 3 2011, pp.131-137.

DOI: 10.1002/9781118062173.ch16

[6] M.P. De Cicco, D. Wang, X. Li, An investigation of nanoparticle wetting, grain refinement and mechanical property enhancement in aluminium matrix nanocomposites, TMS 2011 - 140th Annual Meeting and Exhibition, February 27 - March 3 2011, pp.123-130.

DOI: 10.1002/9781118062173.ch15

[7] M.P. De Cicco, X. Li, L.S. Turng, Semi-solid casting (SSC) of zinc alloy nanocomposites, J. Mater. Process. Technol. 209 (2009) 5881-5885.

DOI: 10.1016/j.jmatprotec.2009.07.001

[8] H.S. Choi, W. Cho, H. Konishi, S. Kou, X. Li, Nanoparticle-Induced Superior Hot Tearing Resistance of A206 Alloy, Metall. Mater. Trans. A 44 (2012) 1897-1907.

DOI: 10.1007/s11661-012-1531-8

[9] M.K. Hoffmeter, J.H. Perepezko, Nucleation catalysis by dispersed particles, Scripta Metall. 22 (1988) 1143-1148.

DOI: 10.1016/s0036-9748(88)80120-0

[10] A.L. Greer, T.E. Quested, Heterogeneous grain initiation in solidification, Philos. Mag. 86 (2006) 3665-3680.

DOI: 10.1080/14786430500198486

[11] Robert C. Weast (Ed.), CRC Handbook of Chemistry and Physics 65th Edition (1984).
