High-Resolution Strain Mapping Through Time-of-Flight Neutron Transmission Diffraction

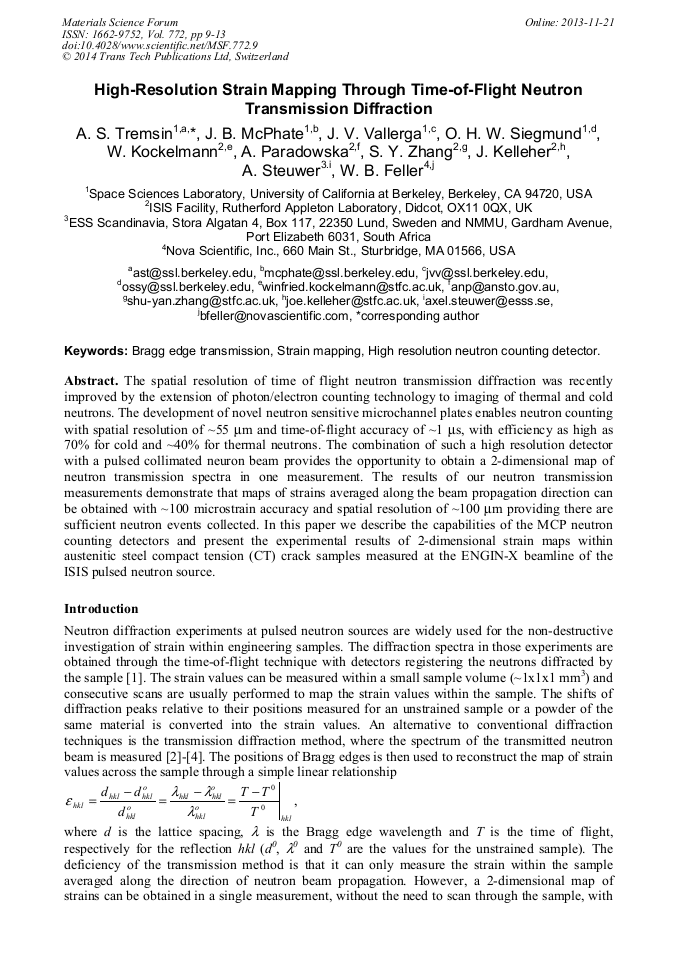

Abstract:

The spatial resolution of time of flight neutron transmission diffraction was recently improved by the extension of photon/electron counting technology to imaging of thermal and cold neutrons. The development of novel neutron sensitive microchannel plates enables neutron counting with spatial resolution of ~55 um and time-of-flight accuracy of ~1 us, with efficiency as high as 70% for cold and ~40% for thermal neutrons. The combination of such a high resolution detector with a pulsed collimated neuron beam provides the opportunity to obtain a 2-dimensional map of neutron transmission spectra in one measurement. The results of our neuron transmission measurements demonstrate that maps of strains integrated along the beam propagation direction can be obtained with ~100 microstrain accuracy and spatial resolution of ~100 um providing there are sufficient neutron events collected. In this paper we describe the capabilities of the MCP neutron counting detectors and present the experimental results of 2-dimensional strain maps within austenitic steel compact tension (CT) crack samples measured at the ENGIN-X beamline of the ISIS pulsed neutron source.

• Periodical: Materials Science Forum (Volume 772)
• Pages: 9-13
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.772.9
• Online since: November 2013
• Authors: Anton S. Tremsin, Jason B. McPhate, John V. Vallerga, Oswald H.W. Siegmund, Winfried Kockelmann, Anna Paradowska, Shu Yan Zhang, Joe Kelleher, Axel Steuwer, W. Bruce Feller
• Keywords: Bragg Edge Transmission, High Resolution Neutron Counting Detector, Strain Mapping

References

[1] D. Balzar, N. C. Popa, S. Vogel, Strain and stress tensors of rolled uranium plate by Rietveld refinement of TOF neutron-diffraction data, Mat. Sci. Eng. A-Struct. Materials Prop. Microstructure and Processing 528 (2010) 122-126.

DOI: 10.1016/j.msea.2010.06.002

[2] J. R. Santisteban, L. Edwards, A. Steuwer, P. J. Withers, Time-of-flight neutron transmission diffraction, J. Appl. Cryst. 34 (2001) 289-297.

DOI: 10.1107/s0021889801003260

[3] A. Steuwer, P.J. Withers, J.R. Santisteban, L. Edwards, G. Bruno, M.E. Fitzpatrick, M.R. Daymond, M.W. Johnson, D. Wang, Bragg Edge Determination for Accurate Lattice Parameter and Elastic Strain Measurement, Phys. Stat. Sol. (a) 185 (2001).

DOI: 10.1002/1521-396x(200106)185:2<221::aid-pssa221>3.0.co;2-c

[4] A. Steuwer, J. R. Santisteban, P. J. Withers, L. Edwards, M. E. Fitzpatrick, In situ determination of stresses from time-of-flight neutron transmission spectra, J. Appl. Cryst. 36 (2003) 1159-1168.

DOI: 10.1107/s0021889803013748

[5] J. R. Santisteban, M. R. Daymond, J. A. James and L. Edwards, ENGIN-X: a third-generation neutron strain scanner, J. Appl. Cryst. 39 (2006) 812-825.

DOI: 10.1107/s0021889806042245

[6] A. S. Tremsin, J. B. McPhate, W. Kockelmann, J. V. Vallerga, O. H. W. Siegmund, W. B. Feller, High resolution Bragg edge transmission spectroscopy at pulsed neutron sources: proof of principle experiments with neutron counting MCP detector", Nucl. Instr. Meth. A 633 (2011).

DOI: 10.1016/j.nima.2010.06.176

[7] A.S. Tremsin, W.B. Feller, R.G. Downing, Efficiency optimization of neutron imaging detectors with 10-B doped MCPs, Nucl. Instrum. Meth. A 539 (2005) 278-311.

[8] A. S. Tremsin, J. B. McPhate, J. V. Vallerga, O. H. W. Siegmund, W. B. Feller, E. Lehmann, Improved efficiency of high resolution thermal and cold neutron imaging, Nucl. Instr. Meth. A 628 (2011) 415-418.

DOI: 10.1016/j.nima.2010.07.014

[9] A. S. Tremsin, J. B. McPhate, J. V. Vallerga, O. H. W. Siegmund, W. B. Feller, H. Z. Bilheux, J. J. Molaison, C. A. Tulk, L. Crow, R. G. Cooper, D. Penumadu, Transmission Bragg edge spectroscopy measurements at ORNL Spallation Neutron Source, Journal of Physics: Conference Series 251 (2010).

DOI: 10.1088/1742-6596/251/1/012069

[10] A. S. Tremsin, J. B. McPhate, A. Steuwer, W. Kockelmann, A. M Paradowska, J. F. Kelleher, J. V. Vallerga, O. H. W. Siegmund, W. B. Feller, High-resolution strain mapping through time-of-flight neutron transmission diffraction with an MCP neutron counting detector, Strain (2011).

DOI: 10.1111/j.1475-1305.2011.00823.x

[11] F. Kropff, J.R. Granada, R.E. Mayer, The Bragg lineshapes in time-of-flight neutron powder spectroscopy, Nucl. Instr. Meth. 198 (1982) 515-521.

DOI: 10.1016/0167-5087(82)90293-9

[12] T. Holy, J. Jakubek, S. Pospisil, J. Uher, D. Vavrik, Z. Vykydal, Data acquisition and processing software package for Medipix2, Nucl. Instr. Meth. A 563 (2006) 254-258.

DOI: 10.1016/j.nima.2006.01.122
