Homogenization of Microstructure of Castings from the Alloy Fe-40at.%Al-Zr-B

Article Preview

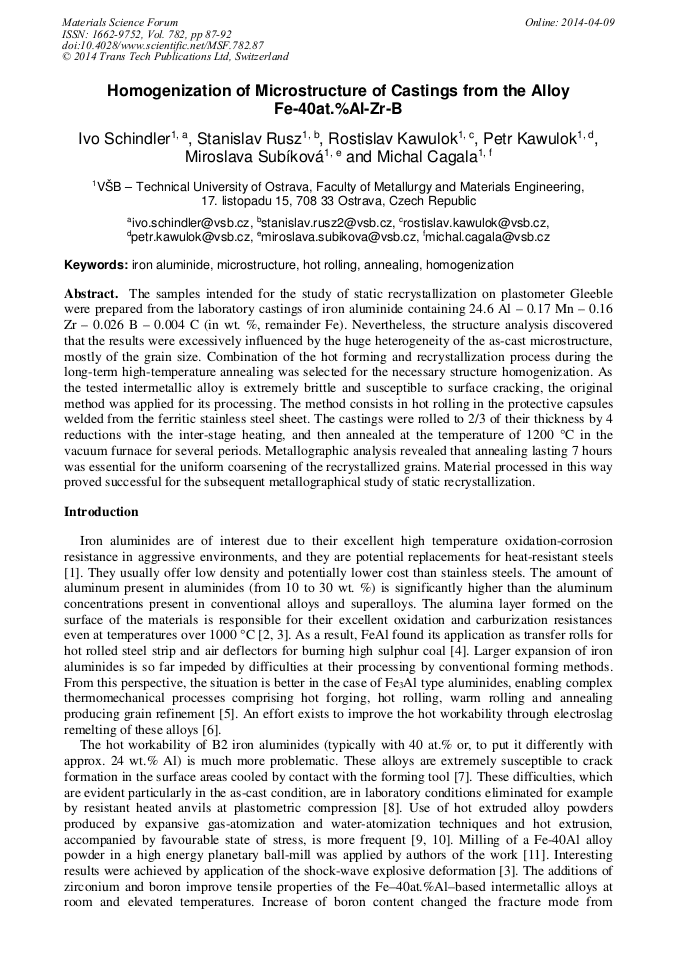

Abstract:

The samples intended for the study of static recrystallization on plastometer Gleeble were prepared from the laboratory castings of iron aluminide containing 24.6 Al 0.17 Mn 0.16 Zr 0.026 B 0.004 C (in wt. %, remainder Fe). Nevertheless, the structure analysis discovered that the results were excessively influenced by the huge heterogeneity of the as-cast microstructure, mostly of the grain size. Combination of the hot forming and recrystallization process during the long-term high-temperature annealing was selected for the necessary structure homogenization. As the tested intermetallic alloy is extremely brittle and susceptible to surface cracking, the original method was applied for its processing. The method consists in hot rolling in the protective capsules welded from the ferritic stainless steel sheet. The castings were rolled to 2/3 of their thickness by 4 reductions with the inter-stage heating, and then annealed at the temperature of 1200 °C in the vacuum furnace for several periods. Metallographic analysis revealed that annealing lasting 7 hours was essential for the uniform coarsening of the recrystallized grains. Material processed in this way proved successful for the subsequent metallographical study of static recrystallization.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

87-92

Citation:

Online since:

April 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] D.G. Morris, M.A. Muñoz-Morris, Recent Developments Toward the Application of Iron Aluminides in Fossil Fuel Technologies, Advanced Engineering Materials, 13 (2011) 43-47.

DOI: 10.1002/adem.201000210

Google Scholar

[2] S.C. Deevi, V.K. Sikka, Nickel and iron aluminides: an overview on properties, processing, and applications, Intermetallics, 4 (1996) 5, 357-375.

DOI: 10.1016/0966-9795(95)00056-9

Google Scholar

[3] J. Bystrzycki, Static recrystallization of shock-wave (explosively) deformed Fe-40 at% Al-Zr-B intermetallic, Intermetallics, 8 (2000) 2, 89-98.

DOI: 10.1016/s0966-9795(99)00071-0

Google Scholar

[4] N.S. Stoloff, C.T. Liu, S.C. Deevi, Emerging applications of intermetallics, Intermetallics, 8 (2000) 9-11, 1313-1320.

DOI: 10.1016/s0966-9795(00)00077-7

Google Scholar

[5] Y.D. Huang, W.Y. Yang, Z.Q. Sun, Improvement of room temperature tensile properties for Fe3Al-based alloys by thermomechanical and annealing processes, Mat. Sci. Eng. A-Struct., 263 (1999) 1, 75–84.

DOI: 10.1016/s0921-5093(98)01039-9

Google Scholar

[6] R.S. Sundar, R.G. Baligidad, Y.V.R.K. Prasad, D.H. Sastry, Processing of iron aluminides, Mat. Sci. Eng. A-Struct., 258 (1998) 1-2, 219-228.

DOI: 10.1016/s0921-5093(98)00937-x

Google Scholar

[7] I. Schindler, V. Šumšal, P. Hanus, Hot Rolling of Brittle Aluminide of Type Fe-40Al-Zr-B, Hutnické listy, 64 (2011) 6, 56-61.

Google Scholar

[8] I. Schindler et al., Activation Energy in Hot Forming of Selected Fe–40at. %Al Type Intermetallic Compounds, Acta Phys. Pol. A, 122 (2012) 3, 610-613.

DOI: 10.12693/aphyspola.122.610

Google Scholar

[9] Y.V.R.K. Prasad, D.H. Sastry, S.C. Deevi, Processing maps for hot working of a P/M iron aluminide alloy, Intermetallics, 8 (2000) 9-11, 1067-1074.

DOI: 10.1016/s0966-9795(00)00041-8

Google Scholar

[10] I. Samajdar, P. Ratchev, B. Verbden, D. Schryver, Recrystallization and grain growth in a B2 iron aluminide alloy, Intermetallics, 6 (1998) 5, 419-425.

DOI: 10.1016/s0966-9795(97)00092-7

Google Scholar

[11] S. Gialanella et al., Microstructural and kinetic aspects of the transformations induced in a FeAl alloy by ball-milling and thermal treatments, Acta Materialia, 46 (1998) 9, 3305-3316.

DOI: 10.1016/s1359-6454(97)00484-9

Google Scholar

[12] I. Baker, P.R. Munroe, Mechanical properties of FeAl, Inter. Mater. Rev., 42 (1997) 5, 181-205.

Google Scholar

[13] P. Haušild, M. Karlík, V. Šíma, D.T.L. Alexander, Microstructure and mechanical properties of hot rolled Fe–40 at. % Al intermetallic alloys with Zr and B addition, Mater. Sci. Tech. Ser., 27 (2011) 9, 1448-1452.

DOI: 10.1179/026708310x12738371693012

Google Scholar

[14] I. Schindler, P. Kratochvíl, P. Prokopčáková, P. Kozelský, Forming of cast Fe – 45 at. % Al alloy with high content of carbon, Intermetallics, 18 (2010) 4, 745-747.

DOI: 10.1016/j.intermet.2009.11.005

Google Scholar

[15] V. Šíma, P. Kratochvíl, P. Kozelský, I. Schindler, P. Hána, FeAl-based alloys cast in an ultra-sound field, International Journal of Materials Research, 100 (2009) 3, 382-385.

DOI: 10.3139/146.110041

Google Scholar

[16] Y. Yang, I. Baker, Recrystallization of FeAl and Ni3Al with and without boron, Scripta Materialia, 34 (1996) 5, 803-807.

DOI: 10.1016/1359-6462(95)00588-9

Google Scholar
