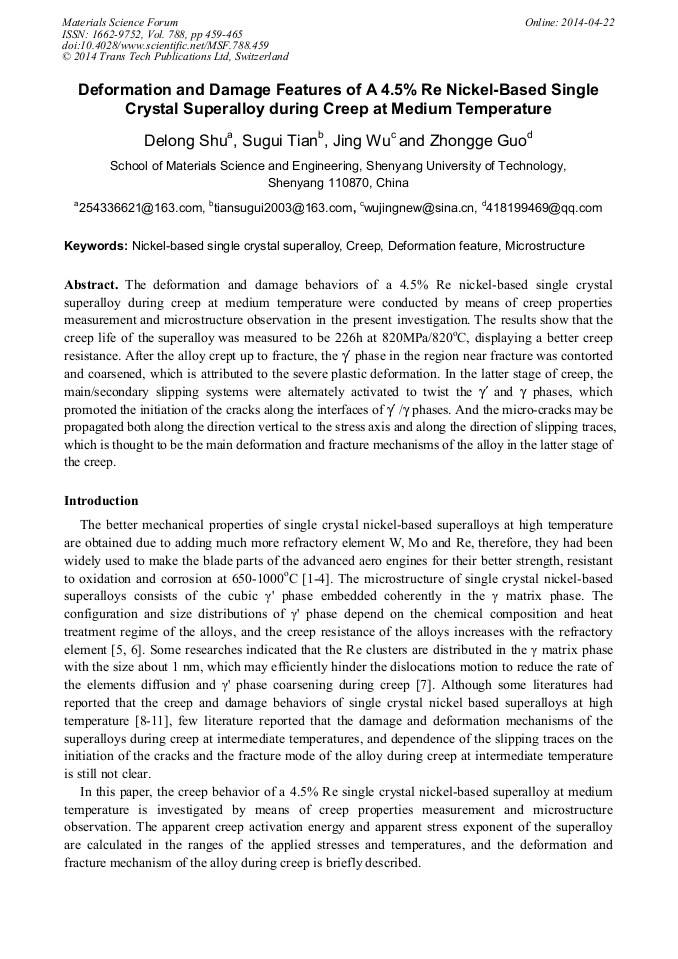

Deformation and Damage Features of a 4.5% Re Nickel-Based Single Crystal Superalloy during Creep at Medium Temperature

Abstract:

The deformation and damage behaviors of a 4.5% Re nickel-based single crystal superalloy during creep at medium temperature were conducted by means of creep properties measurement and microstructure observation in the present investigation. The results show that the creep life of the superalloy was measured to be 226h at 820MPa/820^oC, displaying a better creep resistance. After the alloy crept up to fracture, the γ′ phase in the region near fracture was contorted and coarsened, which is attributed to the severe plastic deformation. In the latter stage of creep, the main/secondary slipping systems were alternately activated to twist the γ′ and γ phases, which promoted the initiation of the cracks along the interfaces of γ′ /γ phases. And the micro-cracks may be propagated both along the direction vertical to the stress axis and along the direction of slipping traces, which is thought to be the main deformation and fracture mechanisms of the alloy in the latter stage of the creep.

• Periodical: Materials Science Forum (Volume 788)
• Pages: 459-465
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.788.459
• Online since: April 2014
• Authors: De Long Shu*, Su Gui Tian, Jing Wu, Zhong Ge Guo
• Keywords: Creep, Deformation Feature, Microstructure, Nickel-Based Single Crystal Superalloy

References

[1] H.Y. Wang, Y.Q. An, C.Y. Li, B. Chao, Y. Ni, G.B. Liu, P. Li, Research progress of Ni-based superalloys, Mater. Rev. 25(2011) 482-486.

[2] C.X. Shi, Z.Y. Zhong, Research and innovation of superalloy in China, Acta Metall. Sin. (China), 46(2010) 1281-1288.

[3] Y.R. Zheng, Development and application of low Cr and high W content cast niekel based superalloys in China, J. Aeronaut. Mater. 23(2003) 227-232.

[4] X.H. Yu, Y. Yamabe-Mitarai, Y. Ro, H. Harada, Design of quaternary Ir-Nb-Ni-Al refractory superalloys, Metall. Mater. Trans. A, 31 (2000) 173-181.

DOI: 10.1007/s11661-000-0063-9

[5] S.G. Tian, L.T. Zhang, J.H. Zhang, H.C. Yang, Y.B. Xu, Z.Q. Hu, Creep features and affection factors for single crystal nickel base superalloys, Chin. J. Nonferrous Met. 10(2000) 43-46.

[6] S.G. Tian, H.Q. Du, C.T. Wang, F.L. Meng, L. Shui, Z.Q. Hu, Influence of W Concentration on Microstructure and Properties of Single Crystal Nickel Base Superalloy, J. Aeronaut. Mater. 26(2006) 16-19.

[7] B.H. Ge, Y.S. Luo, J.R. Li, J. Zhu, Distribution of rhenium in a single crystal nickel-based superalloy, Scr. Mater. 63(2010) 969-972.

DOI: 10.1016/j.scriptamat.2010.07.019

[8] Y. Ltoh, M. Saitoh, Y. Lshiwata, Influence of high-temperature protective coatings on the mechanical properties of nickel-based superalloys, J. of Mater. Sci. (UK) 34 (1999) 3957-3966.

[9] A. Epishin, T. Link, H, Klingelhoeffer, B. Fedelich, P. Portella, Creep damage of single-crystal nickel base superalloys: mechanisms and effect on low cycle fatigue, Mater. High Temp. 27(2010) 53-59.

DOI: 10.3184/096034009x12603595726283

[10] Z. X. Wen, N. X. Hou, Z. X. Dou and Z. F. Yue, Fracture toughness analysis of anisotropic nickel-based single crystal superalloy at high temperature, J. Mater. Sci. 43 (2008), 5878-5883.

DOI: 10.1007/s10853-008-2866-9

[11] S.G. Tian, C.R. Chen, h.c. Yang, et al, Finite element analysis of driving force of γ'-phase directional coarsening for a single crystal nickel-based superalloy during high temperature creep, Acta Metall. Sin. 36 (2000) 465-471.

[12] Z. X. Wen, W. X. Gou, Z. F. Yue, Crack Propagation Paths and Fracture of Ni-Based Single Crystal, Rare Met. Mater. Eng. 36 (2007) 1549-1553.
